Open RegionYearModelModelCode Details
General 2015 RAV4 ASA42L-ANTXK
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: X TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 040 Trim Code: FB20 Production: 201212-201510 Model Short: ASA42L-ANTXK Region: OTHER Native Region: GR

Toyota RAV4 2015 — Heating & Air Conditioning - Compressor

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
88446-42030 BOLT, COOLER 2
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
88310-42380 COMPRESSOR ASSY, W/PULLEY 1
Note:ASA4# Production:2012-12 – 2015-10
12502-36010 BRACKET, COMPRESSOR MOUNTING, NO.1 1
Note:ASA4# Production:2012-12 – 2015-10
90119-08C78 standard —
90179-08025 standard —
91551-80825 standard —
90253-11021 standard —

Diagram

7 parts

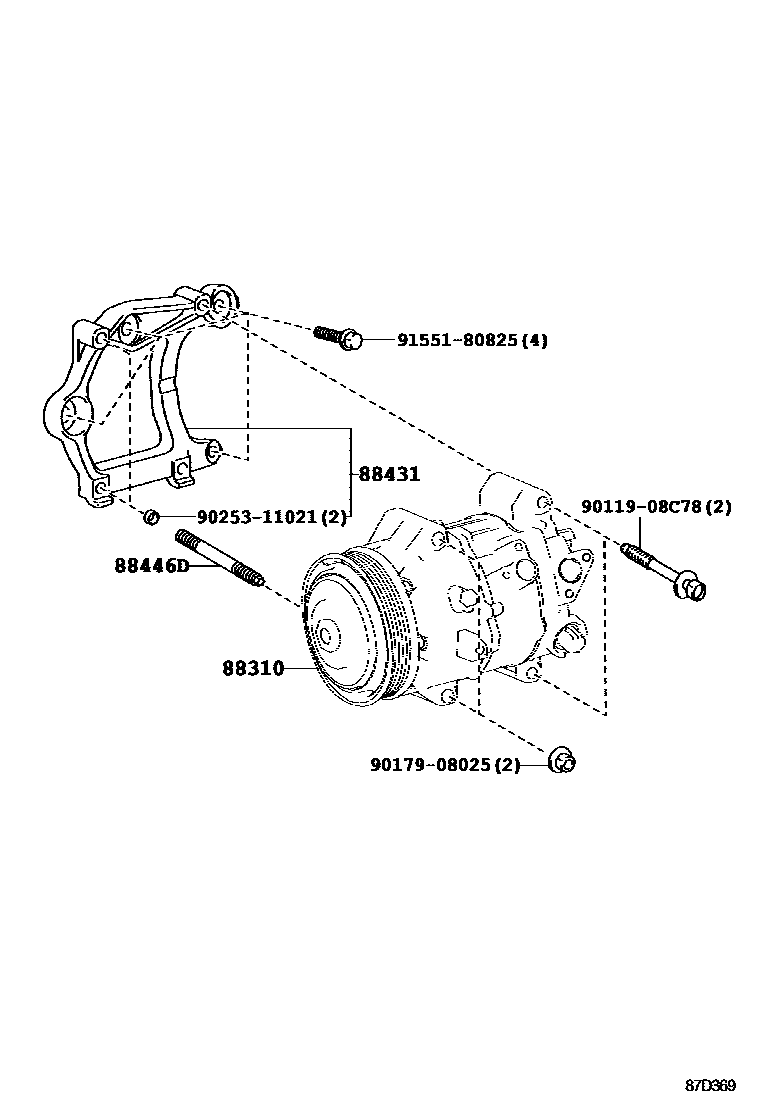

Toyota RAV4 2015 — Heating & Air Conditioning - Compressor
