General 2016 RAV4 ALA49L-ANTXY
Catalog: TOYOTA202608 Engine: 2200CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: X TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 209 Trim Code: FB20 Production: 201510-201810 Model Short: ALA49L-ANTXY Region: OTHER Native Region: GR

Toyota RAV4 2016 — Standard Tool

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
09150-42010 WRENCH, HUB NUT BOX 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
99915-10700 DRIVER, SCREW 1
Note:ALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN Production:2015-10 – 2018-10
51961-42040 HOOK ASSY, FRONT 2
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
99913-11500 PLIERS 1
Note:ALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN Production:2015-10 – 2018-10
09120-10040 BAG, TOOL 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
09113-42030 HANDLE, JACK 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
99914-10810 SPANNER 1
Note:ALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN Production:2015-10 – 2018-10 Spec:8 X 10
99914-11214 SPANNER 1
Note:ALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN Production:2015-10 – 2018-10 Spec:12 X 14
09111-0R030 JACK ASSY 1
Note:ALA49..X..DCR;ALA49..6FC..(G,M)..DCR Production:2016-05 – 2018-10
— Part does not apply to this vehicle configuration. 42606B —

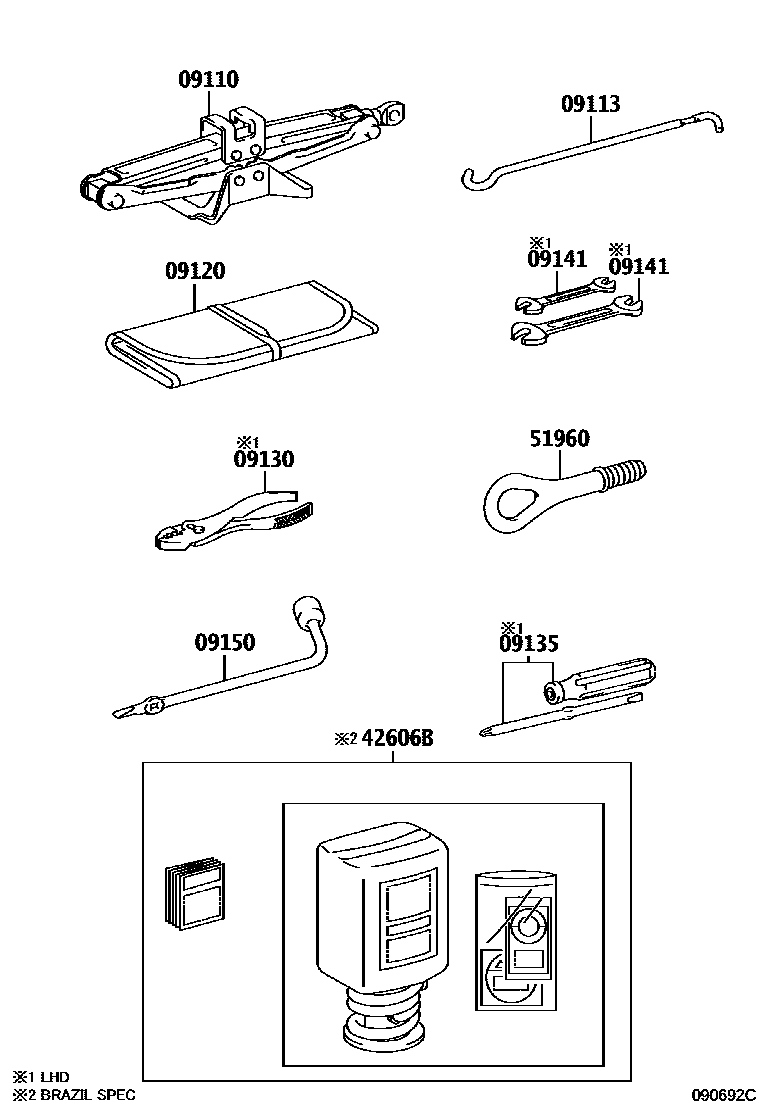

Diagram

9 parts
Toyota RAV4 2016 — Standard Tool
