Toyota RAV4 2016 — Injection Nozzle
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 11176-26020 | SEAT, INJECTION NOZZLE | 4 | |
Note:2AD#..ALA49 Production:2015-10 – 2018-10 | |||
| 23670-29126 | INJECTOR ASSY | 4 | |
Note:2AD#..ALA49 Production:2015-10 – 2018-10 | |||
| 23679-26020 | SCREW, INJECTOR FOLLOW | 4 | |
Note:2AD#..ALA49 Production:2015-10 – 2018-10 | |||
| — | Part does not apply to this vehicle configuration. | 23695B | — |
| 23695-0R021 | CLAMP, NOZZLE HOLDER, NO.1 | 4 | |
Note:2AD#..ALA49 Production:2015-10 – 2018-10 | |||
| 23699-0R021 | SEAT, NOZZLE HOLDER CLAMP | 4 | |
Note:2AD#..ALA49 Production:2015-10 – 2018-10 Replacements:23699-26021 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 23710B | — |
| — | Part does not apply to this vehicle configuration. | 23255B | — |
| 23761-0R040 | PIPE, NOZZLE LEAKAGE, NO.1 | 1 | |
Note:2AD#..ALA49 Production:2015-10 – 2018-10 Replacements:23761-26030 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 23761-26030 | PIPE, NOZZLE LEAKAGE, NO.1 | 1 | |
Note:2AD#..ALA49 Production:2015-10 – 2018-10 Spec:(J) Spec Note:(Japan made) | |||
| 90904-30008 | GASKET | 4 | |
Note:2AD#..ALA49 Production:2015-10 – 2018-10 | |||
| 90105-W0125 | standard | — | |
Replacements:91551-80890 (fitment: unknown) | |||
| 90119-W0024 | standard | — | |
Replacements:91671-80830 (fitment: unknown) | |||
| 90105-W0140 | standard | — | |
Replacements:91551-80835 (fitment: unknown) | |||
| 90209-10021 | standard | — | |
| 90430-08017 | standard | — | |
| 96721-19017 | standard | — | |

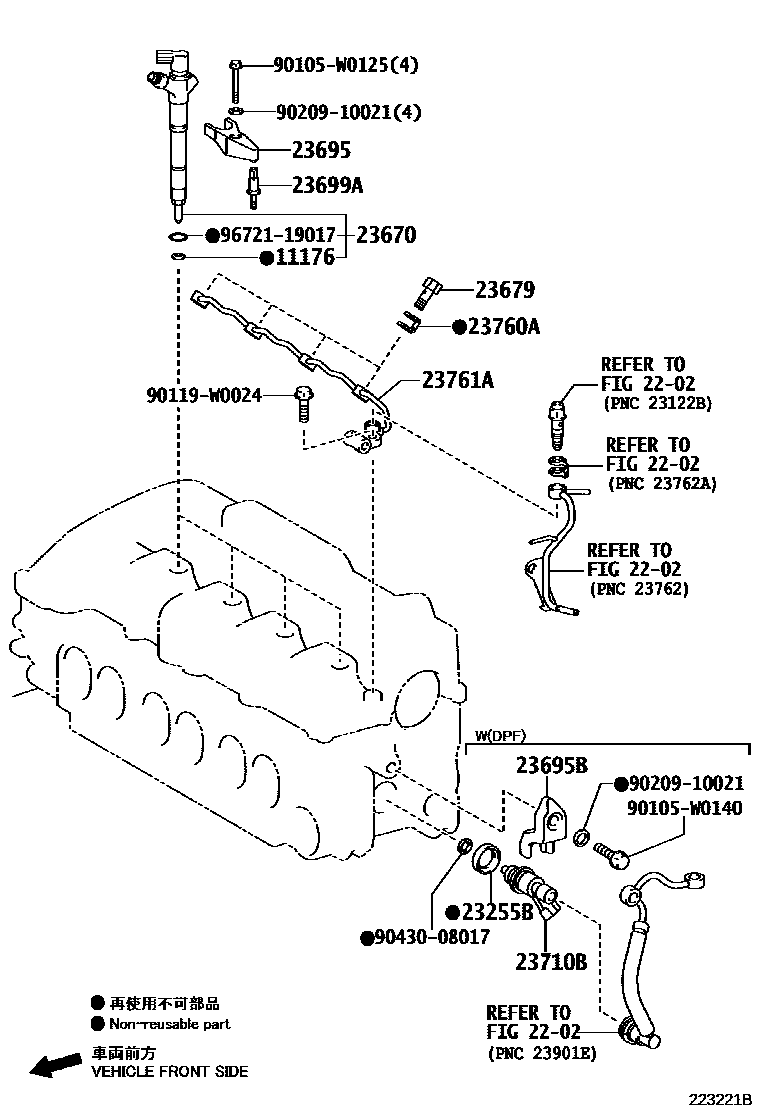

Diagram
14 parts
