Open RegionYearModelModelCode Details
General 2016 RAV4 ALA49L-ANTXY
Catalog: TOYOTA202608 Engine: 2200CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: X TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 209 Trim Code: FB20 Production: 201510-201810 Model Short: ALA49L-ANTXY Region: OTHER Native Region: GR

Toyota RAV4 2016 — Ignition Coil & Spark Plug / Glow Plug

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90189-04024 GROMMET, SCREW(FOR GLOW PLUG) 4
Note:2AD#..ALA49 Production:2015-10 – 2018-10
19871-26010 CONNECTOR, GLOW PLUG NO.1 1
Note:2AD#..ALA49 Production:2015-10 – 2018-10
19850-26022 PLUG ASSY, GLOW 4
Note:2AD#..ALA49 Production:2015-10 – 2018-10 Spec:*BV-GV=12V-11V
90170-04002 standard —
90467-05149 standard —
94151-80600 standard —

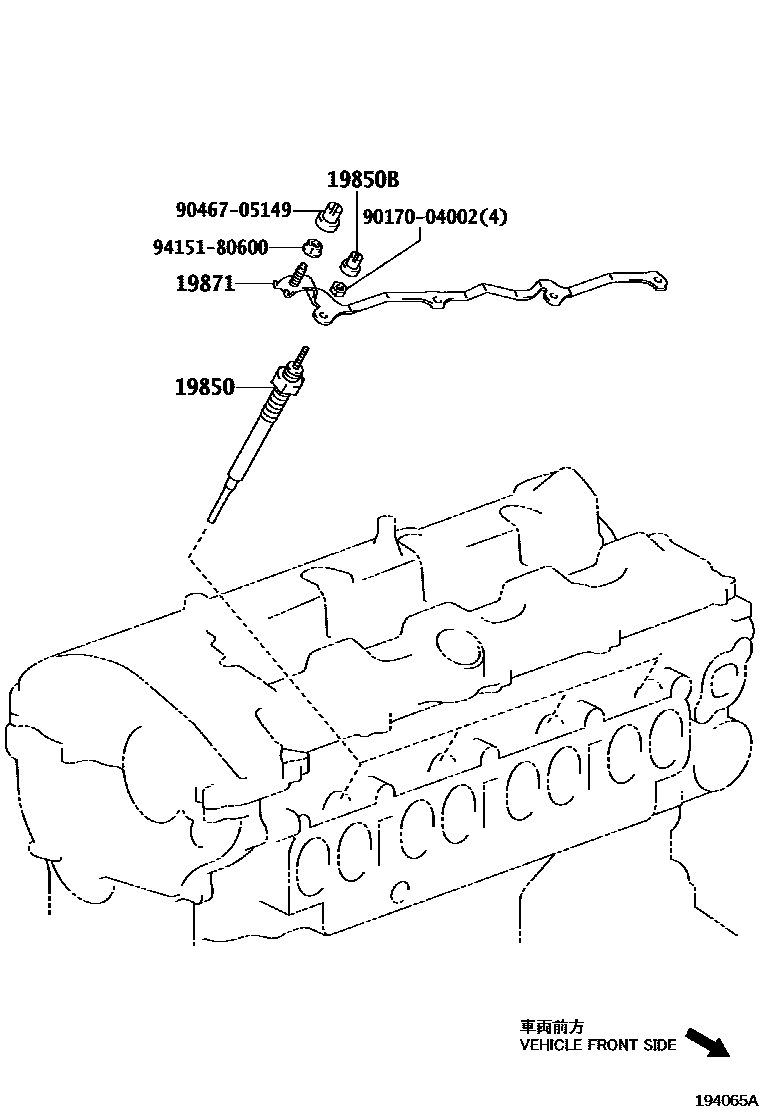

Diagram

6 parts
Toyota RAV4 2016 — Ignition Coil & Spark Plug / Glow Plug
