General 2016 RAV4 ALA49L-ANTXY
Catalog: TOYOTA202608 Engine: 2200CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: X TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 209 Trim Code: FB20 Production: 201510-201810 Model Short: ALA49L-ANTXY Region: OTHER Native Region: GR

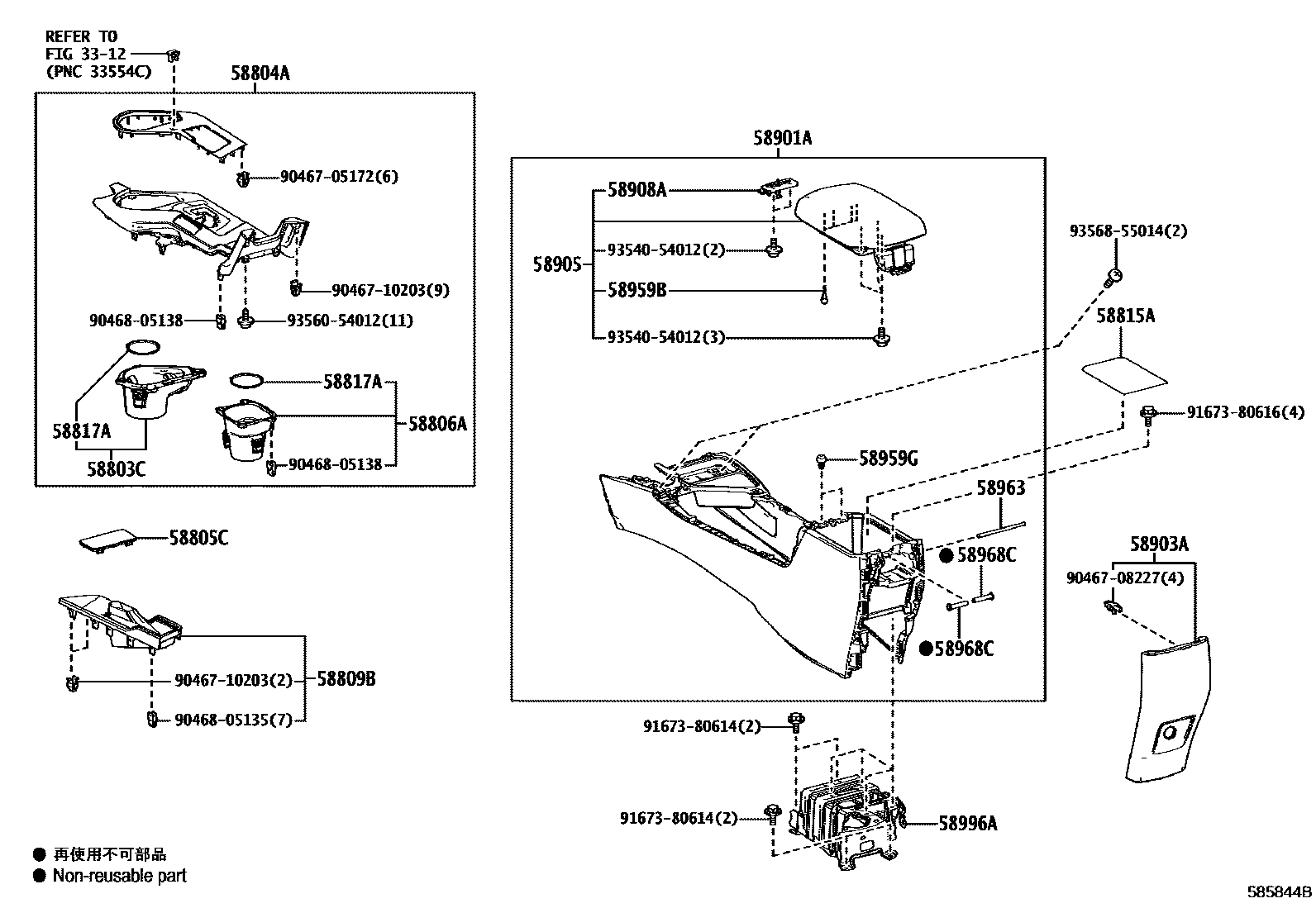

Toyota RAV4 2016 — Console Box & Bracket

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
58803-42010-C0 BOX SUB-ASSY, CONSOLE CUP HOLDER 1
Note:ALA49..X..GEN Production:2015-10 – 2018-10 Spec:BLACK,TRIM2#,4#
58804-42220-B2 PANEL SUB-ASSY, CONSOLE, UPPER 1
Note:ALA49..6FC..X..GEN Production:2015-10 – 2018-10 Spec:SILVER,TRIM2#,4#
58805-42070-C0 PANEL SUB-ASSY, CONSOLE, UPPER REAR 1
Note:ALA49..X Production:2015-10 – 2018-10 Spec:BLACK,TRIM2#,4#
58806-42010-C0 POCKET SUB-ASSY, CONSOLE BOX 1
Note:ALA49..X..GEN Production:2015-10 – 2018-10 Spec:BLACK,TRIM2#,4#
58809-42011-C1 COVER SUB-ASSY, PARKING BRAKE HOLE 1
Note:ALA49..X..GEN Production:2015-10 – 2018-10 Spec:BLACK,TRIM2#,4#
58815-42030 CARPET, CONSOLE BOX 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
58817-42010 INSERT, CONSOLE BOX, FRONT NO.2 2
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
58901-42230-C0 BOX SUB-ASSY, CONSOLE, REAR 1
Note:ALA49..6FC..X..GEN Production:2015-10 – 2018-10 Spec:BLACK,TRIM2#,4#
58903-42030-C0 PANEL SUB-ASSY, CONSOLE REAR END 1
Note:ALA49..X Production:2015-10 – 2018-10 Spec:BLACK,TRIM2#,4#
58905-42070-C0 DOOR SUB-ASSY, CONSOLE COMPARTMENT 1
Note:ALA49..6FC..X Production:2015-10 – 2018-10 Spec:BLACK,TRIM2#,4#
58908-42020 LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
58959-42020 CUSHION, CONSOLE COMPARTMENT DOOR 4
Note:ALA49..X Production:2015-10 – 2018-10
58963-47010 SHAFT, CONSOLE COMPARTMENT DOOR HINGE 1
Note:ALA49..X Production:2015-10 – 2018-10
58968-42030 SHIM, CONSOLE COMPARTMENT DOOR STOPPER 2
Note:ALA49..X Production:2015-10 – 2018-10
58959-35010 CUSHION, CONSOLE COMPARTMENT DOOR 2
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
58996-42070 BRACKET, CONSOLE BOX MOUNTING, NO.2 1
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10
90467-05172 standard —
90467-08227 standard —
90467-10203 standard —
90468-05135 standard —
90468-05138 standard —
91673-80614 standard —
91673-80616 standard —
93540-54012 standard —
93560-54012 standard —
93568-55014 standard —
