Open RegionYearModelModelCode Details
General 2021 GRNVA HIACE MJSTY GDH322L-EDFPYV
Catalog: TOYOTA202608 Engine: 2800CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Doors Description: 4-DOOR Color Code: 058 Trim Code: FA11 Production: 201903-999999 Model Short: GDH322L-EDFPYV Region: OTHER Native Region: GR

Toyota Grnva-Hiace-Mjsty 2021 — Windshield Wiper

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85110-26290 MOTOR ASSY, WINDSHIELD WIPER 1
Note:GDH320..LHD..6F..GEN;GDH320,328..D..(AGT,BZ,GCC,VN);GDH306,320..LHD..(PSOB,SG)..6FC..(D,J)..GEN;GDH300,301,303,304,322,328,GRH300,301,303,32#..LHD..(AGT,GCC,GEN,PH) Production:2019-02 – …
85150-26170 LINK ASSY, WINDSHIELD WIPER 1
Note:GDH320..LHD..6F..GEN;GDH320,328..D..(AGT,BZ,GCC,VN);GDH306,320..LHD..(PSOB,SG)..6FC..(D,J)..GEN;GDH300,301,303,304,322,328,GRH300,301,303,32#..LHD..(AGT,GCC,GEN,PH) Production:2019-02 – …
85292-13010 COVER, WINDSHIELD WIPER ARM 2
Note:GDH306,321..RHD;GDH300..SG..6FC;GDH320..RHD..SP;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH322..LHD..SG..(P,Q)..GEN;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH303,304,328,GRH301,304,322..GCC,GEN,PH,TH;GDH301,GRH300,303,320,321..HPSOB,PSOB,SG,SHP,SP;GDH300,306,328..LHD..(SG,SP)..(D,J)..(BZ,GEN,VN);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH) Production:2019-02 – …
85211-26130 ARM, FRONT WIPER, RH 1
Note:GDH320..LHD..6F..GEN;GDH320,328..D..(AGT,BZ,GCC,VN);GDH306,320..LHD..(PSOB,SG)..6FC..(D,J)..GEN;GDH300,301,303,304,322,328,GRH300,301,303,32#..LHD..(AGT,GCC,GEN,PH) Production:2019-02 – …
85221-26120 ARM, FRONT WIPER, LH 1
Note:GDH320..LHD..6F..GEN;GDH320,328..D..(AGT,BZ,GCC,VN);GDH306,320..LHD..(PSOB,SG)..6FC..(D,J)..GEN;GDH300,301,303,304,322,328,GRH300,301,303,32#..LHD..(AGT,GCC,GEN,PH) Production:2019-02 – …
— Part does not apply to this vehicle configuration. 89941 —
— Part does not apply to this vehicle configuration. 89943 —
— Part does not apply to this vehicle configuration. 89944 —
85212-26150 BLADE, FR WIPER, RH 1
Note:GDH320..LHD..6F..GEN;GDH320,328..D..(AGT,BZ,GCC,VN);GDH306,320..LHD..(PSOB,SG)..6FC..(D,J)..GEN;GDH300,301,303,304,322,328,GRH300,301,303,32#..LHD..(AGT,GCC,GEN,PH) Production:2019-02 – …
85214-60120 RUBBER, WIPER, RH 1
Note:GDH320..LHD..6F..GEN;GDH320,328..D..(AGT,BZ,GCC,VN);GDH306,320..LHD..(PSOB,SG)..6FC..(D,J)..GEN;GDH300,301,303,304,322,328,GRH300,301,303,32#..LHD..(AGT,GCC,GEN,PH) Production:2019-02 – …
85214-30380 RUBBER, WIPER, LH 1
Note:GDH320..LHD..6F..GEN;GDH320,328..D..(AGT,BZ,GCC,VN);GDH306,320..LHD..(PSOB,SG)..6FC..(D,J)..GEN;GDH300,301,303,304,322,328,GRH300,301,303,32#..LHD..(AGT,GCC,GEN,PH) Production:2019-02 – …
85222-26130 BLADE, FR WIPER, LH 1
Note:GDH320..LHD..6F..GEN;GDH320,328..D..(AGT,BZ,GCC,VN);GDH306,320..LHD..(PSOB,SG)..6FC..(D,J)..GEN;GDH300,301,303,304,322,328,GRH300,301,303,32#..LHD..(AGT,GCC,GEN,PH) Production:2019-02 – …
90119-06864 standard —
90182-10006 standard —
90182-T0029 standard —
Replacements:90182-10006 (fitment: unknown)

Diagram

12 parts

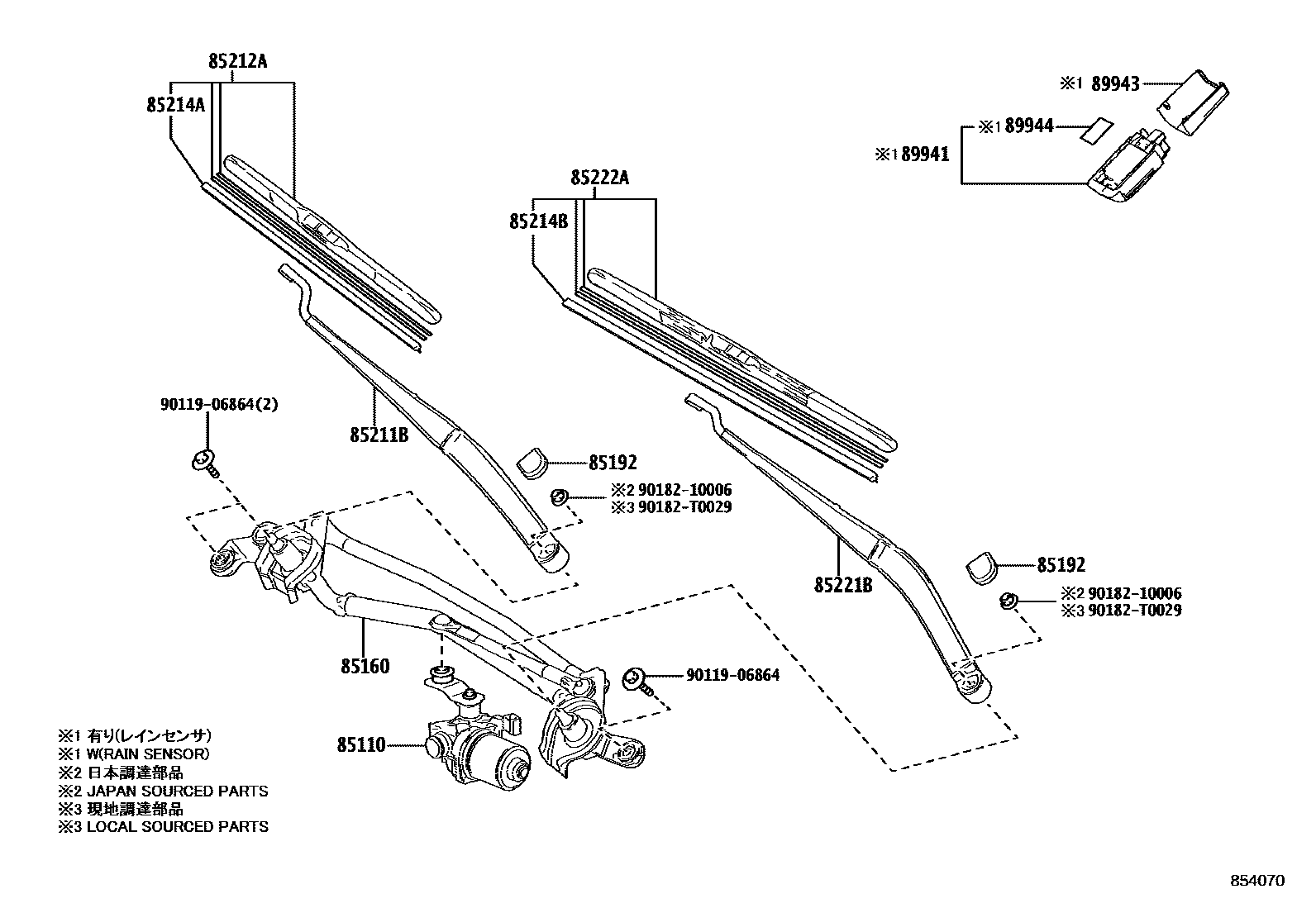

Toyota Grnva-Hiace-Mjsty 2021 — Windshield Wiper
