Toyota Prius 2018 — Mirror
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 87810-0WQ40 | MIRROR ASSY, INNER REAR VIEW | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| — | Part does not apply to this vehicle configuration. | 87834 | — |
| 87946-47370 | RETRACTOR, OUTER MIRROR, RH | 1 | |
Note:ZVW50..RHD Production:2015-11 – 2018-12 | |||
| 87966-47360 | RETRACTOR, OUTER MIRROR, LH | 1 | |
Note:ZVW50..RHD Production:2015-11 – 2018-12 | |||
| 87915-47070-A0 | COVER, OUTER MIRROR, RH | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:SUPER WHITE 2,040 | |||
| 87945-47060-A0 | COVER, OUTER MIRROR, LH | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:SUPER WHITE 2,040 | |||
| 8791B-47360 | COVER, OUTER MIRROR, RH NO.2 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:PLATED | |||
| 8794B-47250 | COVER, OUTER MIRROR, LH NO.2 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:PLATED | |||
| 87939-47360 | COVER, OUTER MIRROR HOLE, RH | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 87948-47250 | COVER, OUTER MIRROR HOLE, LH | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 87931-47450 | OUTER MIRROR, RH | 1 | |
Note:ZVW50..RHD Production:2015-11 – 2018-12 | |||
| 87961-47440 | MIRROR OUTER, LH | 1 | |
Note:ZVW50..RHD Production:2015-11 – 2018-12 | |||
| 87910-47450 | MIRROR ASSY, OUTER REAR VIEW, RH | 1 | |
Note:ZVW50..RHD Production:2015-11 – 2018-12 Spec:PLATED | |||
| 87940-47440 | MIRROR ASSY, OUTER REAR VIEW, LH | 1 | |
Note:ZVW50..RHD Production:2015-11 – 2018-12 Spec:PLATED | |||
| — | Part does not apply to this vehicle configuration. | 87915A | — |
| — | Part does not apply to this vehicle configuration. | 87945B | — |
| 87939-47370 | COVER, OUTER MIRROR, LOWER RH | 1 | |
Note:ZVW50..RHD Production:2015-11 – 2018-12 | |||
| 87948-47360 | COVER, OUTER MIRROR, LOWER LH | 1 | |
Note:ZVW50..RHD Production:2015-11 – 2018-12 | |||
| 90179-06146 | standard | — | |

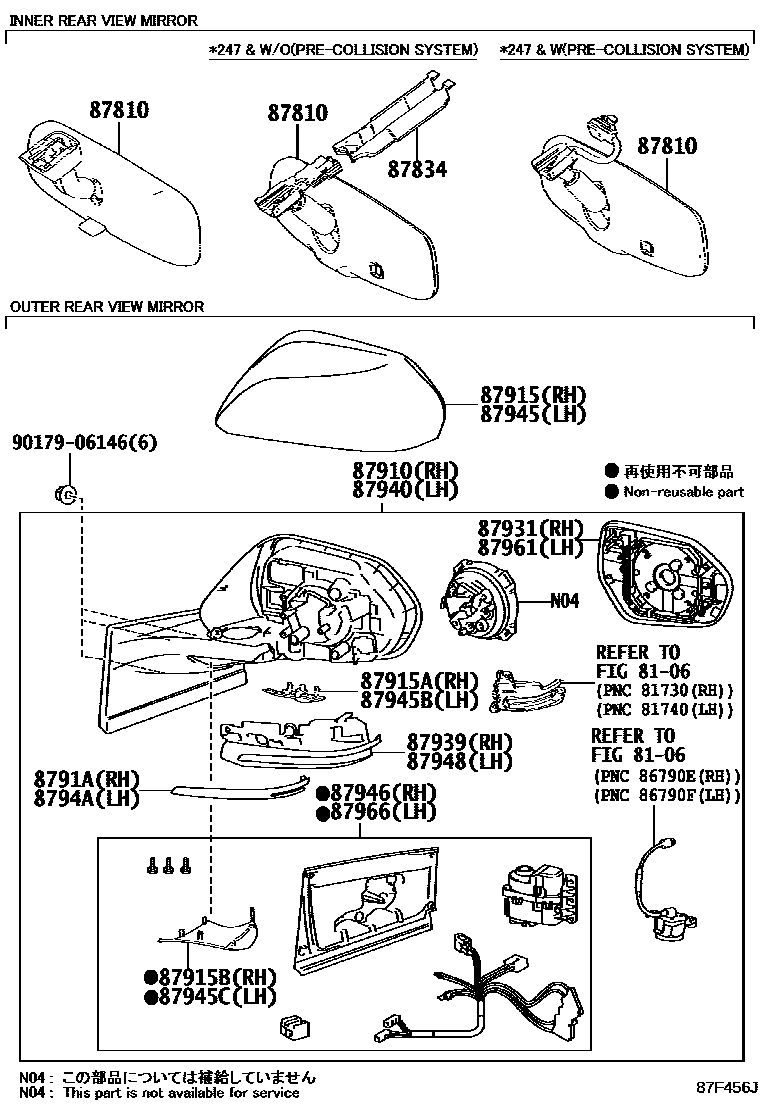

Diagram
16 parts
