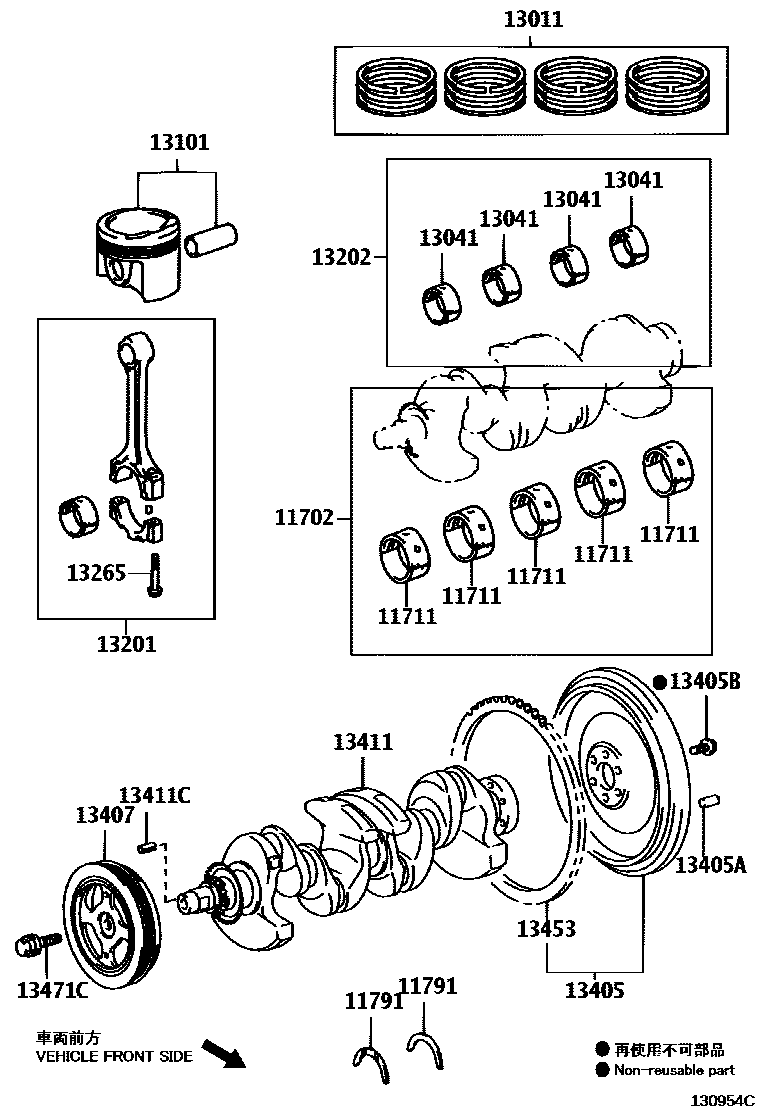

Toyota Yaris 2011 — Crankshaft & Piston
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 13101-21070 | PISTON SUB-ASSY, W/PIN | 4 | |
Note:1NZFE..NCP93 Production:2008-08 – 2012-10 Replacements:13101-21160 (fitment: unknown) Spec:STD | |||
| 13011-21041 | RING SET, PISTON | 1 | |
Note:1NZFE..NCP93 Production:2008-08 – 2012-10 Replacements:13011-21120 (fitment: unknown) Spec:STD | |||
| 13041-21022-01 | BEARING, CONNECTING ROD | 4 | |
Note:1NZFE..NCP93 Production:2008-08 – 2013-08 Replacements:13041-21023-01 (fitment: unknown) Spec:MARK1,REFER REPAIR MANUAL | |||
| 13041-21022-02 | BEARING, CONNECTING ROD | 4 | |
Note:1NZFE..NCP93 Production:2008-08 – 2013-08 Replacements:13041-21023-02 (fitment: unknown) Spec:MARK2,REFER REPAIR MANUAL | |||
| 13041-21022-03 | BEARING, CONNECTING ROD | 4 | |
Note:1NZFE..NCP93 Production:2008-08 – 2013-08 Replacements:13041-21023-03 (fitment: unknown) Spec:MARK3,REFER REPAIR MANUAL | |||
| 13204-21022 | BEARING SET, CONNECTING ROD | 1 | |
Note:1NZFE..NCP93 Production:2008-08 – 2013-08 Replacements:13204-21023 (fitment: unknown) Spec:U/S 0.25 | |||
| 11701-21031-01 | BEARING, CRANKSHAFT | 5 | |
Note:1NZFE..NCP93 Production:2008-08 – 2013-08 Replacements:11701-21032-01 (fitment: unknown) Spec:MARK1,REFER REPAIR MANUAL | |||
| 11701-21031-02 | BEARING, CRANKSHAFT | 5 | |
Note:1NZFE..NCP93 Production:2008-08 – 2013-08 Replacements:11701-21032-02 (fitment: unknown) Spec:MARK2,REFER REPAIR MANUAL | |||
| 11701-21031-03 | BEARING, CRANKSHAFT | 5 | |
Note:1NZFE..NCP93 Production:2008-08 – 2013-08 Replacements:11701-21032-03 (fitment: unknown) Spec:MARK3,REFER REPAIR MANUAL | |||
| 11701-21031-04 | BEARING, CRANKSHAFT | 5 | |
Note:1NZFE..NCP93 Production:2008-08 – 2013-08 Replacements:11701-21032-04 (fitment: unknown) Spec:MARK4,REFER REPAIR MANUAL | |||
| 11704-21031 | BEARING SET, CRANKSHAFT | 1 | |
Note:1NZFE..NCP93 Production:2008-08 – 2013-08 Replacements:11704-21032 (fitment: unknown) Spec:U/S 0.25 | |||
| 13401-21020 | CRANKSHAFT | 1 | |
Note:1NZFE..NCP93 Production:2008-08 – … | |||
| 11792-22020 | WASHER, CRANKSHAFT THRUST, UPPER | 2 | |
Note:1NZFE..NCP93 Production:2008-08 – 2013-10 Spec:O/S 0.125 | |||
| 11793-22020 | WASHER, CRANKSHAFT THRUST, UPPER | 2 | |
Note:1NZFE..NCP93 Production:2008-08 – 2013-10 Spec:O/S 0.25 | |||
| 11791-37010 | WASHER, CRANKSHAFT THRUST, UPPER | 2 | |
Note:1NZFE..NCP93 Production:2008-08 – … Spec:STD | |||
| — | Part does not apply to this vehicle configuration. | 13405B | — |
| — | Part does not apply to this vehicle configuration. | 13405A | — |
| — | Part does not apply to this vehicle configuration. | 13453 | — |
| — | Part does not apply to this vehicle configuration. | 13405 | — |
| 90119-12345 | BOLT(FOR CRANKSHAFT PULLEY SET) | 1 | |
Note:1NZFE..NCP93 Production:2008-08 – … | |||
| 13407-21031 | DAMPER SUB-ASSY, CRANKSHAFT | 1 | |
Note:1NZFE..NCP93 Production:2008-08 – 2012-05 Replacements:13407-21032 (fitment: unknown) | |||
| 90254-03025 | PIN, STRAIGHT(FOR CRANKSHAFT) | 1 | |
Note:1NZFE..NCP93 Production:2008-08 – 2016-04 Replacements:90250-03095 (fitment: unknown) | |||
| 13201-29735 | ROD SUB-ASSY, CONNECTING | 4 | |
Note:1NZFE..NCP93 Production:2008-08 – 2013-08 Replacements:13201-29736 (fitment: unknown) | |||
| 13265-21020 | BOLT, CONNECTING ROD | 8 | |
Note:1NZFE..NCP93 Production:2008-08 – … | |||
Diagram
20 parts
