Toyota Yaris 2011 — Windshield Washer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 85321-30080 | VALVE SUB-ASSY, WASHER | 1 | |
Note:NCP93 Production:2008-08 – … | |||
| 85381-52250 | NOZZLE SUB-ASSY, WASHER | 2 | |
Note:NCP93 Production:2008-08 – … Spec:TYPE A:REFER ILLUST. | |||
| 85381-52280 | NOZZLE SUB-ASSY, WASHER | 2 | |
Note:NCP93 Production:2008-08 – … Spec:TYPE B:REFER ILLUST. | |||
| 85381-52290 | NOZZLE SUB-ASSY, WASHER | 2 | |
Note:NCP93 Production:2008-08 – … Spec:TYPE C:REFER ILLUST. | |||
| 85381-52300 | NOZZLE SUB-ASSY, WASHER | 2 | |
Note:NCP93 Production:2008-08 – … Spec:TYPE D:REFER ILLUST. | |||
| 85381-52310 | NOZZLE SUB-ASSY, WASHER | 2 | |
Note:NCP93 Production:2008-08 – … Spec:TYPE E:REFER ILLUST. | |||
| 85330-60190 | MOTOR AND PUMP ASSY, WINDSHIELD WASHER | 1 | |
Note:NCP93 Production:2008-08 – … | |||
| 85315-52210 | JAR ASSY, WINDSHIELD WASHER | 1 | |
Note:NCP93..USA Production:2008-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 85397 | — |
| 90099-33080 | HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | 1 | |
Note:NCP93..USA Production:2009-08 – … Spec:L=1450(*H,L=810) | |||
| 90099-33080 | HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | 1 | |
Note:NCP93 Production:2008-08 – … Spec:L=1450(*H,L=540) | |||
| 90099-33080 | HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | 1 | |
Note:NCP93 Production:2008-08 – … Spec:L=1450(*H,L=320),NO.1,NO.2 | |||
| 85349-89122 | JOINT, WINDSHIELD WASHER HOSE, NO.2 | 1 | |
Note:NCP93 Production:2008-08 – … | |||
| 85336-12230 | JOINT, WINDSHIELD WASHER ELBOW, NO.1 | 1 | |
Note:NCP93 Production:2008-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 85319D | — |
| 85316-52190 | CAP, WINDSHIELD WASHER JAR | 1 | |
Note:NCP93..USA Production:2008-08 – … | |||
| 85336-60300 | PROTECTOR, WASHER JAR | 1 | |
Note:NCP93 Production:2008-08 – … | |||
| 85385-52390 | JOINT, WINDSHIELD WASHER HOSE, NO.1 | 1 | |
Note:NCP93 Production:2008-08 – … | |||
| 90119-06767 | standard | — | |
| 85371-52060 | standard | — | |

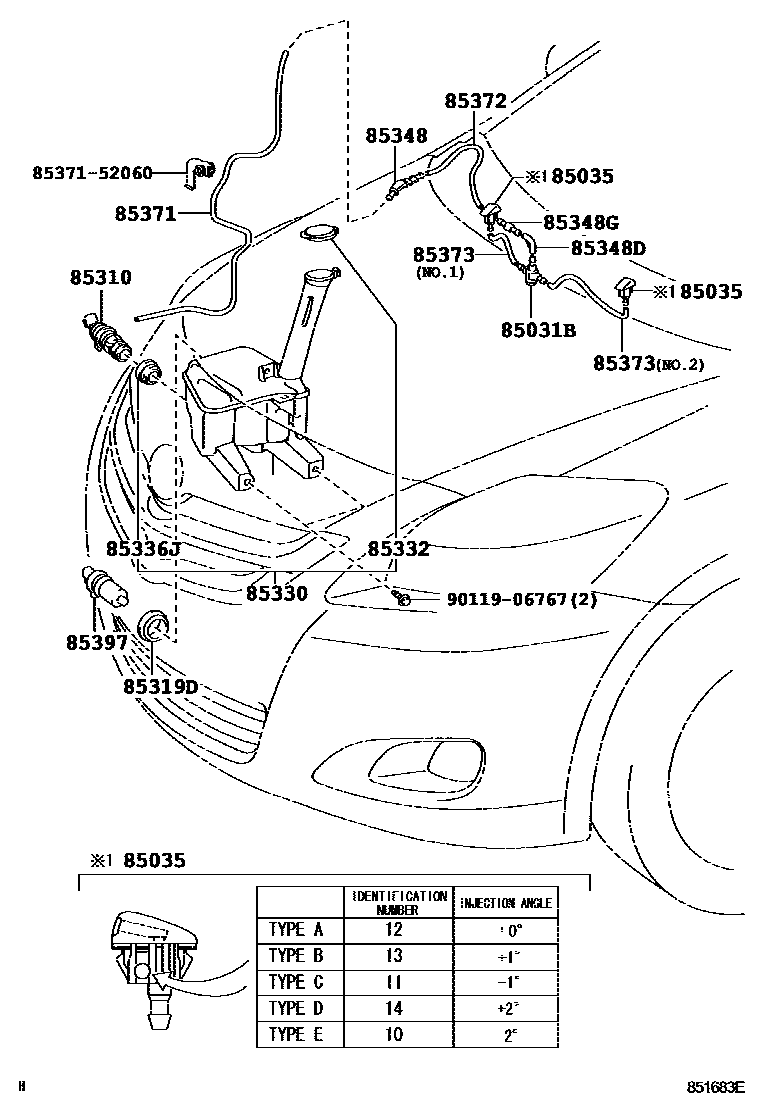

Diagram
18 parts
