General 2007 COROLLA SED WG NZE141R-AEPDK
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Vehicle Grade: LX TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 1G3 Trim Code: FC16 Production: 200708-201007 Model Short: NZE141R-AEPDK Region: OTHER Native Region: GR

Toyota COROLLA-SED-WG 2007 — Ventilation Hose

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
12262-21100 HOSE, VENTILATION, NO.2 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
16581-21050 CLIP(FOR VENTILATION HOSE NO.2) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90467-21004 CLIP(FOR VENTILATION HOSE NO.2) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90467-24038 CLIP OR CLAMP(FOR VENTILATION HOSE) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2009-08 Spec:NO.2 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90467-15120 CLIP OR CLAMP(FOR VENTILATION HOSE) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Spec:NO.1 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
12261-21030 HOSE, VENTILATION 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
12204-21011 VALVE SUB-ASSY, VENTILATION 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2008-06 Spec:MARK 12204-21011 Rev.ref.no From:0003 Rev.ref.no To:0004 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010

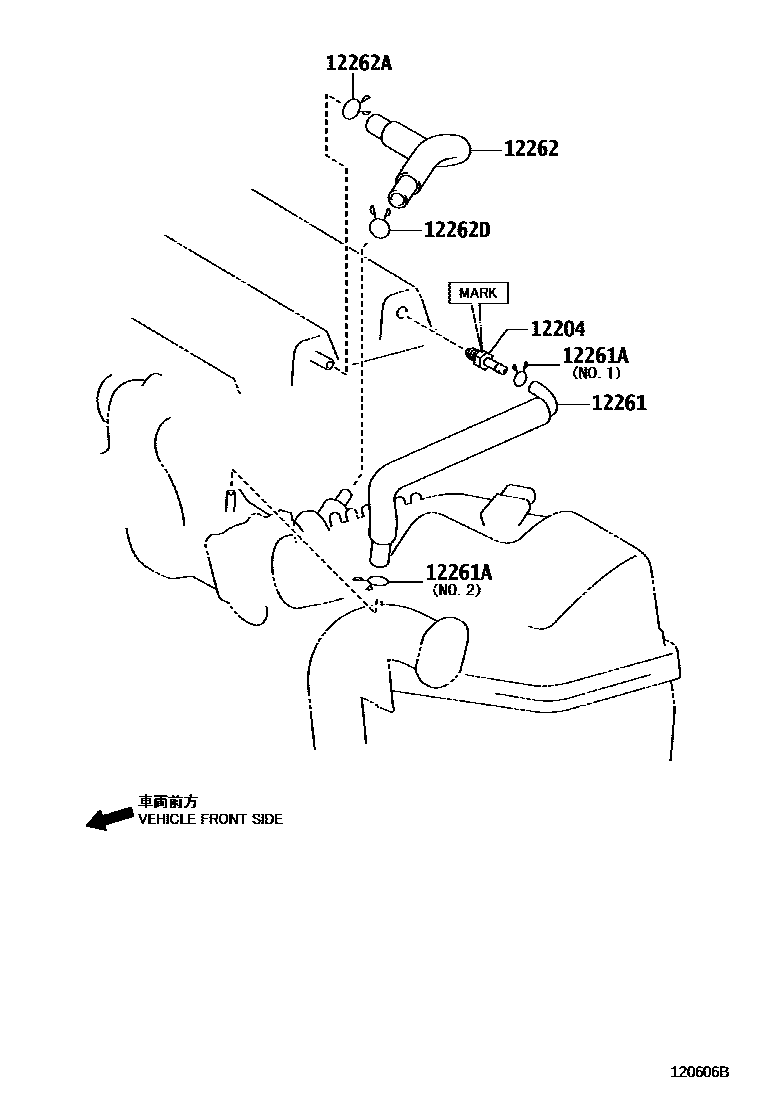

Diagram

7 parts
Toyota COROLLA-SED-WG 2007 — Ventilation Hose
