Open RegionYearModelModelCode Details
General 2007 COROLLA SED WG NZE141R-AEPDK
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Vehicle Grade: LX TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 1G3 Trim Code: FC16 Production: 200708-201007 Model Short: NZE141R-AEPDK Region: OTHER Native Region: GR

Toyota COROLLA-SED-WG 2007 — Mounting

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
12311-21090 BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
12351-22080 DAMPER, ENGINE MOUNTING 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
12325-21250 BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
12351-22060 DAMPER, ENGINE MOUNTING(FOR INSULATOR) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
12361-21140 INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
12321-21210 BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-01 Replacements:12321-21230 (fitment: unknown) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
12351-26010 DAMPER, ENGINE MOUNTING 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
12371-21290 INSULATOR, ENGINE MOUNTING, REAR 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
12315-21041 BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2009-08 Replacements:12315-21042 (fitment: unknown) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
43409-52020 INSULATOR SUB-ASSY, DRIVE SHAFT HEAT 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
12305-21320 INSULATOR SUB-ASSY, ENGINE MOUNTING, RH 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
12372-21250 INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) 1
Note:1NZFE..NZE141..4FC Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90179-08068 standard —
90119-10866 standard —
90105-12339 standard —
90105-10301 standard —
94151-21241 standard —
90105-12153 standard —
90119-10904 standard —
90178-10029 standard —
94151-80800 standard —
90105-10444 standard —
90105-10469 standard —
90116-10229 standard —
90179-10108 standard —
90126-08037 standard —
90179-08256 standard —
91671-80818 standard —
90179-10176 standard —
90105-10494 standard —
90105-10550 standard —

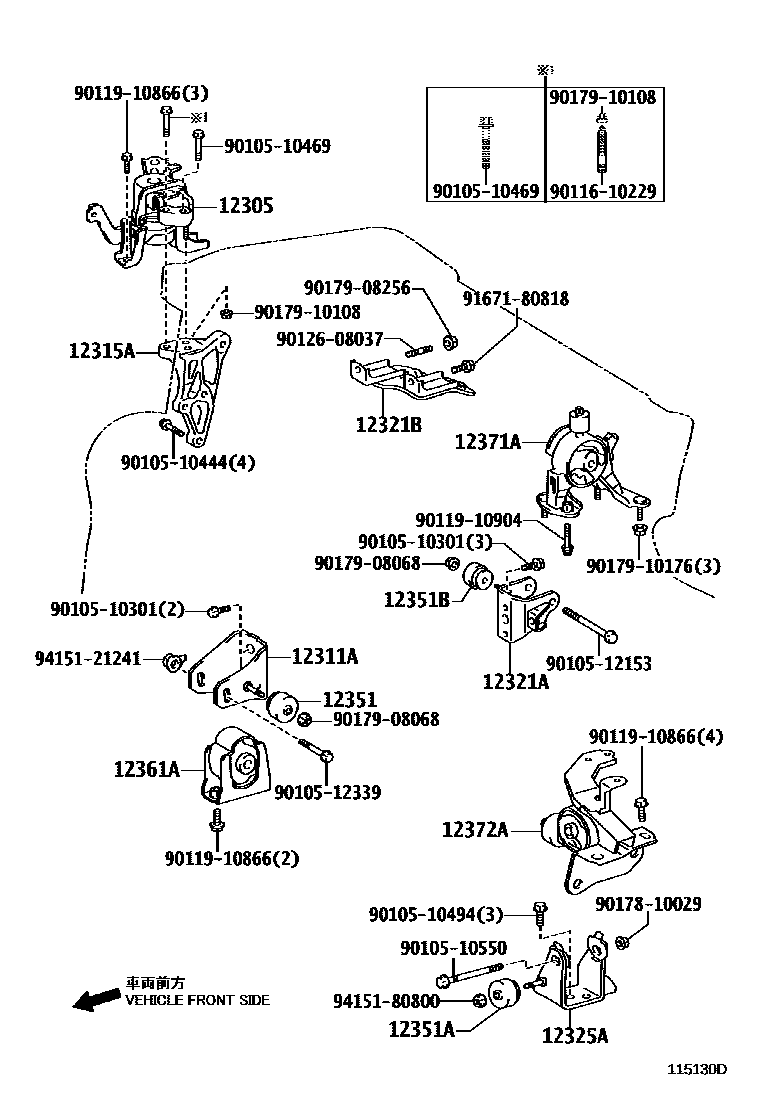

Diagram

31 parts
Toyota COROLLA-SED-WG 2007 — Mounting
