Toyota COROLLA-SED-WG 2007 — Console Box & Bracket
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 58808 | — |
| 58815-12120 | CARPET, CONSOLE BOX | 1 | |
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 58905-12670-B1 | DOOR SUB-ASSY, CONSOLE COMPARTMENT | 1 | |
Note:ZZE141..XLI;CE140,NZE141,ZZE142..(LX,XLI)..GEN Production:2007-08 – 2010-07 Spec:CONSOLE BOX-FABRIC&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1# | |||
| 58907-12100 | HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | 1 | |
Note:CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 58908-33030 | LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | 1 | |
Note:CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 58910-12401-B1 | BOX ASSY, CONSOLE, REAR | 1 | |
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Spec:GRAY,TRIM1# Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 58959-60060 | CUSHION, CONSOLE COMPARTMENT DOOR | 2 | |
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 58996-12160 | BRACKET, CONSOLE BOX MOUNTING, NO.2 | 1 | |
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 55420-12400 | PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | 1 | |
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 58843-12160 | BEZEL, SHIFTING HOLE | 1 | |
Note:NZE141..4FC;ZZE142..LHD..4FC..GEN Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 58804-12050-B2 | PANEL SUB-ASSY, CONSOLE, UPPER | 1 | |
Note:CE140,NZE141,ZZE14#..RHD..SED Production:2007-08 – 2010-07 Spec:GRAY,TRIM1# Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010 | |||
| 58959-12040 | CUSHION, CONSOLE COMPARTMENT DOOR | 4 | |
Note:CE140,NZE141..RHD..SED Production:2007-08 – 2010-07 | |||
| 55419-32020 | CUSHION, REAR CONSOLE BOX | 1 | |
Note:ZZE141..XLI;CE140,NZE141,ZZE142..(LX,XLI)..GEN Production:2007-08 – 2008-06 Spec:CONSOLE BOX-FABRIC&SEAT COVER MATERIAL-FABRIC | |||
| 90119-06077 | standard | — | |
| 91673-A0816 | standard | — | |
| 93560-54012 | standard | — | |
| 93568-55014 | standard | — | |
| 90467-10203 | standard | — | |
| 90468-05135 | standard | — | |
| 91673-80616 | standard | — | |

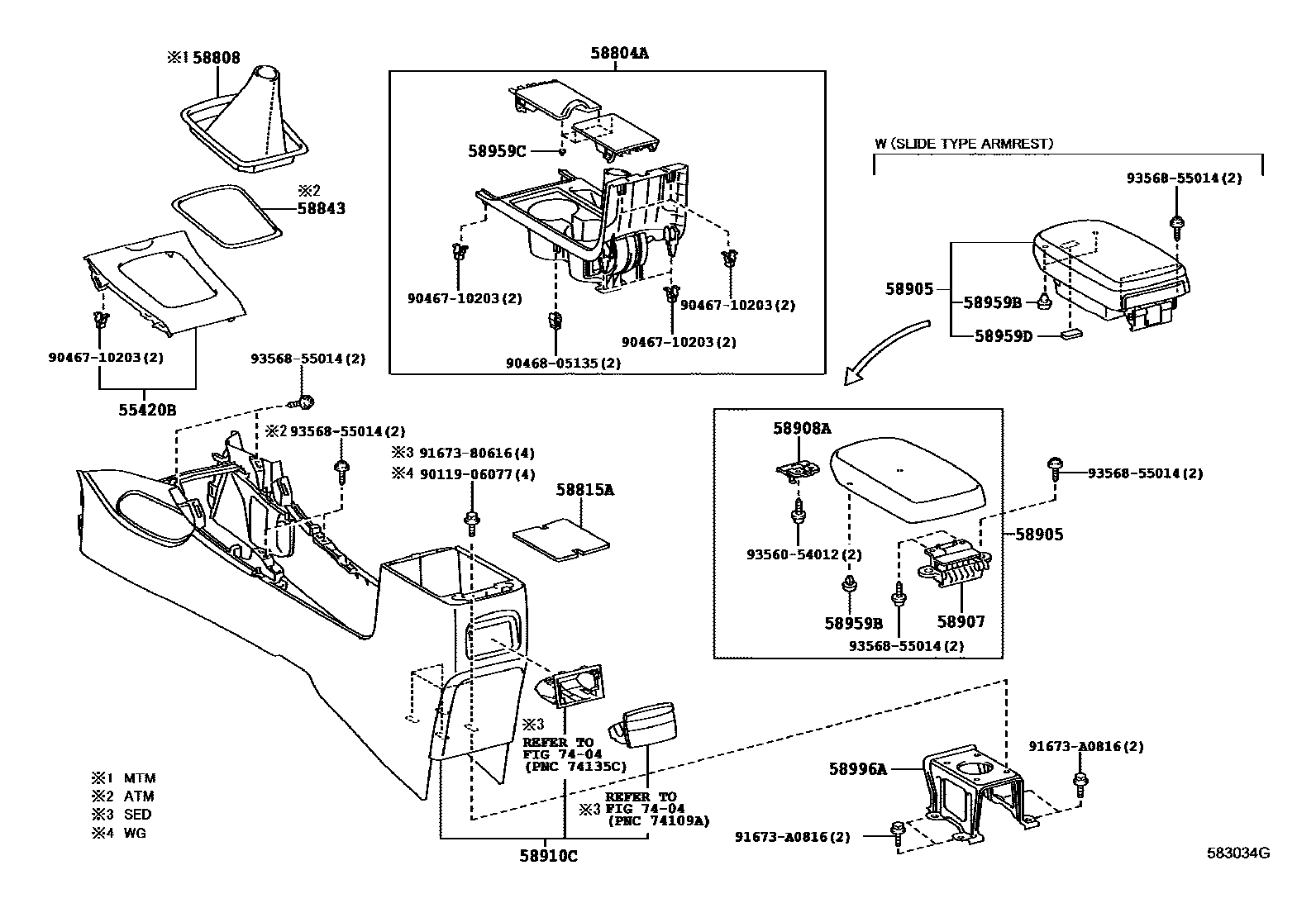

Diagram
19 parts
