Toyota COROLLA-SED-JPP 2006 — Starter
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 28100-22090 | STARTER ASSY | 1 | |
Note:1ZZFE..ZZE130..JPP Production:2004-05 – … Spec:12V 1.6KW | |||
| 28120-28040 | YOKE ASSY, STARTER | 1 | |
Note:1ZZFE..ZZE130..JPP Production:2004-05 – … Replacements:28120-28060 (fitment: unknown) | |||
| 28160-21060 | ARMATURE ASSY, STARTER | 1 | |
Note:1ZZFE..ZZE130..JPP Production:2004-05 – … | |||
| 28226-22061 | STARTER KIT, REPAIR SERVICE | 1 | |
Note:1ZZFE..ZZE130..JPP Production:2004-05 – … | |||
| 28114-21060 | PIN, STARTER DRIVE LEVER SET | 1 | |
Note:1ZZFE..ZZE130..JPP Production:2004-05 – … | |||
| 28110-22060 | HOUSING ASSY, STARTER DRIVE | 1 | |
Note:1ZZFE..ZZE130..JPP Production:2004-05 – … | |||
| 28021-21060 | CLUTCH SUB-ASSY, STARTER CENTER BEARING | 1 | |
Note:1ZZFE..ZZE130..JPP Production:2004-05 – … | |||
| 28255-28040 | GEAR, PLANET | 3 | |
Note:1ZZFE..ZZE130..JPP Production:2004-05 – … | |||
| 28177-28040 | PLATE(FOR STARTER ARMATURE) | 1 | |
Note:1ZZFE..ZZE130..JPP Production:2004-05 – … | |||
| 28130-21060 | FRAME ASSY, STARTER COMMUTATOR END | 1 | |
Note:1ZZFE..ZZE130..JPP Production:2004-05 – … | |||
| 28132-28040 | COVER, STARTER COMMUTATOR END FRAME | 1 | |
Note:1ZZFE..ZZE130..JPP Production:2004-05 – … | |||
| 90179-08204 | standard | — | |
| 91612-61065 | standard | — | |
| 90099-05178 | standard | — | |
| 90099-04561 | standard | — | |
| 90099-04572 | standard | — | |
| 90099-02228 | standard | — | |
| 90096-90016 | standard | — | |

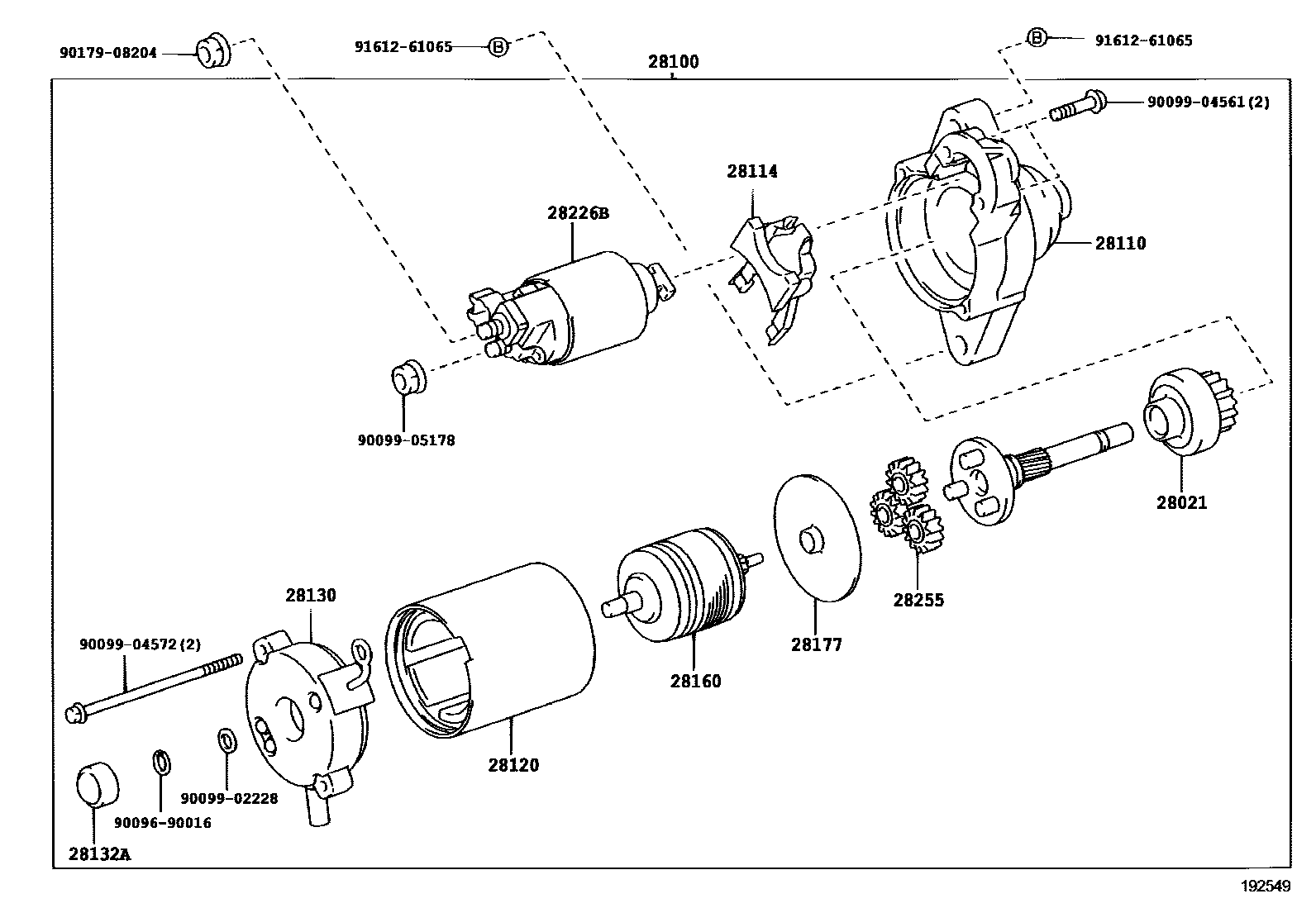

Diagram
18 parts
