Open RegionYearModelModelCode Details
USA / Canada 2024 HILUX SCB XTR GUN135R-BNFSXN
Catalog: TOYOTA202608 Engine: 2400CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: SOUTH AFRICA Doors Description: SINGLE CARBURETOR:SINGLE CAB Color Code: 040 Trim Code: FG20 Production: 202301-202401 Model Short: GUN135R-BNFSXN Region: NA Native Region: US

Toyota HILUX-SCB-XTR 2024 — Windshield Wiper

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85110-0K201 MOTOR ASSY, WINDSHIELD WIPER 1
Note:GUN122,125,126,13#,TGN120,136..RHD..SA Production:2022-08 – 2024-01
85150-0K290 LINK ASSY, WINDSHIELD WIPER 1
Note:GUN122,125,126,13#,TGN120,136..RHD..SA Production:2023-01 – 2024-01
85222-42130 BLADE, FR WIPER, LH 1
Note:GUN122,125,126,13#,TGN120,136..RHD..SA Production:2022-08 – 2024-01
85212-71010 BLADE, FR WIPER, RH 1
Note:GUN122,125,126,13#,TGN120,136..RHD..SA Production:2022-08 – 2024-01
85214-53080 RUBBER, WIPER, RH 1
Note:GUN122,125,126,13#,TGN120,136..RHD..SA Production:2022-08 – 2024-01
85211-0K131 ARM, FRONT WIPER, RH 1
Note:GUN122,125,126,13#,TGN120,136..RHD..SA Production:2022-08 – 2024-01
85221-0K130 ARM, FRONT WIPER, LH 1
Note:GUN122,125,126,13#,TGN120,136..RHD..SA Production:2022-08 – 2024-01
85292-0D030 CAP, FRONT WIPER ARM HEAD 2
Note:GUN122,125,126,13#,LAN125,TGN120,121,136..SA Production:2022-08 – 2024-01
85214-28090 RUBBER, WIPER, LH 1
Note:GUN122,125,126,13#,TGN120,136..RHD..SA Production:2022-08 – 2024-01
90119-T0145 standard —
Replacements:90119-06864 (fitment: unknown)
90182-T0029 standard —
Replacements:90182-10006 (fitment: unknown)

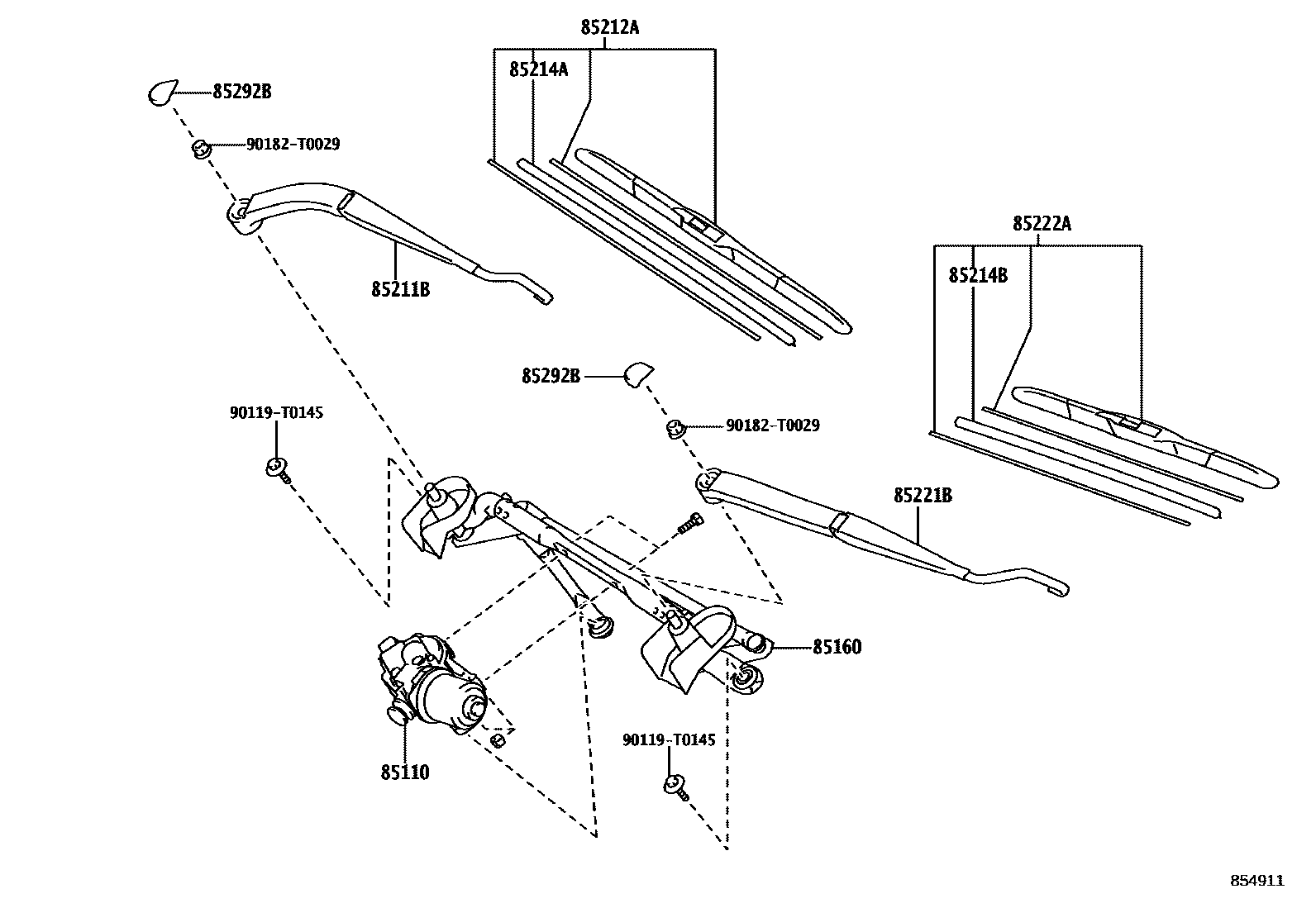

Diagram

11 parts
Toyota HILUX-SCB-XTR 2024 — Windshield Wiper
