Open RegionYearModelModelCode Details
General 2006 COROLLA S AFRICA ZZE120R-GHMNKN
Catalog: TOYOTA202608 Engine: 1400CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION Body Description: HATCHBACK Vehicle Grade: RT TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: SOUTH AFRICA Doors Description: 5-DOOR Color Code: 1C0 Trim Code: FE10 Production: 200210-200707 Model Short: ZZE120R-GHMNKN Region: OTHER Native Region: GR

Toyota COROLLA-S-AFRICA 2006 — Starter

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
28132-0D110 COVER, STARTER COMMUTATOR END FRAME 1
Note:1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122 Production:2004-08 – 2007-01 Fitment:Matches · configuration
28130-0D110 FRAME ASSY, STARTER COMMUTATOR END 1
Note:1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122 Production:2004-08 – 2007-01 Fitment:Matches · configuration
28140-0D110 HOLDER ASSY, STARTER BRUSH 1
Note:1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122 Production:2004-08 – 2007-01 Fitment:Matches · configuration
28120-0D110 YOKE ASSY, STARTER 1
Note:1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122 Production:2004-08 – 2007-01 Fitment:Matches · configuration
28160-0D110 ARMATURE ASSY, STARTER 1
Note:1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122 Production:2004-08 – 2007-01 Fitment:Matches · configuration
28110-0D110 HOUSING ASSY, STARTER DRIVE 1
Note:1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122 Production:2004-08 – 2007-01 Fitment:Matches · configuration
28100-0D110 STARTER ASSY 1
Note:1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122 Production:2004-08 – 2007-01 Spec:12V 1.1KW Fitment:Matches · configuration
28113-0D110 LEVER, STARTER PINION DRIVE 1
Note:1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122 Production:2004-08 – 2007-01 Fitment:Matches · configuration
28011-0D110 CLUTCH SUB-ASSY, STARTER 1
Note:1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122 Production:2004-08 – 2007-01 Fitment:Matches · configuration
28150-0D110 SWITCH ASSY, MAGNET STARTER 1
Note:1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122 Production:2004-08 – 2007-01 Fitment:Matches · configuration
28014-0D110 SHAFT SUB-ASSY, PLANET CARRIER 1
Note:1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122 Production:2004-08 – 2007-01 Fitment:Matches · configuration
90179-08204 standard —
Fitment:Matches · configuration
90069-33016 standard —
Fitment:Matches · configuration
90069-31017 standard —
Fitment:Matches · configuration
90069-32029 standard —
Fitment:Matches · configuration
90069-31016 standard —
Fitment:Matches · configuration
91612-61065 standard —
Fitment:Matches · configuration

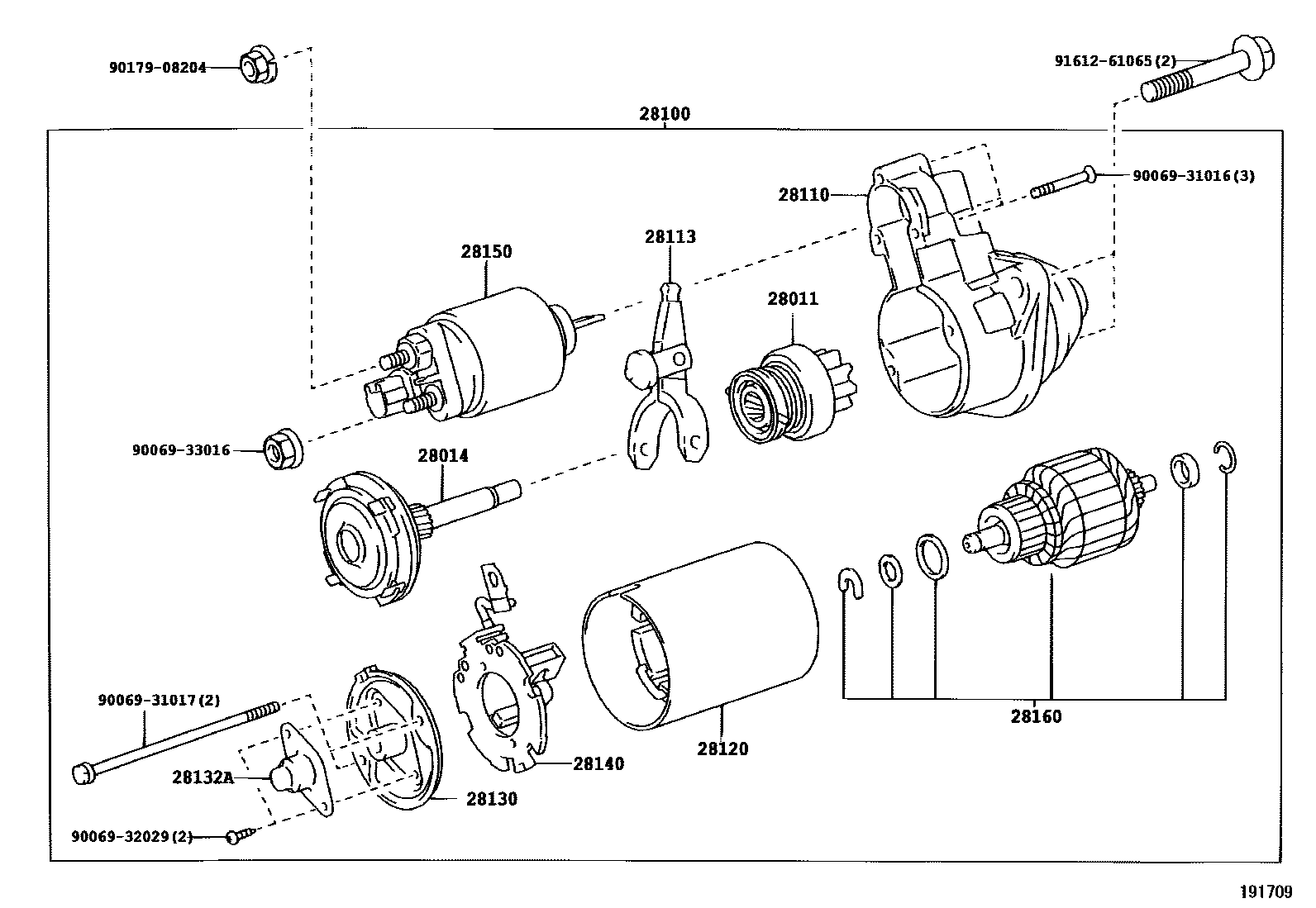

Diagram

17 parts
Toyota COROLLA-S-AFRICA 2006 — Starter
