Open RegionYearModelModelCode Details
General 2014 ETIOS NGK15L-AEMNKH
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: XS TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: ARGENTINE Doors Description: 4-DOOR Color Code: 058 Trim Code: FA20 Production: 201309-201604 Model Short: NGK15L-AEMNKH Region: OTHER Native Region: GR

Toyota Etios 2014 — Fuel Injection System

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
23209-49215 INJECTOR ASSY, FUEL 4
Note:2NRFE..NGK12,15 Production:2013-09 – 2016-04
90301-07033 RING, O(FOR FUEL INJECTOR) 4
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
23291-47010 INSULATOR, INJECTOR VIBRATION 4
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
23814-47030 PIPE, FUEL DELIVERY 1
Note:2NRFE..NGK12,15 Production:2013-09 – 2016-04
22030-47040 BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
22271-47030 GASKET, THROTTLE BODY 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
23842-47020 CLAMP, FUEL PIPE, NO.2(FOR EFI) 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
23841-21050 CLAMP, FUEL PIPE, NO.1(FOR EFI) 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
23901-0Y040 TUBE SUB-ASSY, FUEL 1
Note:1NRFBE,2NR#..NGK1# Production:2012-09 – 2016-04
77267-47030 PROTECTOR, FUEL TUBE, NO.2 1
Note:NGK1# Production:2012-09 – 2016-04
91671-80835 standard —
91551-80625 standard —

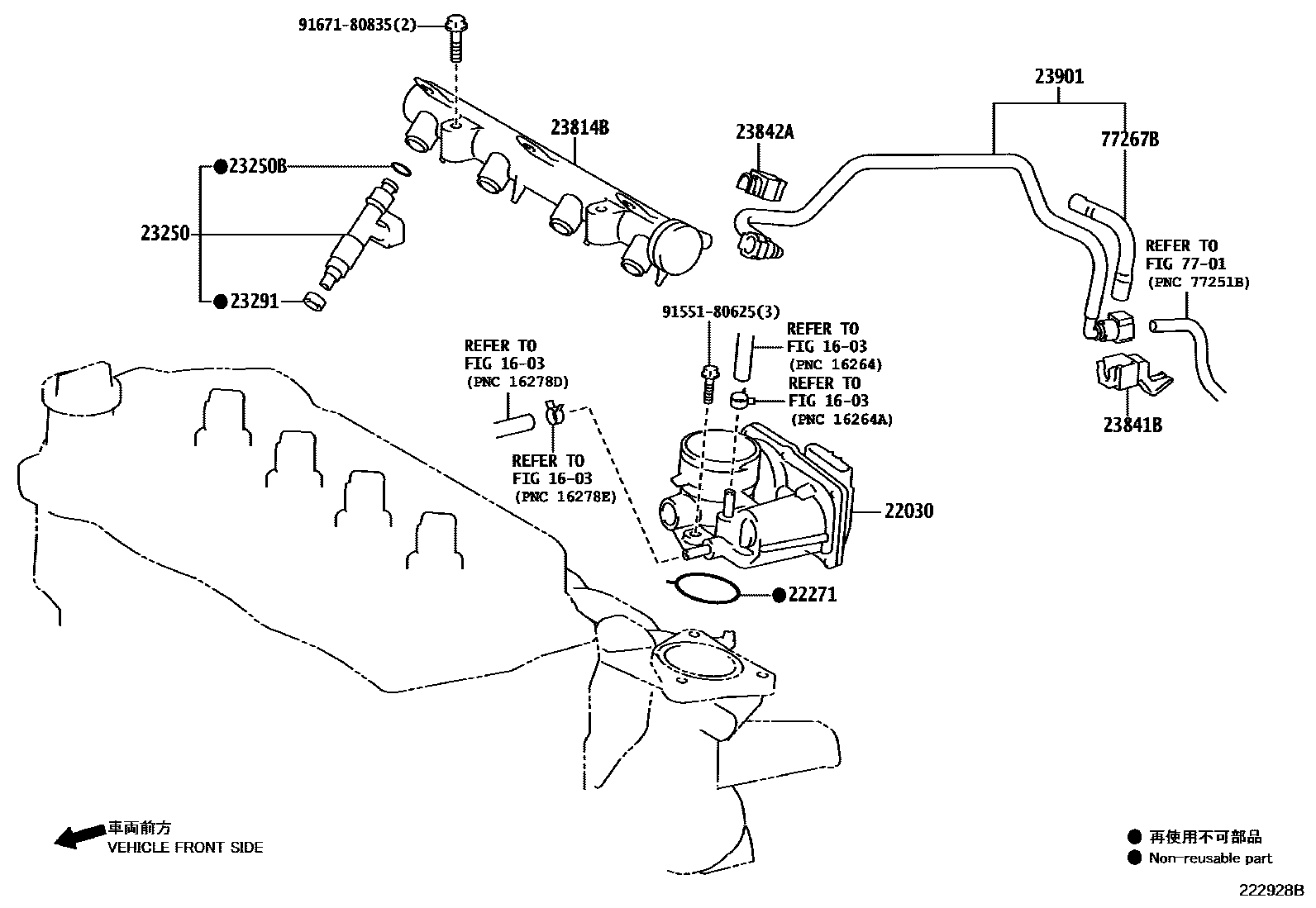

Diagram

12 parts
Toyota Etios 2014 — Fuel Injection System
