USA / Canada 2025 HILUX DOUBLE CAB GUN136R-DNTHRN
Catalog: TOYOTA202608 Engine: 2800CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: SOUTH AFRICA Color Code: 040 Trim Code: LE21 Production: 202411-999999 Model Short: GUN136R-DNTHRN Region: NA Native Region: US

Toyota HILUX-DOUBLE-CAB 2025 — Mounting

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90105-T0174 BOLT(FOR ENGINE MOUNTING INSURATOR) 4
Note:2GDFTV..GUN125..LHD..SP;2GDFTV..GUN125..RHD..(GEN,IDN,KEN,MA,SA);2GDFTV..GUN125..LHD..(BZAG,GCC,GEN,GHA,LA,PH);1G#,2GDFTV..GGN125,GUN120,121,122,136..BZAG,GCC,GEN,LA,PH,SA,TH;1GDFTV,2GDFTV..GUN126,135..BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA,TWN Production:2024-08 – … Replacements:91552-K1025 (fitment: unknown) Spec:TYPE A:REFER ILLUST. Fitment:Matches · configuration
90910-03003 BOLT(FOR ENGINE MOUNTING INSURATOR) 4
Note:2GDFTV..GUN125..LHD..SP;2GDFTV..GUN125..RHD..(GEN,IDN,KEN,MA,SA);2GDFTV..GUN125..LHD..(BZAG,GCC,GEN,GHA,LA,PH);1G#,2GDFTV..GGN125,GUN120,121,122,136..BZAG,GCC,GEN,LA,PH,SA,TH;1GDFTV,2GDFTV..GUN126,135..BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA,TWN Production:2024-08 – … Spec:TYPE B:REFER ILLUST. Fitment:Matches · configuration
12501-0E011 BRACKET SUB-ASSY, ALTERNATOR 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..DCRL..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Spec:THA SOURCED PARTS Fitment:Matches · configuration
12361-0L021 INSULATOR, ENGINE MOUNTING, FRONT 2
Note:2GDFTV..GUN125..LHD..SP;2GDFTV..GUN125..RHD..(GEN,IDN,KEN,MA,SA);2GDFTV..GUN125..LHD..(BZAG,GCC,GEN,GHA,LA,PH);1GDFTV,2GDFTV..GUN120,121,122,136..BZAG,GCC,GEN,LA,PH,SA,TH;1GDFTV,2GDFTV..GUN126,135..BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA,TWN Production:2024-08 – … Replacements:12361-30171 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
12361-30171 INSULATOR, ENGINE MOUNTING, FRONT 2
Note:2GDFTV..GUN125..LHD..SP;2GDFTV..GUN125..RHD..(GEN,IDN,KEN,MA,SA);2GDFTV..GUN125..LHD..(BZAG,GCC,GEN,GHA,LA,PH);1GDFTV,2GDFTV..GUN120,121,122,136..BZAG,GCC,GEN,LA,PH,SA,TH;1GDFTV,2GDFTV..GUN126,135..BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA,TWN Production:2024-08 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
12381-0L081 STABILIZER, ENGINE MOUNTING 2
Note:2GDFTV..GUN125..LHD..SP;2GDFTV..GUN125..RHD..(GEN,IDN,KEN,MA,SA);2GDFTV..GUN125..LHD..(BZAG,GCC,GEN,GHA,LA,PH);1GDFTV,2GDFTV..GUN120,121,122,136..BZAG,GCC,GEN,LA,PH,SA,TH;1GDFTV,2GDFTV..GUN126,135..BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA,TWN Production:2024-08 – … Replacements:12381-30091 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
12381-30091 STABILIZER, ENGINE MOUNTING 2
Note:2GDFTV..GUN125..LHD..SP;2GDFTV..GUN125..RHD..(GEN,IDN,KEN,MA,SA);2GDFTV..GUN125..LHD..(BZAG,GCC,GEN,GHA,LA,PH);1GDFTV,2GDFTV..GUN120,121,122,136..BZAG,GCC,GEN,LA,PH,SA,TH;1GDFTV,2GDFTV..GUN126,135..BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA,TWN Production:2024-08 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
12315-0E010 BRACKET, ENGINE MOUNTING, FRONT NO.1 LH 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:12315-11060 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
12311-0E020 BRACKET, ENGINE MOUNTING, FRONT NO.1 RH 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:12311-11140 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
12391-0L050 INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH 1
Note:1GDFTV,2GDFTV..GUN122,125,126,13#..GAP,KNP,SP Production:2024-11 – … Spec:MARK=T Fitment:Matches · configuration
12371-0L210 INSULATOR, ENGINE MOUNTING, REAR 1
Note:2GDFTV..GUN125..LHD..SP;2GDFTV..GUN125..RHD..(GEN,IDN,KEN,MA,SA);2GDFTV..GUN125..LHD..(GAP,TP)..(GCC,GEN,GHA,LA,PH);1GDFTV..GUN126..(CMP,GAP,INP,KNP,MMP,MP,PKP,SP,TP)..(GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA,TWN) Production:2024-08 – … Fitment:Matches · configuration
94151-21241 standard —
Fitment:Matches · configuration
90178-T0087 standard —
Replacements:94151-21241 (fitment: unknown) Fitment:Matches · configuration
90178-T0015 standard —
Replacements:94151-21041 (fitment: unknown) Fitment:Matches · configuration
90119-T0134 standard —
Replacements:91671-80612 (fitment: unknown) Fitment:Matches · configuration
90119-T0301 standard —
Replacements:91671-J0816 (fitment: unknown) Fitment:Matches · configuration
90119-T0511 standard —
Fitment:Matches · configuration
90105-T0073 standard —
Replacements:91552-81025 (fitment: unknown) Fitment:Matches · configuration
91552-81025 standard —
Fitment:Matches · configuration
90119-T0219 standard —
Replacements:91671-80835 (fitment: unknown) Fitment:Matches · configuration
91671-80835 standard —
Fitment:Matches · configuration

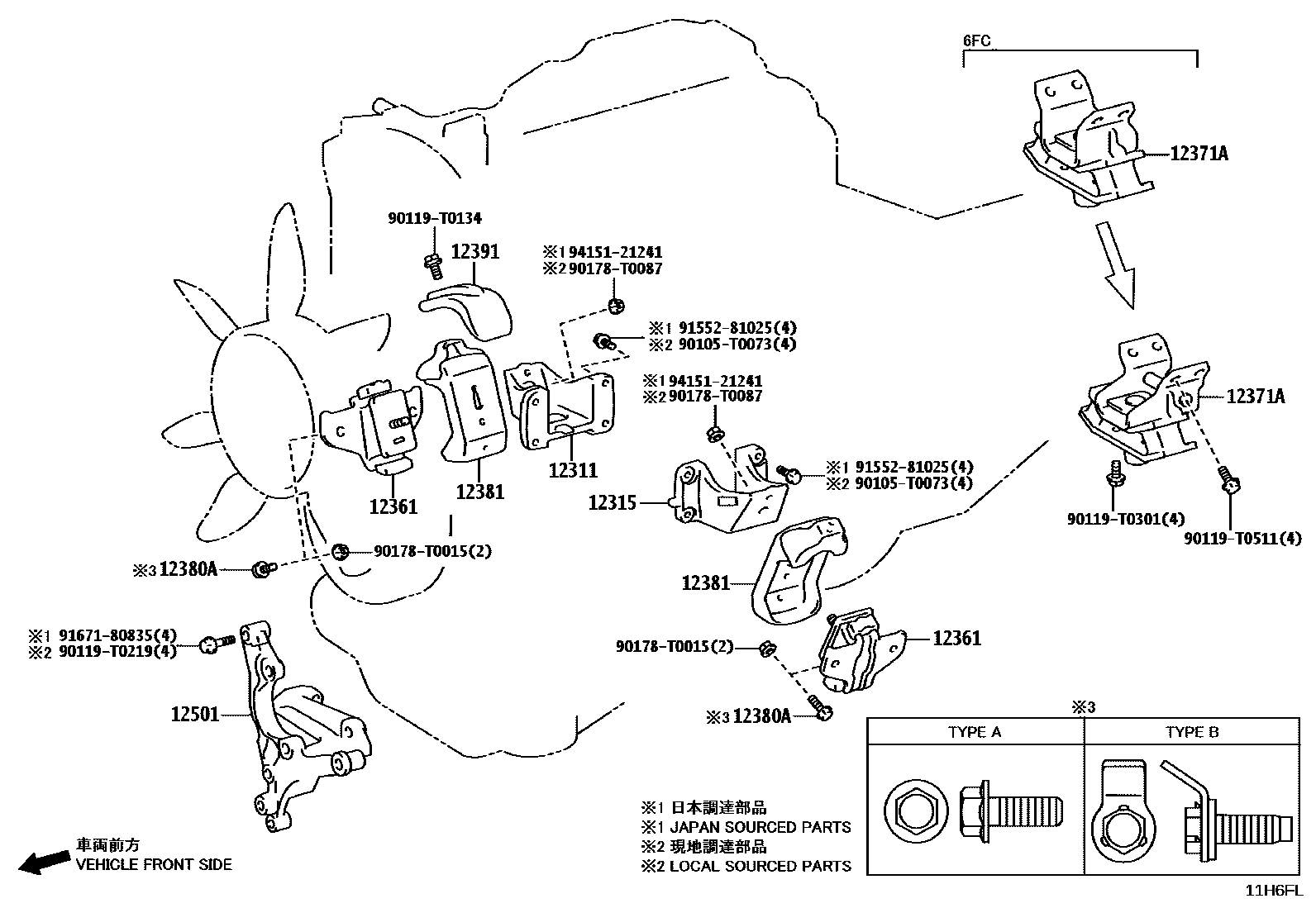

Diagram

21 parts
Toyota HILUX-DOUBLE-CAB 2025 — Mounting
