Toyota HILUX-DOUBLE-CAB 2025 — Engine Oil Pump
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 15104-08020 | STRAINER SUB-ASSY, OIL | 1 | |
Note:1GDFTV..GUN126..CBU;1GDFTV..GUN136..6FC;1GDFTV..GUN136..6F..H;1GDFTV..GUN126..S..IV3;1GDFTV..GUN126..H..MHV..IV3;1GDFTV,2GDFTV..GUN120,121,122,125,135 Production:2024-08 – 2025-06 Spec:THA SOURCED PARTS Fitment:Matches · configuration | |||
| 15147-0C020 | GASKET, OIL STRAINER | 1 | |
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration | |||
| 15012-0E010 | COVER SUB-ASSY, OIL PUMP | 1 | |
Note:1GDFTV..GUN126..H..SA;2GDFTV..GUN125..RHD..L..SA;1GDFTV..GUN126..S..(GEN,SA);2GDFTV..GUN135..6FC..(GEN,SA);1GDFTV..GUN126..TP..6FC..S..LA;2GDFTV..GUN125..RHD..(H,S)..GEN;1GDFTV..GUN126..TP..6FC..H..GEN;1GDFTV..GUN136..(SP,TP)..(LA,SA);2GDFTV..GUN135..LHD..6F..(GEN,SA);2GDFTV..GUN125..LHD..TP..L..(GEN,LA);2GDFTV..GUN122,125..LHD..(5F,6FC)..S..(GEN,SA);1GDFTV,2GDFTV..GUN125,126..LHD..6F..H..(GEN,SA) Production:2024-08 – 2026-04 Fitment:Matches · configuration | |||
| 91551-80616 | standard | — | |
Fitment:Matches · configuration | |||
| 91551-80635 | standard | — | |
Fitment:Matches · configuration | |||
| 91671-80616 | standard | — | |
Fitment:Matches · configuration | |||
| 90119-T0260 | standard | — | |
Replacements:91671-80616 (fitment: unknown) Fitment:Matches · configuration | |||

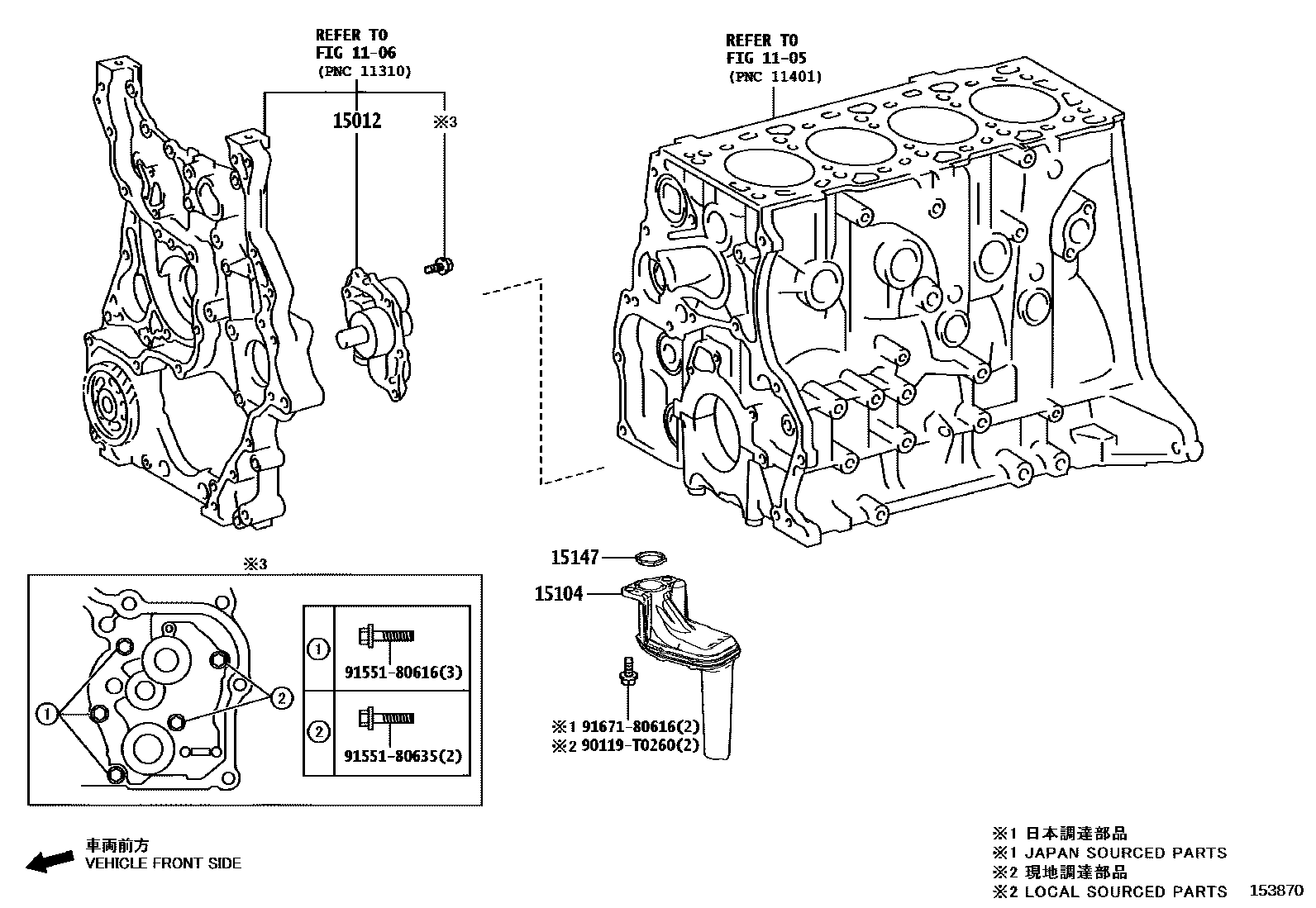

Diagram
7 parts
