Open RegionYearModelModelCode Details
USA / Canada 2025 HILUX DOUBLE CAB GUN136R-DNTHRN
Catalog: TOYOTA202608 Engine: 2800CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: SOUTH AFRICA Color Code: 040 Trim Code: LE21 Production: 202411-999999 Model Short: GUN136R-DNTHRN Region: NA Native Region: US

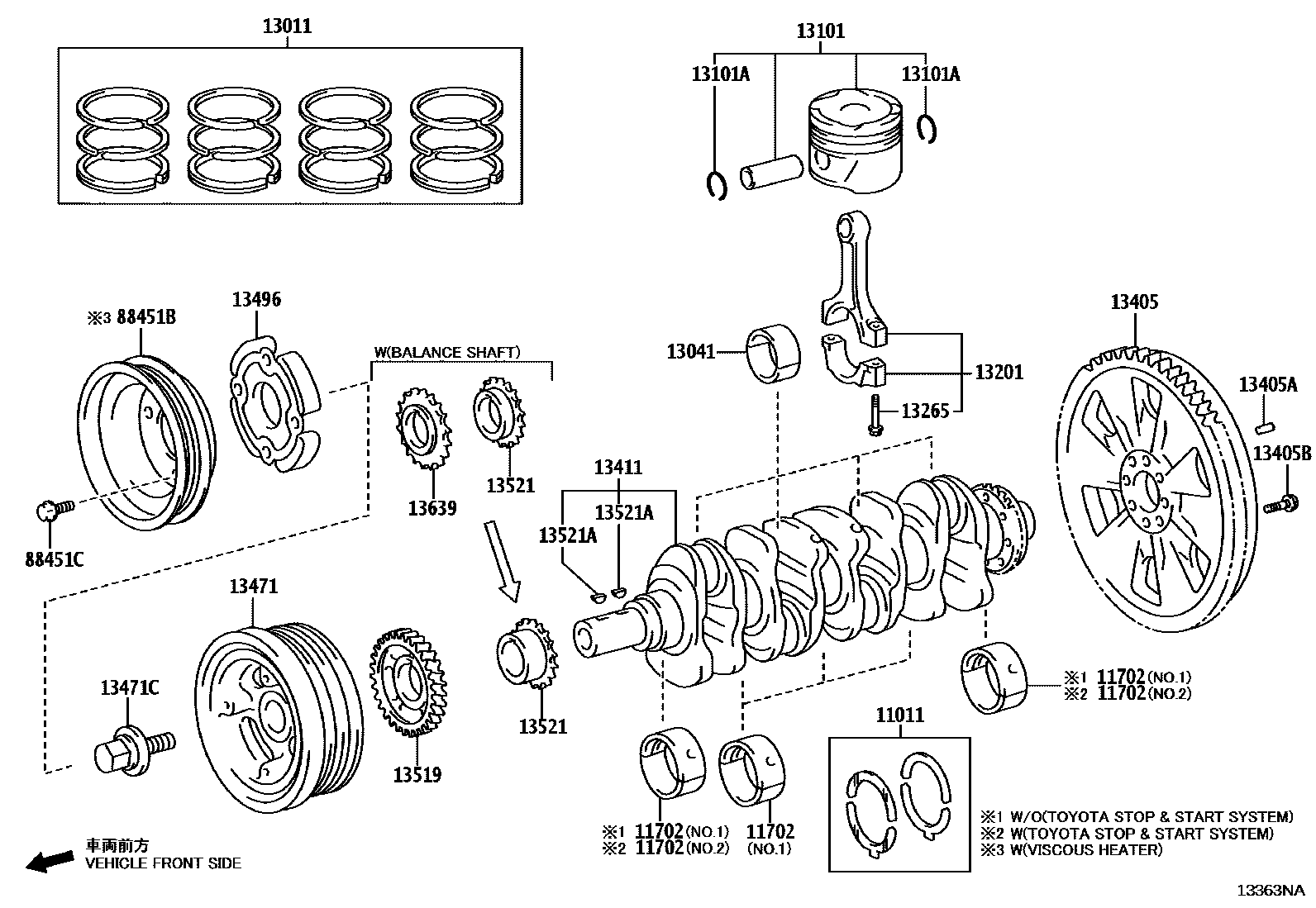

Toyota HILUX-DOUBLE-CAB 2025 — Crankshaft & Piston

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
13405-0E030 FLYWHEEL SUB-ASSY 1
Note:2GDFTV..GUN125..LHD..6F..H;2GDFTV..GUN125..TP..6F..S..(GCC,GEN,IDN,LA);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..LHD..TP..6F..L..(GCC,GEN,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..6F..(GCC,GEN,LA,PH,SA) Production:2024-08 – 2026-04 Replacements:13405-11100 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
90250-T0008 PIN, STRAIGHT(FOR FLYWHEEL) 3
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN125..TP..6F..S..(GCC,GEN,IDN,LA);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..LHD..TP..6F..L..(GCC,GEN,LA,PH);1GDFTV..GUN126..(SP,TP)..6F..(GCC,GEN,LA,PH,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV,2GDFTV..GUN122,136..(SP,TP)..MTM..(H,S)..(GEN,LA,SA) Production:2024-08 – 2026-04 Replacements:90250-10192 (fitment: unknown) Spec:L=22,OD=10,(L) Spec Note:L=22,OD=10,(Local made) Fitment:Matches · configuration
13041-0E021-02 BEARING, CONNECTING ROD 4
Note:1GDFTV..GUN126..6F..GCC;1GDFTV..GUN126..MHV..GCC;1GDFTV..GUN126,136..(SP,TP)..(GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13041-11061-02 (fitment: unknown) Spec:MARK 2 Fitment:Matches · configuration
13041-0E021-03 BEARING, CONNECTING ROD 4
Note:1GDFTV..GUN126..6F..GCC;1GDFTV..GUN126..MHV..GCC;1GDFTV..GUN126,136..(SP,TP)..(GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13041-11061-03 (fitment: unknown) Spec:MARK 3 Fitment:Matches · configuration
13041-0E021-04 BEARING, CONNECTING ROD 4
Note:1GDFTV..GUN126..6F..GCC;1GDFTV..GUN126..MHV..GCC;1GDFTV..GUN126,136..(SP,TP)..(GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13041-11061-04 (fitment: unknown) Spec:MARK 4 Fitment:Matches · configuration
13041-0E021-05 BEARING, CONNECTING ROD 4
Note:1GDFTV..GUN126..6F..GCC;1GDFTV..GUN126..MHV..GCC;1GDFTV..GUN126,136..(SP,TP)..(GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13041-11061-05 (fitment: unknown) Spec:MARK 5 Fitment:Matches · configuration
13041-0E021-06 BEARING, CONNECTING ROD 4
Note:1GDFTV..GUN126..6F..GCC;1GDFTV..GUN126..MHV..GCC;1GDFTV..GUN126,136..(SP,TP)..(GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13041-11061-06 (fitment: unknown) Spec:MARK 6 Fitment:Matches · configuration
13101-0E071-01 PISTON SUB-ASSY, W/PIN 4
Note:1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13101-11241-01 (fitment: unknown) Spec:STD,MARK 1,THA SOURCED PARTS Fitment:Matches · configuration
13101-0E071-02 PISTON SUB-ASSY, W/PIN 4
Note:1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13101-11241-02 (fitment: unknown) Spec:STD,MARK 2,THA SOURCED PARTS Fitment:Matches · configuration
13011-0E042 RING SET, PISTON 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN135..TP..(LA,PH);1GDFTV..GUN126..TP..6F..S..LA;2GDFTV..GUN125..6F..L..(GCC,PH);2GDFTV..GUN125..RHD..L..(GEN,IDN);1GDFTV..GUN126..RHD..6F..H..(GEN,SA);2GDFTV..GUN125..TP..6FC..(GCC,IDN,LA);1GDFTV..GUN126..TP..(H,L)..(GCC,LA,PH,TWN);1GDFTV,2GDFTV..GUN122,136..MTM..H..(GCC,SA);2GDFTV..GUN125..TP..6F..(H,S)..(GCC,IDN,LA) Production:2024-08 – 2026-04 Replacements:13011-11221 (fitment: unknown) Spec:STD,THA SOURCED PARTS Fitment:Matches · configuration
13496-0E010 COVER, CRANKSHAFT PULLY 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
13521-0E010 GEAR OR SPROCKET, CRANKSHAFT TIMING 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13521-11040 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
90520-32013 RING, HOLE SNAP(FOR PISTON PIN) 8
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
13201-0E020-A0 ROD SUB-ASSY, CONNECTING 4
Note:1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13201-11050-A0 (fitment: unknown) Spec:MARK A,(L) Spec Note:MARK A,(Local made) Fitment:Matches · configuration
13201-0E020-B0 ROD SUB-ASSY, CONNECTING 4
Note:1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13201-11050-B0 (fitment: unknown) Spec:MARK B,(L) Spec Note:MARK B,(Local made) Fitment:Matches · configuration
13201-0E020-C0 ROD SUB-ASSY, CONNECTING 4
Note:1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13201-11050-C0 (fitment: unknown) Spec:MARK C,(L) Spec Note:MARK C,(Local made) Fitment:Matches · configuration
13201-11050-A0 ROD SUB-ASSY, CONNECTING 4
Note:1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Spec:MARK A,(J) Spec Note:MARK A,(Japan made) Fitment:Matches · configuration
13201-11050-B0 ROD SUB-ASSY, CONNECTING 4
Note:1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Spec:MARK B,(J) Spec Note:MARK B,(Japan made) Fitment:Matches · configuration
13201-11050-C0 ROD SUB-ASSY, CONNECTING 4
Note:1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Spec:MARK C,(J) Spec Note:MARK C,(Japan made) Fitment:Matches · configuration
13265-22031 BOLT, CONNECTING ROD 8
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
11011-0L020 WASHER SET, CRANKSHAFT THRUST 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:11011-30010 (fitment: unknown) Spec:STD,(L) Spec Note:STD,(Local made) Fitment:Matches · configuration
11701-0E010-02 BEARING SET, CRANKSHAFT 5
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..TP..6F..LA;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN135..6FC..(GEN,SA);2GDFTV..GUN125..LHD..H..(GEN,SA);2GDFTV..GUN125..RHD..S..(GEN,IDN);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,SA);2GDFTV..GUN122,125..LHD..(5F,6FC)..S..(GEN,SA);1GDFTV..GUN126,136..(SP,TP)..DCRL..(GEN,LA,SA);1GDFTV,2GDFTV..GUN122,126..(5F,6FC)..H..DCRL..GCC Production:2024-08 – 2026-04 Replacements:11701-11030-02 (fitment: unknown) Spec:MARK 2,NO.1,REFER R/M,*652 Spec Note:MARK 2,NO.1,REFER R/M,*652(THAILAND SOURCED PARTS) Fitment:Matches · configuration
11701-0E010-03 BEARING SET, CRANKSHAFT 5
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..TP..6F..LA;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN135..6FC..(GEN,SA);2GDFTV..GUN125..LHD..H..(GEN,SA);2GDFTV..GUN125..RHD..S..(GEN,IDN);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,SA);2GDFTV..GUN122,125..LHD..(5F,6FC)..S..(GEN,SA);1GDFTV..GUN126,136..(SP,TP)..DCRL..(GEN,LA,SA);1GDFTV,2GDFTV..GUN122,126..(5F,6FC)..H..DCRL..GCC Production:2024-08 – 2026-04 Replacements:11701-11030-03 (fitment: unknown) Spec:MARK 3,NO.1,REFER R/M,*652 Spec Note:MARK 3,NO.1,REFER R/M,*652(THAILAND SOURCED PARTS) Fitment:Matches · configuration
11701-0E010-04 BEARING SET, CRANKSHAFT 5
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..TP..6F..LA;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN135..6FC..(GEN,SA);2GDFTV..GUN125..LHD..H..(GEN,SA);2GDFTV..GUN125..RHD..S..(GEN,IDN);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,SA);2GDFTV..GUN122,125..LHD..(5F,6FC)..S..(GEN,SA);1GDFTV..GUN126,136..(SP,TP)..DCRL..(GEN,LA,SA);1GDFTV,2GDFTV..GUN122,126..(5F,6FC)..H..DCRL..GCC Production:2024-08 – 2026-04 Replacements:11701-11030-04 (fitment: unknown) Spec:MARK 4,NO.1,REFER R/M,*652 Spec Note:MARK 4,NO.1,REFER R/M,*652(THAILAND SOURCED PARTS) Fitment:Matches · configuration
11701-0E010-05 BEARING SET, CRANKSHAFT 5
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..TP..6F..LA;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN135..6FC..(GEN,SA);2GDFTV..GUN125..LHD..H..(GEN,SA);2GDFTV..GUN125..RHD..S..(GEN,IDN);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,SA);2GDFTV..GUN122,125..LHD..(5F,6FC)..S..(GEN,SA);1GDFTV..GUN126,136..(SP,TP)..DCRL..(GEN,LA,SA);1GDFTV,2GDFTV..GUN122,126..(5F,6FC)..H..DCRL..GCC Production:2024-08 – 2026-04 Replacements:11701-11030-05 (fitment: unknown) Spec:MARK 5,NO.1,REFER R/M,*652 Spec Note:MARK 5,NO.1,REFER R/M,*652(THAILAND SOURCED PARTS) Fitment:Matches · configuration
11701-0E010-06 BEARING SET, CRANKSHAFT 5
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..TP..6F..LA;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN135..6FC..(GEN,SA);2GDFTV..GUN125..LHD..H..(GEN,SA);2GDFTV..GUN125..RHD..S..(GEN,IDN);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,SA);2GDFTV..GUN122,125..LHD..(5F,6FC)..S..(GEN,SA);1GDFTV..GUN126,136..(SP,TP)..DCRL..(GEN,LA,SA);1GDFTV,2GDFTV..GUN122,126..(5F,6FC)..H..DCRL..GCC Production:2024-08 – 2026-04 Replacements:11701-11030-06 (fitment: unknown) Spec:MARK 6,NO.1,REFER R/M,*652 Spec Note:MARK 6,NO.1,REFER R/M,*652(THAILAND SOURCED PARTS) Fitment:Matches · configuration
13401-0E020 CRANKSHAFT 1
Note:1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13401-11090 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
90280-T0002 KEY(FOR CRANKSHAFT TIMING GEAR) 2
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:95161-30516 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 88451B —
90119-T0236 BOLT, FLANGE W/WASHER 4
Note:GUN122..IV3;GUN125..LHD..L..GEN;GUN122,125..LHD..MTM..H;GUN122,125..S..(GEN,IDN);GUN135..6FC..(GEN,PH,SA);GUN125..LHD..(SP,TP)..6FC;GUN125..RHD..(H,L)..(GEN,IDN,SA);GUN125..TP..6F..(L,S)..(GCC,LA,PH);GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);GUN126,136..(SP,TP)..DCRL..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:91671-80814 (fitment: unknown) Fitment:Matches · configuration
90119-T0218 BOLT(FOR CRANKSHAFT PULLEY SET) 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:90119-18003 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
13408-0E011 PULLEY, CRANKSHAFT 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13408-11061 (fitment: unknown) Spec:THA SOURCED PARTS Fitment:Matches · configuration
13519-0E010 GEAR, OIL PUMP DRIVE 1
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN122,125..S..(GEN,IDN);2GDFTV..GUN135..6FC..(GEN,PH,SA);2GDFTV..GUN125..LHD..(SP,TP)..6FC;2GDFTV..GUN125..RHD..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..TP..6F..(L,S)..(GCC,LA,PH);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV..GUN126,136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Replacements:13519-11010 (fitment: unknown) Fitment:Matches · configuration
90105-T0203 BOLT, FLYWHEEL SETTING 8
Note:2GDFTV..GUN122..IV3;2GDFTV..GUN122,125..LHD..MTM..H;2GDFTV..GUN125..TP..6F..S..(GCC,GEN,IDN,LA);2GDFTV..GUN125..RHD..6F..(H,L)..(GEN,IDN,SA);2GDFTV..GUN125..LHD..TP..6F..L..(GCC,GEN,LA,PH);1GDFTV..GUN126..(SP,TP)..6F..(GCC,GEN,LA,PH,SA);2GDFTV..GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);1GDFTV,2GDFTV..GUN122,136..(SP,TP)..MTM..(H,S)..(GEN,LA,SA) Production:2024-08 – 2026-04 Replacements:90105-13015 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 13639 —

Diagram

33 parts
