Open RegionYearModelModelCode Details
USA / Canada 2025 HILUX DOUBLE CAB GUN136R-DNTHRN
Catalog: TOYOTA202608 Engine: 2800CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: SOUTH AFRICA Color Code: 040 Trim Code: LE21 Production: 202411-999999 Model Short: GUN136R-DNTHRN Region: NA Native Region: US

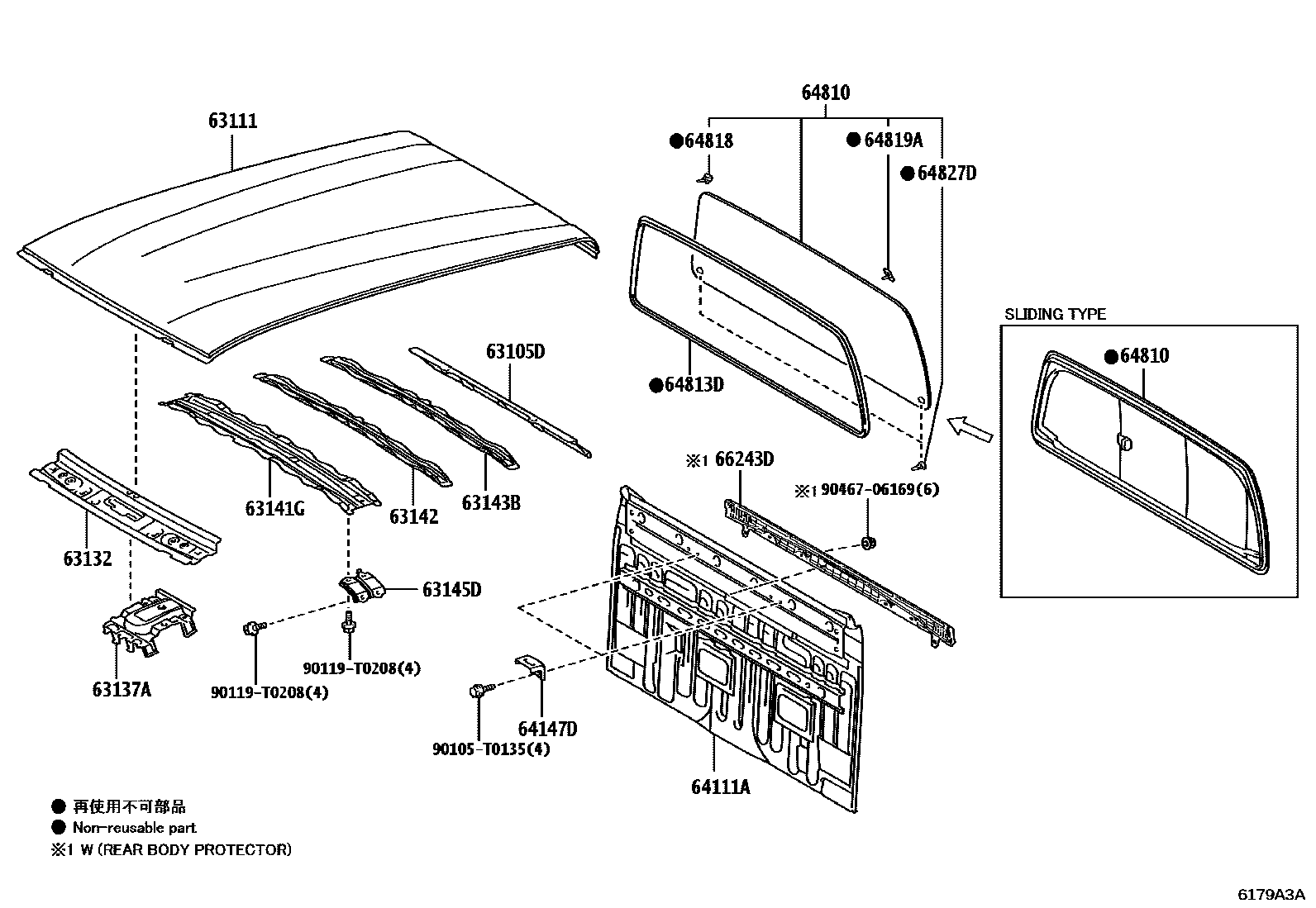

Toyota HILUX-DOUBLE-CAB 2025 — Roof Panel & Back Panel

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
63135-KK050 FRAME SUB-ASSY, BACK WINDOW, UPPER 1
Note:GUN122..IV3;TGN121,126..SP;TGN126..(H,L)..GEN;GUN125..LHD..L..GEN;TGN126..TP..(GCC,LA);GUN122,125..LHD..MTM..H;GUN122,125..S..(GEN,IDN);GUN135..6FC..(GEN,PH,SA);GUN125..LHD..(SP,TP)..6FC;GUN125..RHD..(H,L)..(GEN,IDN,SA);GUN125..TP..6F..(L,S)..(GCC,LA,PH);GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);GGN125,GUN126,136,LAN125,TGN136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
63111-KK010 PANEL, ROOF 1
Note:GUN122..IV3;TGN121,126..SP;TGN126..TP..(GCC,LA);GUN122,125..LHD..MTM..H;GUN135..6FC..(GEN,PH,SA);GUN122,125..S..(GEN,IDN);GUN125..LHD..(SP,TP)..6FC;GUN125,TGN126..LHD..L..GEN;GUN125..RHD..(H,L)..(GEN,IDN,SA);GUN125..TP..6F..(L,S)..(GCC,LA,PH);GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);GGN125,GUN126,136,LAN125,TGN136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
63132-KK021 PANEL, WINDSHIELD HEADER, INNER 1
Note:GUN122..IV3;TGN121,126..SP;TGN126..(H,L)..GEN;GUN125..LHD..L..GEN;TGN126..TP..(GCC,LA);GUN122,125..LHD..MTM..H;GUN122,125..S..(GEN,IDN);GUN135..6FC..(GEN,PH,SA);GUN125..LHD..(SP,TP)..6FC;GUN125..RHD..(H,L)..(GEN,IDN,SA);GUN125..TP..6F..(L,S)..(GCC,LA,PH);GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);GGN125,GUN126,136,LAN125,TGN136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
63137-KK010 BRACKET, DOME LAMP, NO.1 1
Note:GUN122..IV3;TGN121,126..SP;TGN126..(H,L)..GEN;GUN125..LHD..L..GEN;TGN126..TP..(GCC,LA);GUN122,125..LHD..MTM..H;GUN122,125..S..(GEN,IDN);GUN135..6FC..(GEN,PH,SA);GUN125..LHD..(SP,TP)..6FC;GUN125..RHD..(H,L)..(GEN,IDN,SA);GUN125..TP..6F..(L,S)..(GCC,LA,PH);GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);GGN125,GUN126,136,LAN125,TGN136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
63141-KK020 REINFORCEMENT, ROOF PANEL, NO.1 1
Note:GUN122..IV3;TGN121,126..SP;TGN126..(H,L)..GEN;GUN125..LHD..L..GEN;TGN126..TP..(GCC,LA);GUN122,125..LHD..MTM..H;GUN122,125..S..(GEN,IDN);GUN135..6FC..(GEN,PH,SA);GUN125..LHD..(SP,TP)..6FC;GUN125..RHD..(H,L)..(GEN,IDN,SA);GUN125..TP..6F..(L,S)..(GCC,LA,PH);GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);GGN125,GUN126,136,LAN125,TGN136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
63142-KK010 REINFORCEMENT, ROOF PANEL, NO.2 1
Note:GUN122..IV3;TGN121,126..SP;TGN126..(H,L)..GEN;GUN125..LHD..L..GEN;TGN126..TP..(GCC,LA);GUN122,125..LHD..MTM..H;GUN122,125..S..(GEN,IDN);GUN135..6FC..(GEN,PH,SA);GUN125..LHD..(SP,TP)..6FC;GUN125..RHD..(H,L)..(GEN,IDN,SA);GUN125..TP..6F..(L,S)..(GCC,LA,PH);GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);GGN125,GUN126,136,LAN125,TGN136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
63143-KK010 REINFORCEMENT, ROOF PANEL, NO.3 1
Note:GUN122..IV3;TGN121,126..SP;TGN126..(H,L)..GEN;GUN125..LHD..L..GEN;TGN126..TP..(GCC,LA);GUN122,125..LHD..MTM..H;GUN122,125..S..(GEN,IDN);GUN135..6FC..(GEN,PH,SA);GUN125..LHD..(SP,TP)..6FC;GUN125..RHD..(H,L)..(GEN,IDN,SA);GUN125..TP..6F..(L,S)..(GCC,LA,PH);GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);GGN125,GUN126,136,LAN125,TGN136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
63145-KK030 BRACKET, ROOF REINFORCEMENT 2
Note:GUN122..IV3;TGN121,126..SP;TGN126..(H,L)..GEN;GUN125..LHD..L..GEN;TGN126..TP..(GCC,LA);GUN122,125..LHD..MTM..H;GUN122,125..S..(GEN,IDN);GUN135..6FC..(GEN,PH,SA);GUN125..LHD..(SP,TP)..6FC;GUN125..RHD..(H,L)..(GEN,IDN,SA);GUN125..TP..6F..(L,S)..(GCC,LA,PH);GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);GGN125,GUN126,136,LAN125,TGN136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
64101-KK010 PANEL, BACK 1
Note:GUN125..H..SA;GUN126..RHD..SA;GUN135..6FC..SA;GGN125,GUN136,TGN136..SA Production:2024-11 – 2026-04 Fitment:Matches · configuration
64147-KK010 PLATE, BACK PANEL CORNER, UPPER 2
Note:GUN122..IV3;TGN121,126..SP;TGN126..(H,L)..GEN;GUN125..LHD..L..GEN;TGN126..TP..(GCC,LA);GUN122,125..LHD..MTM..H;GUN122,125..S..(GEN,IDN);GUN135..6FC..(GEN,PH,SA);GUN125..LHD..(SP,TP)..6FC;GUN125..RHD..(H,L)..(GEN,IDN,SA);GUN125..TP..6F..(L,S)..(GCC,LA,PH);GUN135..LHD..(SP,TP)..6F..(GEN,LA,PH,SA);GGN125,GUN126,136,LAN125,TGN136..(SP,TP)..(GCC,GEN,LA,PH,SA,TWN) Production:2024-08 – 2026-04 Fitment:Matches · configuration
64810-0K050 WINDOW ASSY, BACK 1
Note:GUN135..6FC..SA;GUN125..RHD..L..SA;GGN125,GUN126,136,TGN136..RHD..SA Production:2024-11 – 2026-04 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 64818 —
— Part does not apply to this vehicle configuration. 64819A —
— Part does not apply to this vehicle configuration. 64827D —
— Part does not apply to this vehicle configuration. 64813D —
— Part does not apply to this vehicle configuration. 66243D —
90105-T0135 standard —
Replacements:91553-80820 (fitment: unknown) Fitment:Matches · configuration
90119-T0208 standard —
Replacements:90119-06802 (fitment: unknown) Fitment:Matches · configuration
90467-06169 standard —
Fitment:Matches · configuration

Diagram

14 parts
Toyota HILUX-DOUBLE-CAB 2025 — Roof Panel & Back Panel
