Open RegionYearModelModelCode Details
USA / Canada 2023 HILUX DOUBLE CAB GUN125L-DGFLXF
Catalog: TOYOTA202608 Engine: 2400CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: LATIN AMERICA(EXCEPT ANCOM) Color Code: 3T6 Trim Code: FC20 Production: 202211-202310 Model Short: GUN125L-DGFLXF Region: NA Native Region: US

Toyota HILUX-DOUBLE-CAB 2023 — Vacuum Pump

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90405-09194 UNION 1
Note:2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-08 – 2023-10 Spec:(J) Spec Note:(Japan made)
90405-T0001 UNION 1
Note:2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-08 – 2023-10 Replacements:90405-09194 (fitment: unknown) Spec:(L) Spec Note:(Local made)
29300-11021 PUMP ASSY, VACUUM 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2023-07 Spec:(J),*501 Spec Note:(Japan made),*501(ENGINE NO.=C******-F******)
29300-0E011 PUMP ASSY, VACUUM 1
Note:2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-11 – 2023-10 Replacements:29300-08010 (fitment: unknown) Spec:*468 Spec Note:*468(ENGINE NO.=GXXXXXX-HXXXXXX)
29300-0E011 PUMP ASSY, VACUUM 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2023-12 Replacements:29300-08010 (fitment: unknown) Spec:(L),*501 Spec Note:(Local made),*501(ENGINE NO.=C******-F******)
29343-11020 RING, O VACUUM PUMP, NO.1 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2023-08 Spec:(J),*501 Spec Note:(Japan made),*501(ENGINE NO.=C******-F******)
29343-0E010 RING, O VACUUM PUMP, NO.1 1
Note:2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-11 – 2023-10 Replacements:29343-11020 (fitment: unknown) Spec:*468 Spec Note:*468(ENGINE NO.=GXXXXXX-HXXXXXX)
29343-0E010 RING, O VACUUM PUMP, NO.1 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2024-01 Replacements:29343-11020 (fitment: unknown) Spec:(L),*501 Spec Note:(Local made),*501(ENGINE NO.=C******-F******)
29345-22011 RING, O VACUUM PUMP, NO.3 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2023-08 Spec:(J),*501 Spec Note:(Japan made),*501(ENGINE NO.=C******-F******)
29345-0E010 RING, O VACUUM PUMP, NO.3 1
Note:2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-11 – 2023-10 Replacements:29345-22011 (fitment: unknown) Spec:*468 Spec Note:*468(ENGINE NO.=GXXXXXX-HXXXXXX)
29345-0E010 RING, O VACUUM PUMP, NO.3 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2024-01 Replacements:29345-22011 (fitment: unknown) Spec:(L),*501 Spec Note:(Local made),*501(ENGINE NO.=C******-F******)
29344-22011 RING, O VACUUM PUMP, NO.2 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2023-08 Spec:(J),*501 Spec Note:(Japan made),*501(ENGINE NO.=C******-F******)
29344-0E010 RING, O VACUUM PUMP, NO.2 1
Note:2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-11 – 2023-10 Replacements:29344-22011 (fitment: unknown) Spec:*468 Spec Note:*468(ENGINE NO.=GXXXXXX-HXXXXXX)
29344-0E010 RING, O VACUUM PUMP, NO.2 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2024-01 Replacements:29344-22011 (fitment: unknown) Spec:(L),*501 Spec Note:(Local made),*501(ENGINE NO.=C******-F******)
29314-11020 COVER, END 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2023-08 Spec:(J),*501 Spec Note:(Japan made),*501(ENGINE NO.=C******-F******)
29314-0E010 COVER, END 1
Note:2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-11 – 2023-10 Replacements:29314-11020 (fitment: unknown) Spec:*468 Spec Note:*468(ENGINE NO.=GXXXXXX-HXXXXXX)
29314-0E010 COVER, END 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2024-01 Replacements:29314-11020 (fitment: unknown) Spec:(L),*501 Spec Note:(Local made),*501(ENGINE NO.=C******-F******)
29331-11020 VANE, VACUUM PUMP 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2023-08 Spec:(J),*501 Spec Note:(Japan made),*501(ENGINE NO.=C******-F******)
29331-0E010 VANE, VACUUM PUMP 1
Note:2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-11 – 2023-10 Replacements:29331-11020 (fitment: unknown) Spec:*468 Spec Note:*468(ENGINE NO.=GXXXXXX-HXXXXXX)
29331-0E010 VANE, VACUUM PUMP 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2024-01 Replacements:29331-11020 (fitment: unknown) Spec:(L),*501 Spec Note:(Local made),*501(ENGINE NO.=C******-F******)
29329-37010 CAP, VACUUM PUMP VANE 2
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2023-08 Spec:(J),*501 Spec Note:(Japan made),*501(ENGINE NO.=C******-F******)
29329-0E010 CAP, VACUUM PUMP VANE 2
Note:2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-11 – 2023-10 Replacements:29329-37010 (fitment: unknown) Spec:*468 Spec Note:*468(ENGINE NO.=GXXXXXX-HXXXXXX)
29329-0E010 CAP, VACUUM PUMP VANE 2
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2024-01 Replacements:29329-37010 (fitment: unknown) Spec:(L),*501 Spec Note:(Local made),*501(ENGINE NO.=C******-F******)
29363-25010 SCREW, HOLLOW VACUUM PUMP 5
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2023-08 Spec:(J),*501 Spec Note:(Japan made),*501(ENGINE NO.=C******-F******)
29363-0E010 SCREW, HOLLOW VACUUM PUMP 5
Note:2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-11 – 2023-10 Replacements:29363-36010 (fitment: unknown) Spec:*468 Spec Note:*468(ENGINE NO.=GXXXXXX-HXXXXXX)
29363-0E010 SCREW, HOLLOW VACUUM PUMP 5
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – 2024-01 Replacements:29363-36010 (fitment: unknown) Spec:(L),*501 Spec Note:(Local made),*501(ENGINE NO.=C******-F******)
90201-14099 standard —
90560-T0019 standard —
Replacements:90201-14099 (fitment: unknown)
91551-80825 standard —
90105-T0121 standard —
Replacements:91551-80825 (fitment: unknown)
90401-09003 standard —

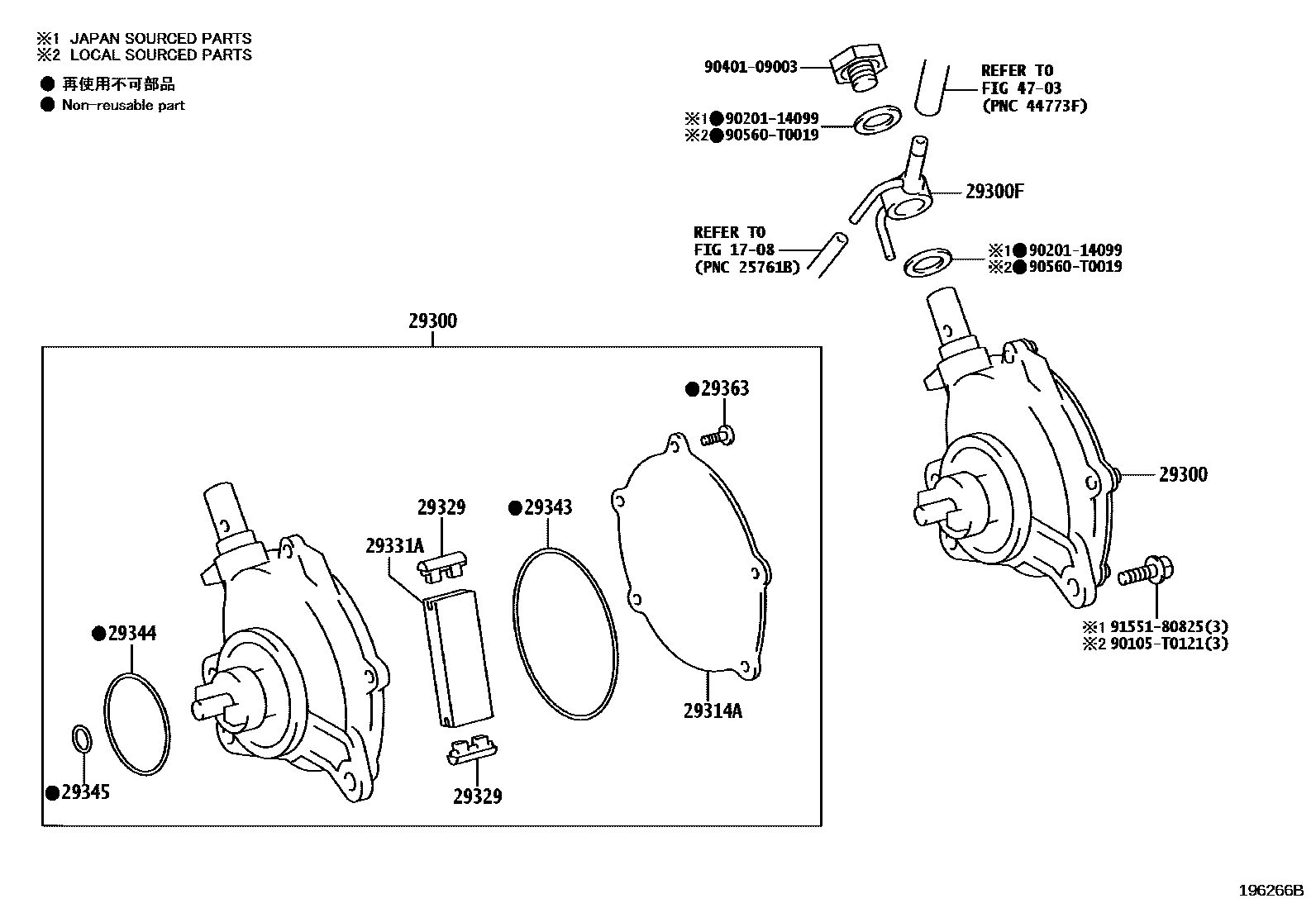

Diagram

31 parts
Toyota HILUX-DOUBLE-CAB 2023 — Vacuum Pump
