USA / Canada 2023 HILUX DOUBLE CAB GUN125L-DGFLXF
Catalog: TOYOTA202608 Engine: 2400CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: LATIN AMERICA(EXCEPT ANCOM) Color Code: 3T6 Trim Code: FC20 Production: 202211-202310 Model Short: GUN125L-DGFLXF Region: NA Native Region: US

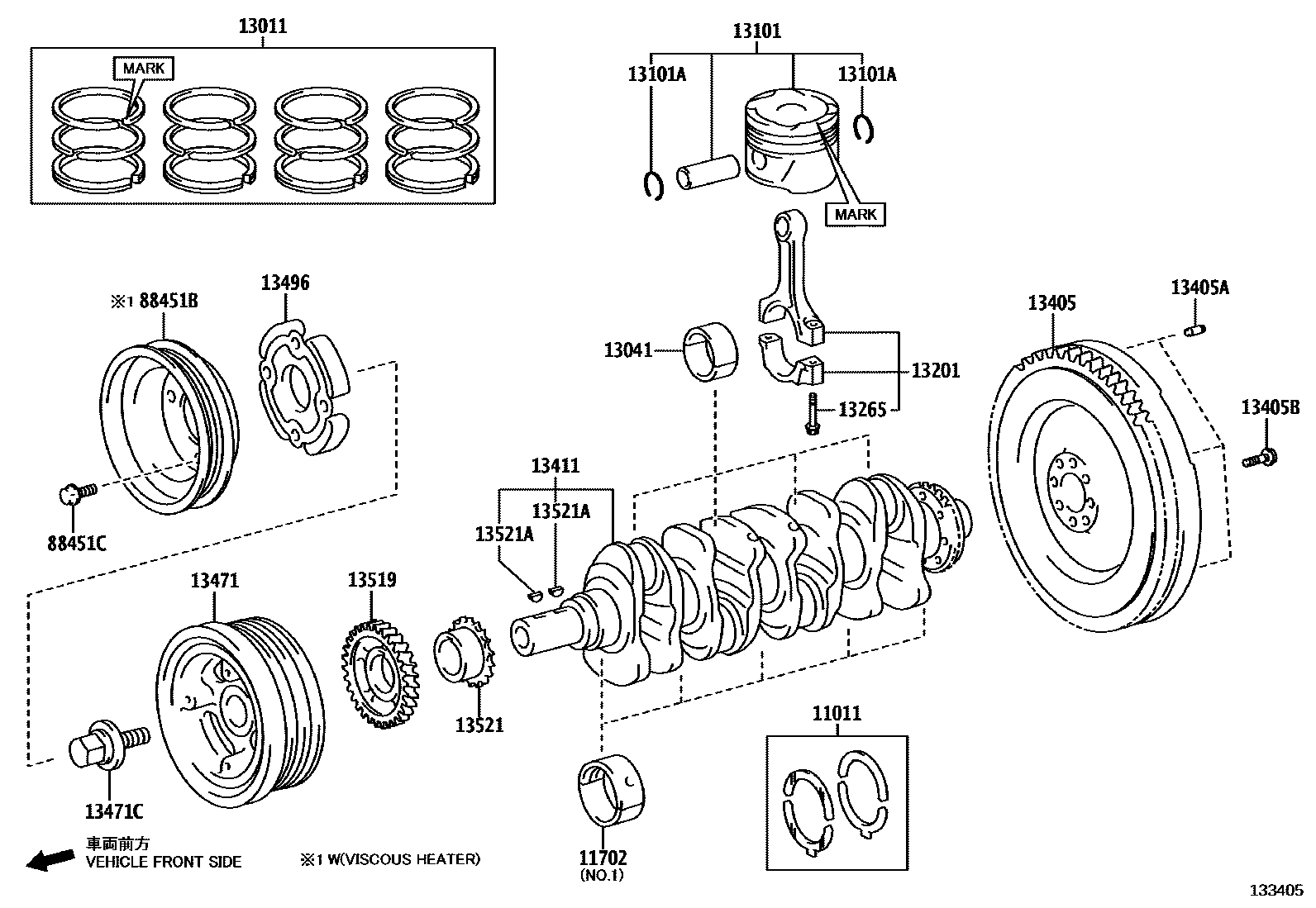

Toyota HILUX-DOUBLE-CAB 2023 — Crankshaft & Piston

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
13101-0E051-01 PISTON SUB-ASSY, W/PIN 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Replacements:13101-11231-01 (fitment: unknown) Spec:STD,MARK 1,MARK=2GD51
13101-0E051-02 PISTON SUB-ASSY, W/PIN 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Replacements:13101-11231-02 (fitment: unknown) Spec:STD,MARK 2,MARK=2GD51
13011-0E042 RING SET, PISTON 1
Note:1GDFTV..GUN126..L..BZAG;1GDFTV..GUN126..AGTP..H..LA;2GDFTV..GUN125,135..AGTP..LA;1GDFTV..GUN126..6FC..S..BZAG;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-08 – 2023-10 Replacements:13011-11221 (fitment: unknown) Spec:STD,MARK=1H,*652 Spec Note:STD,MARK=1H,*652(THAILAND SOURCED PARTS)
90520-32013 RING, HOLE SNAP(FOR PISTON PIN) 8
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10
13041-0E011-02 BEARING, CONNECTING ROD 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Replacements:13041-11051-02 (fitment: unknown) Spec:MARK 2,THA SOURCED PARTS
13041-0E011-03 BEARING, CONNECTING ROD 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Replacements:13041-11051-03 (fitment: unknown) Spec:MARK 3,THA SOURCED PARTS
13041-0E011-04 BEARING, CONNECTING ROD 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Replacements:13041-11051-04 (fitment: unknown) Spec:MARK 4,THA SOURCED PARTS
13041-0E011-05 BEARING, CONNECTING ROD 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Replacements:13041-11051-05 (fitment: unknown) Spec:MARK 5,THA SOURCED PARTS
13041-0E011-06 BEARING, CONNECTING ROD 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Replacements:13041-11051-06 (fitment: unknown) Spec:MARK 6,THA SOURCED PARTS
90119-T0218 BOLT(FOR CRANKSHAFT PULLEY SET) 1
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Replacements:90119-18003 (fitment: unknown) Spec:(L) Spec Note:(Local made)
13496-0E010 COVER, CRANKSHAFT PULLY 1
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Spec:THA SOURCED PARTS
13408-0E011 PULLEY, CRANKSHAFT 1
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Replacements:13408-11061 (fitment: unknown)
13521-0E010 GEAR OR SPROCKET, CRANKSHAFT TIMING 1
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Replacements:13521-11040 (fitment: unknown) Spec:THA SOURCED PARTS
13519-0E010 GEAR, OIL PUMP DRIVE 1
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Replacements:13519-11010 (fitment: unknown) Spec:THA SOURCED PARTS
13201-0E010-A0 ROD SUB-ASSY, CONNECTING 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Replacements:13201-11040-A0 (fitment: unknown) Spec:MARK A,THA SOURCED PARTS
13201-0E010-B0 ROD SUB-ASSY, CONNECTING 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Replacements:13201-11040-B0 (fitment: unknown) Spec:MARK B,THA SOURCED PARTS
13201-0E010-C0 ROD SUB-ASSY, CONNECTING 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Replacements:13201-11040-C0 (fitment: unknown) Spec:MARK C,THA SOURCED PARTS
13201-11040-A0 ROD SUB-ASSY, CONNECTING 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Spec:MARK A,JAPAN SOURCED PARTS
13201-11040-B0 ROD SUB-ASSY, CONNECTING 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Spec:MARK B,JAPAN SOURCED PARTS
13201-11040-C0 ROD SUB-ASSY, CONNECTING 4
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Spec:MARK C,JAPAN SOURCED PARTS
13265-22031 BOLT, CONNECTING ROD 8
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10
11011-0L020 WASHER SET, CRANKSHAFT THRUST 1
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Replacements:11011-30010 (fitment: unknown) Spec:STD,(L) Spec Note:STD,(Local made)
13401-0E010 CRANKSHAFT 1
Note:2GDFTV..GUN125,135..AGTP Production:2022-08 – 2023-10 Spec:THA SOURCED PARTS
90280-T0002 KEY(FOR CRANKSHAFT TIMING GEAR) 2
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Replacements:95161-30516 (fitment: unknown) Spec:(L) Spec Note:(Local made)
95161-30516 KEY(FOR CRANKSHAFT TIMING GEAR) 2
Note:2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-08 – 2023-10 Spec:(J) Spec Note:(Japan made)
90105-T0203 BOLT, FLYWHEEL SETTING 8
Note:1GDFTV..GUN126..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV,2GDFTV..GUN125,13#..AGTP;1GDFTV..GUN126..AGTP..6F..S..LA Production:2022-08 – 2023-10 Replacements:90105-13015 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90250-T0008 PIN, STRAIGHT(FOR FLYWHEEL) 3
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6F Production:2022-08 – 2023-10 Replacements:90250-10192 (fitment: unknown) Spec:L=22,OD=10,(L) Spec Note:L=22,OD=10,(Local made)
13405-0E030 FLYWHEEL SUB-ASSY 1
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP..6F Production:2022-08 – 2023-10 Replacements:13405-11100 (fitment: unknown) Spec:THA SOURCED PARTS
13405-0E070 FLYWHEEL SUB-ASSY 1
Note:1GDFTV..GUN136..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,135..AGTP..6F Production:2022-11 – 2023-10 Spec:ARG SOURCED PARTS
11701-0E010-02 BEARING SET, CRANKSHAFT 5
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Replacements:11701-11030-02 (fitment: unknown) Spec:MARK 2,NO.1,*652 Spec Note:MARK 2,NO.1,*652(THAILAND SOURCED PARTS)
11701-0E010-03 BEARING SET, CRANKSHAFT 5
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Replacements:11701-11030-03 (fitment: unknown) Spec:MARK 3,NO.1,*652 Spec Note:MARK 3,NO.1,*652(THAILAND SOURCED PARTS)
11701-0E010-04 BEARING SET, CRANKSHAFT 5
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Replacements:11701-11030-04 (fitment: unknown) Spec:MARK 4,NO.1,*652 Spec Note:MARK 4,NO.1,*652(THAILAND SOURCED PARTS)
11701-0E010-05 BEARING SET, CRANKSHAFT 5
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Replacements:11701-11030-05 (fitment: unknown) Spec:MARK 5,NO.1,*652 Spec Note:MARK 5,NO.1,*652(THAILAND SOURCED PARTS)
11701-0E010-06 BEARING SET, CRANKSHAFT 5
Note:1GDFTV,2GDFTV..GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Replacements:11701-11030-06 (fitment: unknown) Spec:MARK 6,NO.1,*652 Spec Note:MARK 6,NO.1,*652(THAILAND SOURCED PARTS)
90119-T0236 BOLT, FLANGE W/WASHER 4
Note:GUN125,126,13#..AGTP Production:2022-08 – 2023-10 Replacements:91671-80814 (fitment: unknown)
