Toyota Corolla 2014 — Mounting
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 12305-0T170 | INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | 1 | |
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2015-05 Replacements:12305-0T171 (fitment: unknown) | |||
| 12315-37030 | BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | 1 | |
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2015-01 | |||
| 12371-0T270 | INSULATOR, ENGINE MOUNTING, REAR | 1 | |
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 | |||
| 12511-0T030 | BRACKET, ALTERNATOR, NO.1 | 1 | |
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:12511-37010 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 12511-37010 | BRACKET, ALTERNATOR, NO.1 | 1 | |
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(J) Spec Note:(Japan made) | |||
| 43409-02010 | INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | 1 | |
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:NO.1 | |||
| 43498-02020 | INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | 1 | |
Note:2ZRFE..ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:NO.2 | |||
| 12361-0T220 | INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | 1 | |
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 | |||
| 12311-0T380 | BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | 1 | |
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 | |||
| 12351-26010 | DAMPER, ENGINE MOUNTING | 1 | |
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 | |||
| 12321-0T420 | BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | 1 | |
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 | |||
| 12351-37120 | DAMPER, ENGINE MOUNTING | 1 | |
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 | |||
| 12372-0T340 | INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | 1 | |
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 | |||
| 12325-0T370 | BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | 1 | |
Note:2ZRFE..ZRE172..6F Production:2013-08 – 2016-08 | |||
| 90179-08068 | standard | — | |
| 90178-A0024 | standard | — | |
| 90116-12053 | standard | — | |
| 90119-A0010 | standard | — | |
| 90119-A0083 | standard | — | |
| 90178-10028 | standard | — | |
| 90178-A0077 | standard | — | |
Replacements:90178-10029 (fitment: unknown) | |||
| 91551-F0825 | standard | — | |
| 91552-81080 | standard | — | |
| 90105-A0158 | standard | — | |
| 90178-A0080 | standard | — | |
Replacements:94151-21241 (fitment: unknown) | |||
| 90105-A0167 | standard | — | |
Replacements:91552-81080 (fitment: unknown) | |||
| 90179-08256 | standard | — | |
| 90105-A0154 | standard | — | |
Replacements:91552-K1025 (fitment: unknown) | |||
| 90105-A0230 | standard | — | |
Replacements:90105-10562 (fitment: unknown) | |||
| 90105-A0268 | standard | — | |
| 90105-A0034 | standard | — | |
| 90105-A0241 | standard | — | |
| 91551-L0845 | standard | — | |
| 90105-A0173 | standard | — | |
Replacements:91551-L0845 (fitment: unknown) | |||

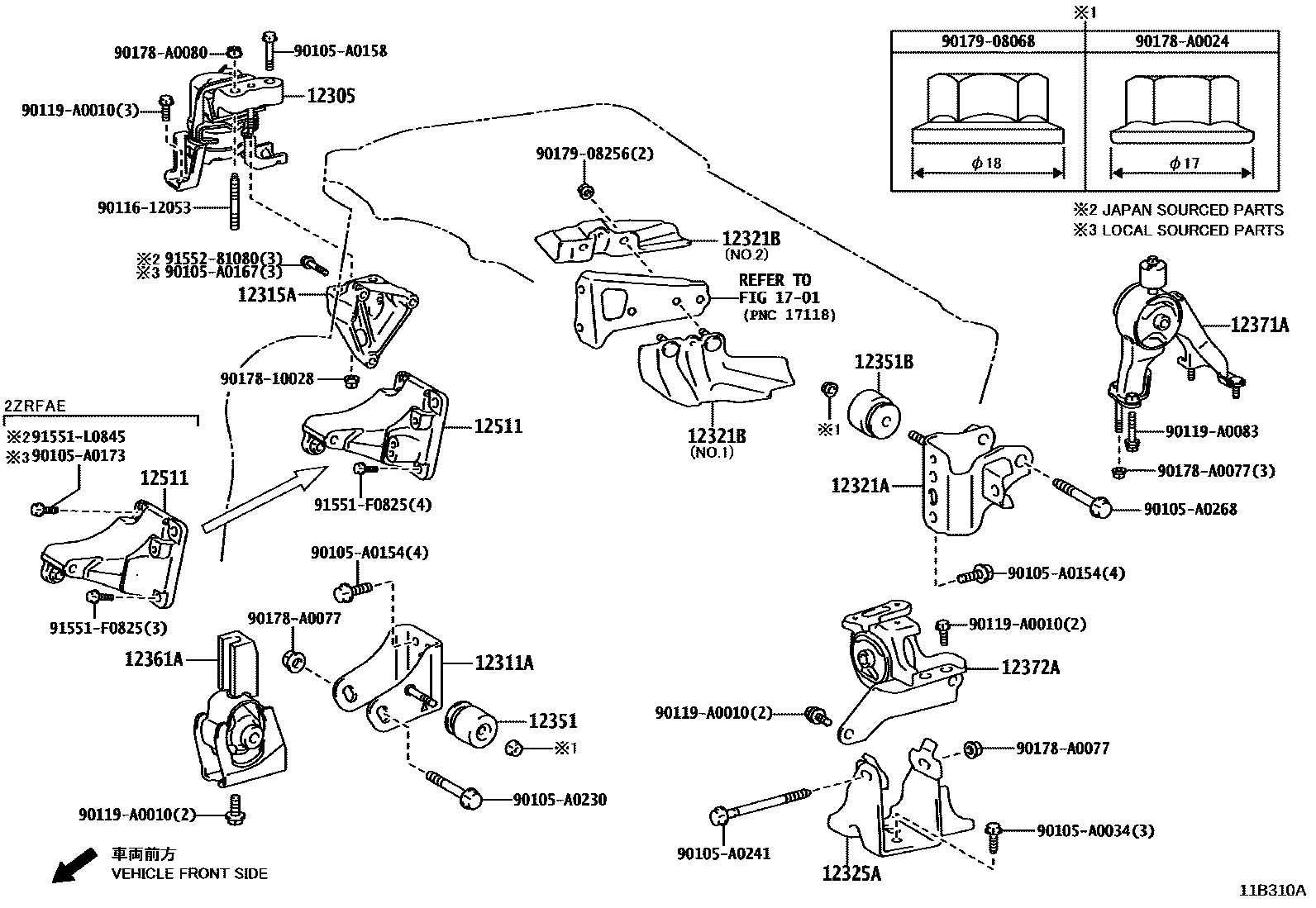

Diagram
34 parts
