Toyota Camry-Hybrid 2013 — Starter
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 28226-28041 | STARTER KIT, MOTOR TERMINAL | 1 | |
Note:2ARFE,2GRFE..ASV50,GSV50 Production:2011-09 – 2014-09 | |||
| 28226-28051 | STARTER KIT, REPAIR SERVICE | 1 | |
Note:2ARFE,2GRFE..ASV50,GSV50 Production:2011-09 – 2014-09 | |||
| 28132-28040 | COVER, STARTER COMMUTATOR END FRAME | 1 | |
Note:2ARFE,2GRFE..ASV50,GSV50 Production:2011-09 – 2014-09 | |||
| 28120-28060 | YOKE ASSY, STARTER | 1 | |
Note:2ARFE,2GRFE..ASV50,GSV50 Production:2011-09 – 2014-09 | |||
| 28160-28040 | ARMATURE ASSY, STARTER | 1 | |
Note:2ARFE,2GRFE..ASV50,GSV50 Production:2011-09 – 2014-09 | |||
| 28177-28040 | PLATE(FOR STARTER ARMATURE) | 1 | |
Note:2ARFE,2GRFE..ASV50,GSV50 Production:2011-09 – 2014-09 | |||
| 28100-0A011 | STARTER ASSY | 1 | |
Note:2ARFE,2GRFE..ASV50,GSV50 Production:2011-09 – 2014-09 Spec:12V 1.7KW | |||
| 28130-20020 | FRAME ASSY, STARTER COMMUTATOR END | 1 | |
Note:2ARFE,2GRFE..ASV50,GSV50 Production:2011-09 – 2014-09 | |||
| 28255-0A010 | GEAR, PLANET | 3 | |
Note:2ARFE,2GRFE..ASV50,GSV50 Production:2011-09 – 2014-09 Replacements:28255-20020 (fitment: unknown) | |||
| 90080-18070 | standard | — | |
Replacements:90182-T0011 (fitment: unknown) | |||
| 90099-04572 | standard | — | |
| 90099-07068 | standard | — | |
| 90099-02228 | standard | — | |
| 90080-11340 | standard | — | |
Replacements:91612-61035 (fitment: unknown) | |||
| 90099-05178 | standard | — | |
| 90099-04561 | standard | — | |

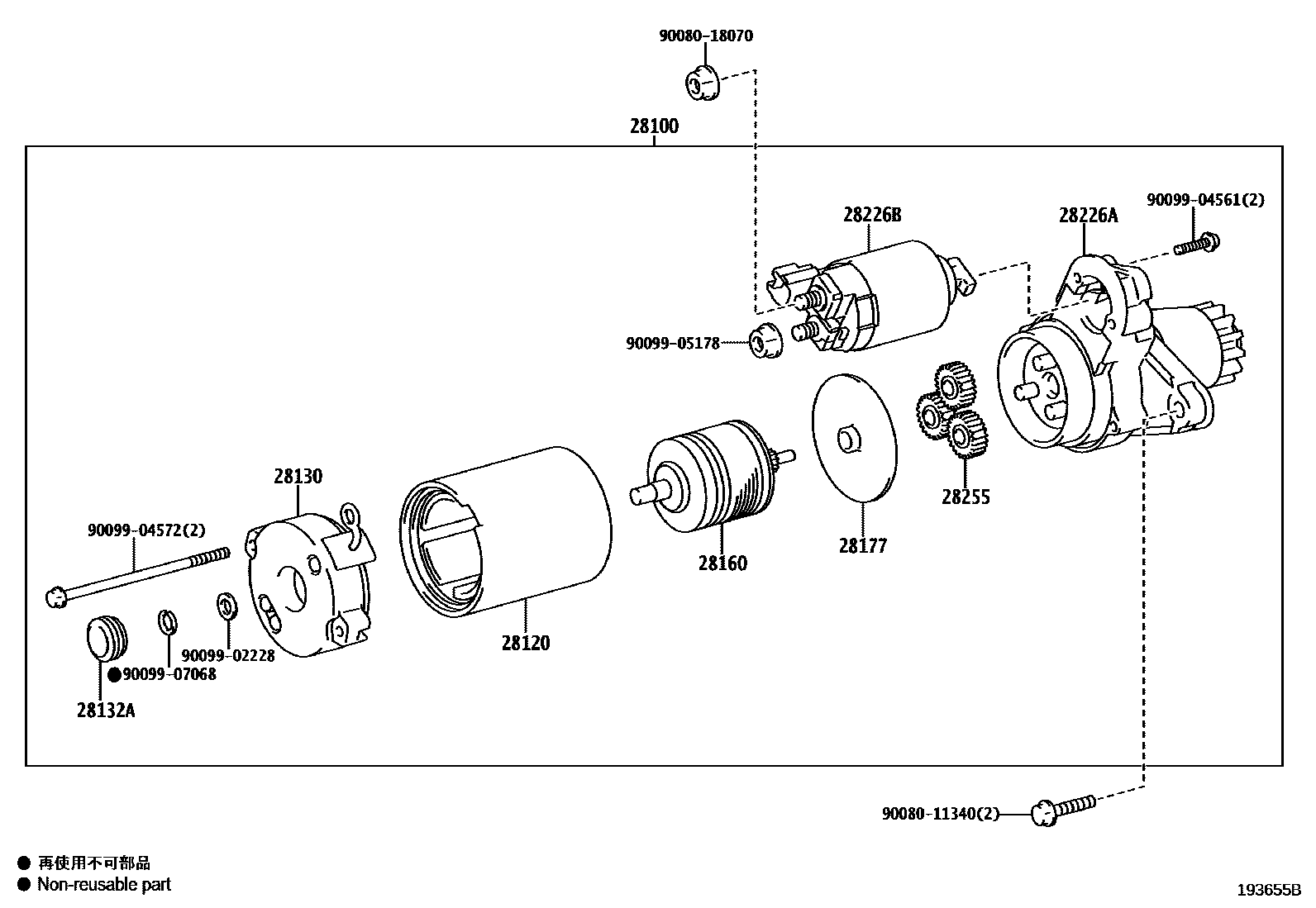

Diagram
16 parts
