Open RegionYearModelModelCode Details
General 2021 L200 TRITON STRADA KL1T
Catalog: MMC202408 Color Code: W32A Frame Mask: KJ-L# Model Short: KL1T Modification: 2400DIESEL(4N15)/4WD - U-LINE(W-CAB),6FM/T LHD Options: F07: LSD (C); ANTI-POLL ENG (EU-STEP4); FILLER NECK (POOR QUALITY FUEL); URETHANE COVER STEERING WHEEL; AM/FM MULTI ETR RADIO + CAS/PLAY (D); 3 POINT RR S/BELT (X2); RR SEAT H/REST; HEIGHT CONTROL SEAT; SPECIAL SEAT TRIM; CHILD RESTRAINT ANCHOR; ELR WITH PRETENSIONER; CENTER ARMREST; FLOOR MAT (B); P/W + AUTO DOOR LOCK; RR WINDOW DEFOGGER; FRONT SKID PLATE; EXTERIOR MATERIAL COLOR; SPECIAL ORNAMENT OR MARK; HIGH-MOUNT STOP LAMP; USB PORT; FOG LAMP; A/C; AIR FILTER; RR WINDOW DEFOGGER + A/C; P/W+AUTO DR LOCK+AUTO DR LOCKING+ANTENNA+4SPEAKER; 3 POINT RR S/BELT(X2) + CHILD RESTRAINT ANCHOR; 3P RR S/BELT+H/REST+CHILD RESTRAINT ANCHOR; ANTI-POLL ENG (EU-STEP4) + PHILIPPINE SPEC; COVER S/WHL+STRG CONT SW+RR FOG LP+FOG LP+AIR BAG; FOG LP+DRL+LICENCE PLATE BRKT+PHI SPEC+INA SPEC; A/C + AIR FILTER; IMMOBILIZER; ACC PARTS - BED LINER (A); AUTO DOOR LOCKING SYSTEM; TOOL SET; LICENCE PLATE BRACKET; AIR BAG (DRIVER + PASSENGER SIDE); PHILIPPINE SPEC; ASEAN NCAP (B); MUST INSTALL NCAP; DON'T INSTALL PRIVACY GLASS; DON'T INSTALL LDW Production: 201906-202407 Production Date: 202108 Trim Code: 33L Year: 2021 Region: OTHER Native Region: M80

Mitsubishi L200-TRITON-STRADA 2021 — Clutch Control / LHD

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
2345A053 CYLINDER ASSY,CLUTCH MASTER 1
Production:2021-08 – 2022-02
MR448212 CLIP,CLUTCH M/CYL 1
Production:2021-08 – 2022-02 Spec:6.4 Size:6.4
MF473492 PIN,CLUTCH M/CYL 1
Production:2021-08 – 2022-02 Spec:CLEVIS,10X23 Size:10X23 Shape:CLEVIS
MB858800 PIN,CLUTCH M/CYL 1
Production:2021-08 – 2022-02 Spec:SNAP,10 Size:10 Shape:SNAP
MB555016 SEAL,CLUTCH M/CYL 1
Production:2021-08 – 2022-02
MS440503 NUT,CLUTCH M/CYL 2
Note:ALL Production:2019-06 – … Spec:WASHER ASSEMBLED,8 Size:8 Shape:WASHER ASSEMBLED
2348A307 TUBE,CLUTCH M/CYL 1
Production:2021-08 – 2022-02
2345A075 RESERVOIR,CLUTCH FLUID 1
Production:2021-08 – 2022-02
2345A076 CAP,CLUTCH FLUID RESERVOIR 1
Production:2021-08 – 2022-02
MR244930 PIN,CLUTCH M/CYL 1
Production:2021-08 – 2022-02
MR244929 SEAL,CLUTCH M/CYL 1
Production:2021-08 – 2022-02
2345A071 CYLINDER KIT,CLUTCH MASTER 1
Production:2021-08 – 2022-02
2345A074 PUSH ROD,CLUTCH M/CYL 1
Production:2021-08 – 2022-02
MB555284 EYEBOLT,CLUTCH M/CYL 1
Production:2021-08 – 2022-02 Replacements:MU001929 (fitment: unknown)
MA111832 GASKET,CLUTCH M/CYL 2
Production:2021-08 – 2022-02 Spec:10.2 Size:10.2
2348A293 HOSE,CLUTCH RELEASE CYLINDER 1
Production:2021-08 – 2022-02
MA431825 CLIP,CLUTCH FLUID LINE 1
Production:2021-08 – 2022-02
22 110 standard — —
35 610 standard — —

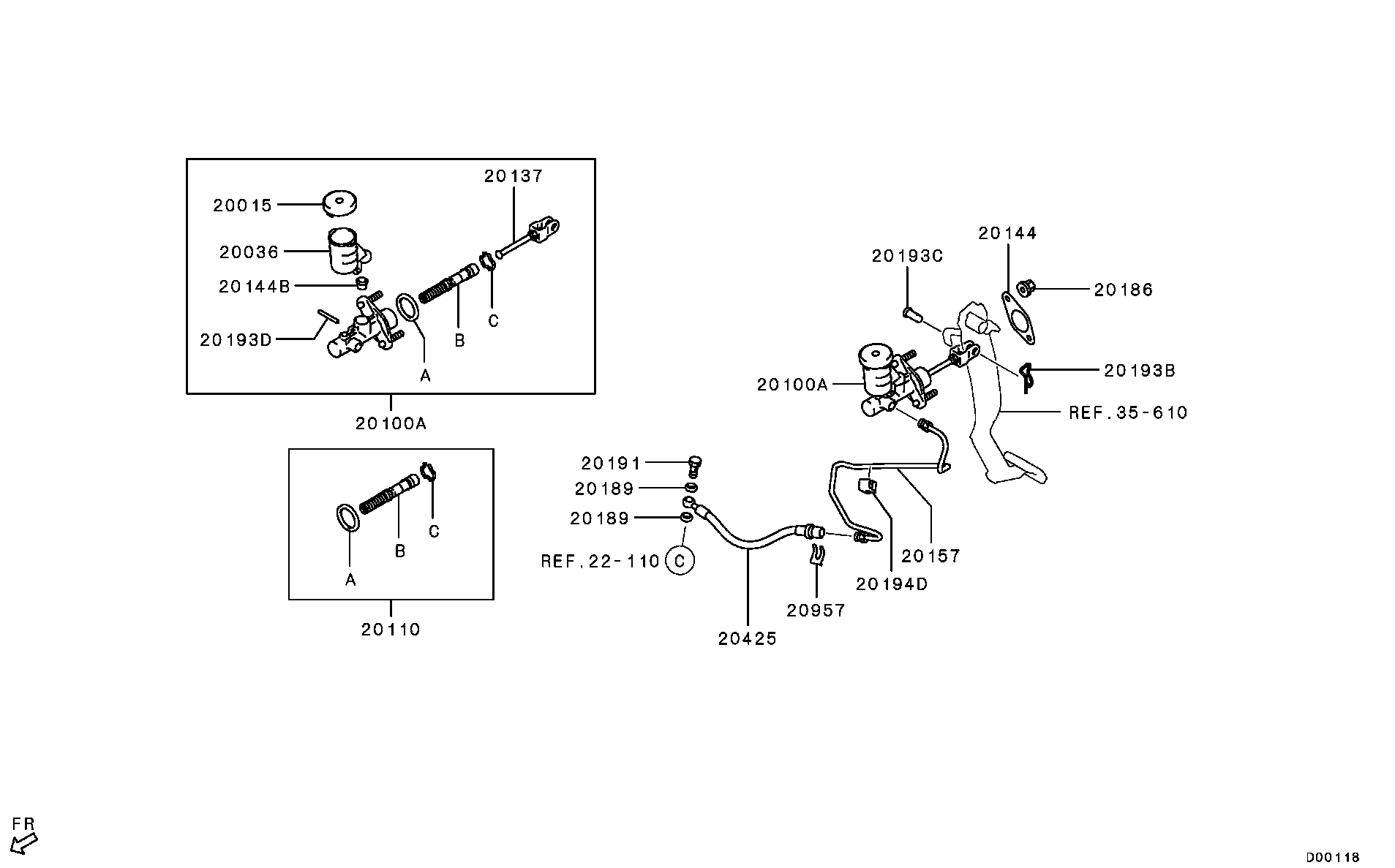

Diagram

19 parts
Mitsubishi L200-TRITON-STRADA 2021 — Clutch Control / LHD
