General 2018 PAJERO MONTERO LONG G EXP V97W
Catalog: MMC202408 Color Code: W37A Frame Mask: V90# Model Short: V97W Modification: 3800/LONG WAGON<07M-> - GLS(NSS4/EURO4),5FA/T Options: E79: AL/WHL; AUTO SPEED CONTROL (= CRUISE CONTROL); STEERING AUDIO SWITCH; AUDIO SYSTEM (3); FR POWER SEAT (LEATHER); COVER; ASHTRAY; TONNEAU COVER; SUNROOF; AIR DEFLECTER; SIDE STEP; DISCHARGE HEADLAMP; TEL COMMUNICATION SYSTEM; TEL COMMUNICATION SYSTEM (B); FOG LAMP; BACK SENSOR; COVER + SUNROOF; COVER+S/R+NOISE INSULATOR+FR POWER ST(LEA),A/BAG; NOISE INSULATOR + FR POWER SEAT(LEATHER), A/BAG; FOG LAMP + DISCHARGE HEADLAMP; S/R + AIR BAG; TONNEAU COVER+AIR BAG(DVR/PASS SIDE,SIDE CURTAIN); AIR DEFLECTOR + MECHANICAL THEFT PROTECTION; BACK SENSOR + DISCHARGE H/LAMP; MULTI VISION + BACK SENSOR; MULTI VISION + BACK SENSOR; AUDIO, NAVI UNIT, S/R, SIDE STEP, DUAL AUTO A/C; AUTO SPEED CONT + STRG AUDIO SW + TEL COM SYS; SUNROOF + COVER; TEL COMMUNICATION SYS + NAVI UNIT , AUDIO RELATION; S/R + ROOF RACK; MECHANICAL THEFT PROTECTION; ROOF CARRIER ATTACHMENT; NOISE INSULATOR (C); DVD VIDEO REGION (2); DON'T INSTALL PRIVACY GLASS Production: 200608-202106 Production Date: 201802 Trim Code: 60E Year: 2018 Region: OTHER Native Region: M80

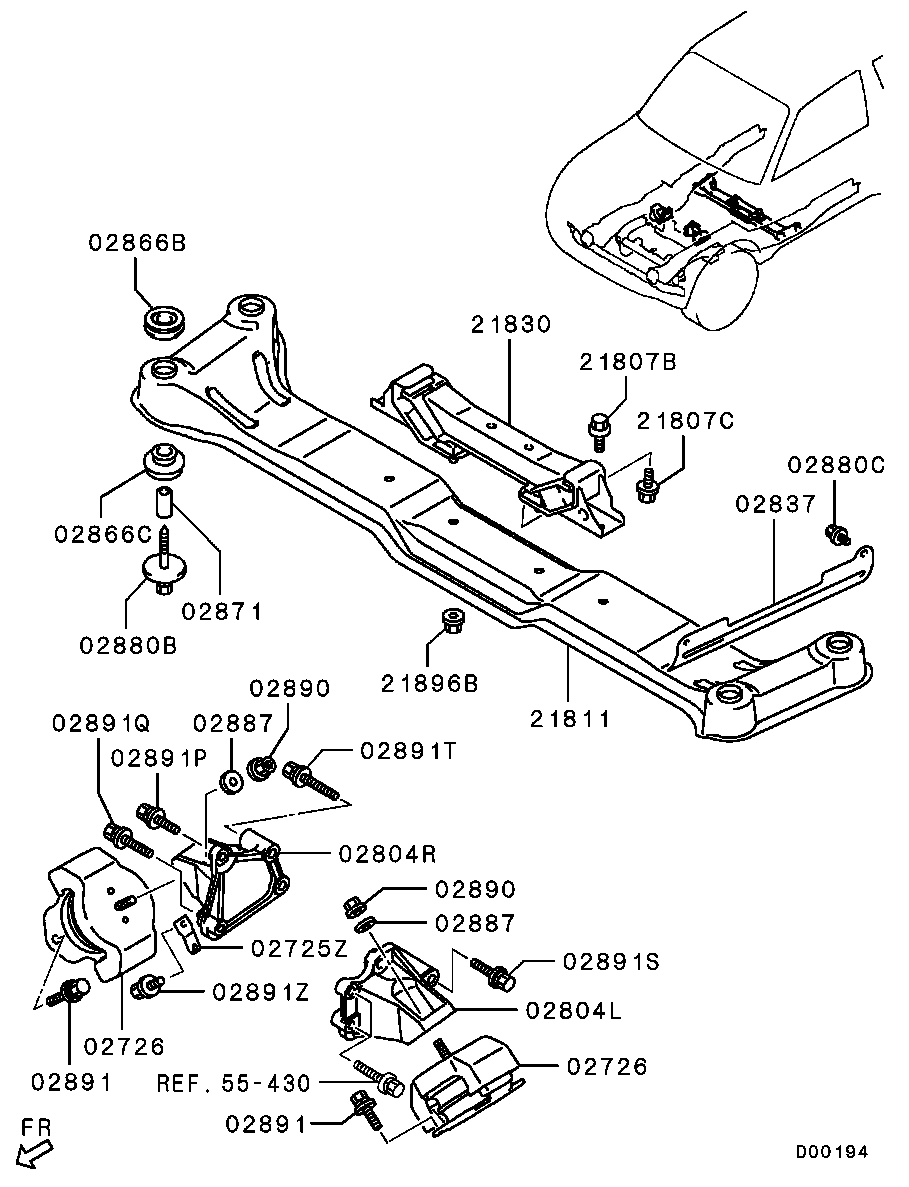

Mitsubishi PAJERO-MONTERO-LONG-G-EXP 2018 — Engine Mounting & Support / A/T

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
MD320625 WASHER,ENG MOUNTING 2
Note:ALL Production:2006-08 – 2021-06 Spec:PLAIN,10.5 Size:10.5 Shape:PLAIN
MD189541 NUT,ENG MOUNTING 2
Note:ALL Production:2006-08 – 2021-06 Spec:FLANGE,10 Size:10 Shape:FLANGE
MF303397 BOLT,ENG MOUNTING 2
Note:ALL Production:2009-03 – 2021-06 Spec:WASHER ASSEMBLED,12X65 Size:12X65 Shape:WASHER ASSEMBLED
MF303371 BOLT,ENG MOUNTING 1
Note:ALL Production:2009-03 – 2021-06 Spec:WASHER ASSEMBLED,10X50 Size:10X50 Shape:WASHER ASSEMBLED
MF911142 BOLT,ENG MOUNTING 1
Note:ALL Production:2012-04 – 2021-06 Spec:FLANGE,6X12 Size:6X12 Shape:FLANGE
MD362085 BRACKET,ENG MOUNTING CONNECTOR 1
Note:ALL Production:2009-03 – 2021-06
MD367196 BRACKET,CYLINDER BLOCK ENG MOUNTING,RH 1
Note:ALL Production:2009-03 – 2021-06
MF303391 BOLT,ENG MOUNTING 2
Note:ALL Production:2009-03 – 2021-06 Spec:WASHER ASSEMBLED,12X38 Size:12X38 Shape:WASHER ASSEMBLED
MF244880 BOLT,ENG MOUNTING 4
Note:ALL Production:2006-08 – 2021-06 Spec:WASHER ASSEMBLED,10X25 Size:10X25 Shape:WASHER ASSEMBLED
MR510056 INSULATOR,ENG MOUNTING 2
Note:ALL Production:2006-08 – 2021-06
MD367195 BRACKET,CYLINDER BLOCK ENG MOUNTING,LH 1
Note:ALL Production:2009-03 – 2021-06
MF303365 BOLT,ENG MOUNTING 1
Note:ALL Production:2009-03 – 2021-06 Spec:WASHER ASSEMBLED,10X30 Size:10X30 Shape:WASHER ASSEMBLED
MF911632 BOLT,T/M MOUNTING 2
Note:ALL Production:2011-09 – 2021-06 Spec:FLANGE,10X20 Size:10X20 Shape:FLANGE
2910A066 BUSHING,ENG RR MOUNTING 4
Note:ALL Production:2006-08 – 2021-06
2910A065 BUSHING,ENG RR MOUNTING 4
Note:ALL Production:2006-08 – 2021-06
MR418596 BOLT,ENG RR MOUNTING 4
Note:ALL Production:2006-08 – 2021-06 Spec:WASHER ASSEMBLED,10X85 Size:10X85 Shape:WASHER ASSEMBLED
MN125541 CROSSMEMBER,T/M MOUNTING 1
Note:ALL Production:2012-07 – 2021-06
— Part does not apply to this vehicle configuration. 02880C —
MF244880 BOLT,T/M MOUNTING 2
Note:ALL Production:2012-07 – 2021-06 Spec:WASHER ASSEMBLED,10X25 Size:10X25 Shape:WASHER ASSEMBLED
MR448194 INSULATOR,T/M MOUNTING 1
Note:ALL Production:2012-07 – 2021-06
— Part does not apply to this vehicle configuration. 02837 —
MF434105 NUT,T/M MOUNTING 2
Note:ALL Production:2006-08 – 2021-06 Spec:FLANGE,10 Size:10 Shape:FLANGE
MR455725 COLLAR,ENG RR MOUNTING 4
Note:ALL Production:2006-08 – 2021-06
55 430 standard — —

Diagram

22 parts
Mitsubishi PAJERO-MONTERO-LONG-G-EXP 2018 — Engine Mounting & Support / A/T
