Mitsubishi Mirage-Mmna 2000 — Engine Mounting & Support / All
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| MB176638 | NUT,ENG MOUNTING | 1 | |
Note:ALL Production:1996-05 – 2001-05 Spec:WASHER ASSEMBLED,12 Size:12 Shape:WASHER ASSEMBLED | |||
| MR197536 | STOPPER,ENG FR MOUNTING CUSHION | 2 | |
Note:ALL Production:1996-05 – 2001-05 | |||
| MF241295 | BOLT,ENG MOUNTING | 1 | |
Note:ALL Production:1996-05 – 2001-05 Spec:WASHER ASSEMBLED,10X75 Size:10X75 Shape:WASHER ASSEMBLED | |||
| MF241298 | BOLT,ENG MOUNTING | 1 | |
Note:ALL Production:1996-05 – 2001-05 Spec:WASHER ASSEMBLED,10X90 Size:10X90 Shape:WASHER ASSEMBLED | |||
| MD314973 | BRACKET,CYLINDER BLOCK ENG FR MOUNTING | 1 | |
Note:ALL Production:1996-05 – 2000-05 | |||
| MB288462 | NUT,ENG MOUNTING | 2 | |
Note:ALL Production:1996-05 – 2001-05 Spec:FLANGE SELF LOCKING,10 Size:10 Shape:FLANGE SELF LOCKING | |||
| MD171367 | STUD,ENG MOUNTING | 2 | |
Note:ALL Production:1996-05 – 2001-05 Spec:10X65 Size:10X65 | |||
| MS241088 | BOLT,ENG MOUNTING | 1 | |
Note:ALL Production:1996-05 – 2001-05 Spec:WASHER ASSEMBLED,10X95 Size:10X95 Shape:WASHER ASSEMBLED | |||
| MU100027 | BOLT,ENG MOUNTING | 1 | |
Note:ALL Production:1996-05 – 2001-05 Spec:12X108 Size:12X108 | |||
| MB871932 | BOLT,ENG MOUNTING | 1 | |
Note:ALL Production:1996-05 – 2001-05 Spec:WASHER ASSEMBLED,10X70 Size:10X70 Shape:WASHER ASSEMBLED | |||
| MF240022 | BOLT,ENG MOUNTING | 2 | |
Note:ALL Production:1996-05 – 2001-05 Spec:WASHER ASSEMBLED,6X10 Size:6X10 Shape:WASHER ASSEMBLED | |||
| MB914969 | DAMPER,ENG MOUNTING BRACKET DYNAMIC | 1 | |
Note:ALL Production:1996-05 – 2001-05 | |||
| MR130551 | BRACKET,ENG FR MOUNTING | 1 | |
Note:ALL Production:1996-05 – 2001-05 | |||
| MD183192 | COVER,ENG FR MOUNTING HOLE | 1 | |
Note:ALL Production:1996-05 – 2001-05 | |||
| MF140273 | BOLT,ENG SUPPORT ROD | 1 | |
Note:ALL Production:1996-05 – 2001-05 Spec:FLANGE,10X75 Size:10X75 Shape:FLANGE Remarks:7T | |||
| MF104928 | BOLT,T/M MOUNTING | 1 | |
Note:ALL Production:1996-05 – 2001-05 Spec:BOLT,12X110 Size:12X110 Shape:BOLT Remarks:7T | |||
| MF434106 | NUT,T/M MOUNTING | 4 | |
Note:ALL Production:1996-05 – 2001-05 Spec:FLANGE,12 Size:12 Shape:FLANGE | |||
| MF434106 | NUT,T/M MOUNTING | 1 | |
Note:ALL Production:1996-05 – 2001-05 Spec:FLANGE,12 Size:12 Shape:FLANGE | |||
| MR197612 | STOPPER,T/M MOUNTING | 1 | |
Note:ALL Production:1996-05 – 2001-05 Remarks:FOR RR | |||
| MR131308 | BRACKET,T/M MOUNTING BODY SIDE | 1 | |
Note:4FA/T Production:1999-06 – 2000-05 | |||
| MR197613 | STOPPER,T/M MOUNTING | 1 | |
Note:ALL Production:1996-05 – 2001-05 Remarks:FOR FR | |||
| MF241280 | BOLT,ENG SUPPORT ROD | 4 | |
Note:ALL Production:1996-05 – 2001-05 Spec:WASHER ASSEMBLED,10X20 Size:10X20 Shape:WASHER ASSEMBLED | |||
| MF434105 | NUT,ENG SUPPORT ROD | 2 | |
Note:ALL Production:1996-05 – 2001-05 Spec:FLANGE,10 Size:10 Shape:FLANGE | |||
| MR131296 | BRACKET,ENG ROLL STOPPER,RH | 1 | |
Note:4FA/T Production:1999-06 – 2000-05 | |||
| MB871930 | BOLT,ENG SUPPORT ROD | 1 | |
Note:ALL Production:1996-05 – 2001-05 Spec:CONE POINT,10X81 Size:10X81 Shape:CONE POINT | |||
| MR316526 | BRACKET,ENG ROLL STOPPER,LH | 1 | |
Note:4FA/T Production:1999-06 – 2000-05 | |||

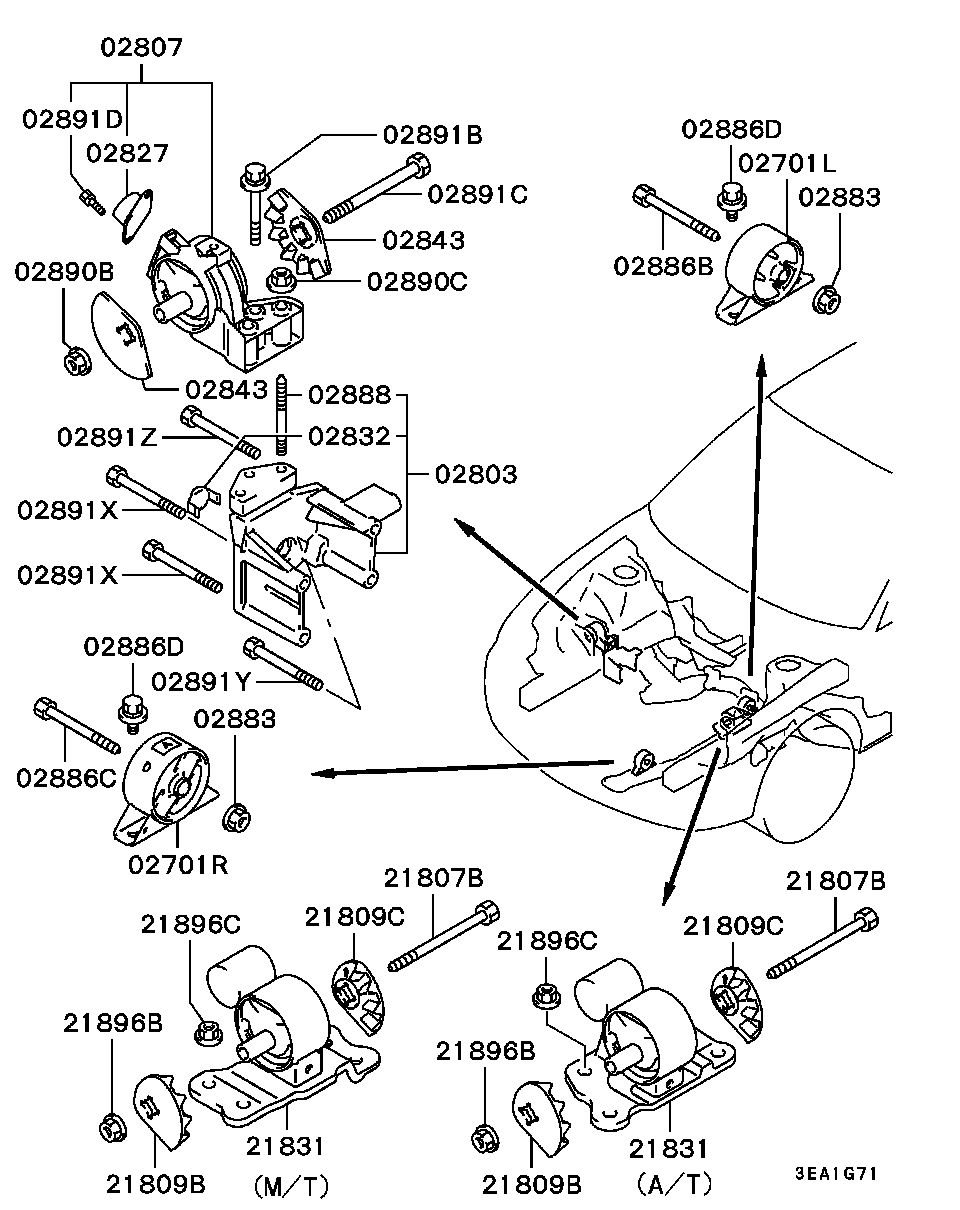

Diagram
26 parts
