Lexus RX350-450H 2009 — Windshield Wiper
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89941-30020 | SENSOR, RAIN | 1 | |
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2010-07 Spec:INTERMITTENT WIPER-AUTO(RAIN SENSOR) | |||
| 89943-22030 | COVER, RAIN SENSOR | 1 | |
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 Spec:INTERMITTENT WIPER-AUTO(RAIN SENSOR) | |||
| 89944-42010 | TAPE, RAIN SENSOR | 1 | |
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 Spec:INTERMITTENT WIPER-AUTO(RAIN SENSOR) | |||
| 85012-48020 | CRANK SUB-ASSY, FRONT WIPER | 1 | |
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 | |||
| 85110-58090 | MOTOR ASSY, WINDSHIELD WIPER | 1 | |
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 | |||
| 85150-48170 | LINK ASSY, WINDSHIELD WIPER | 1 | |
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 | |||
| 85211-48150 | ARM, FRONT WIPER, RH | 1 | |
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 | |||
| 85212-48150 | BLADE, FR WIPER, RH | 1 | |
Note:GGL1#,GYL1#..JPP Production:2009-03 – 2012-03 | |||
| 85214-53080 | RUBBER, WIPER, RH | 1 | |
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 | |||
| 85214-68020 | RUBBER, WIPER, LH | 1 | |
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 Replacements:85214-52110 (fitment: unknown) | |||
| 85221-48150 | ARM, FRONT WIPER, LH | 1 | |
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 | |||
| 85222-52170 | BLADE, FR WIPER, LH | 1 | |
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 | |||
| 85292-13010 | CAP, FRONT WIPER ARM HEAD | 1 | |
Note:GGL1#,GYL1#..JPP Production:2008-12 – 2012-03 | |||
| 90176-10005 | standard | — | |
| 90119-06864 | standard | — | |

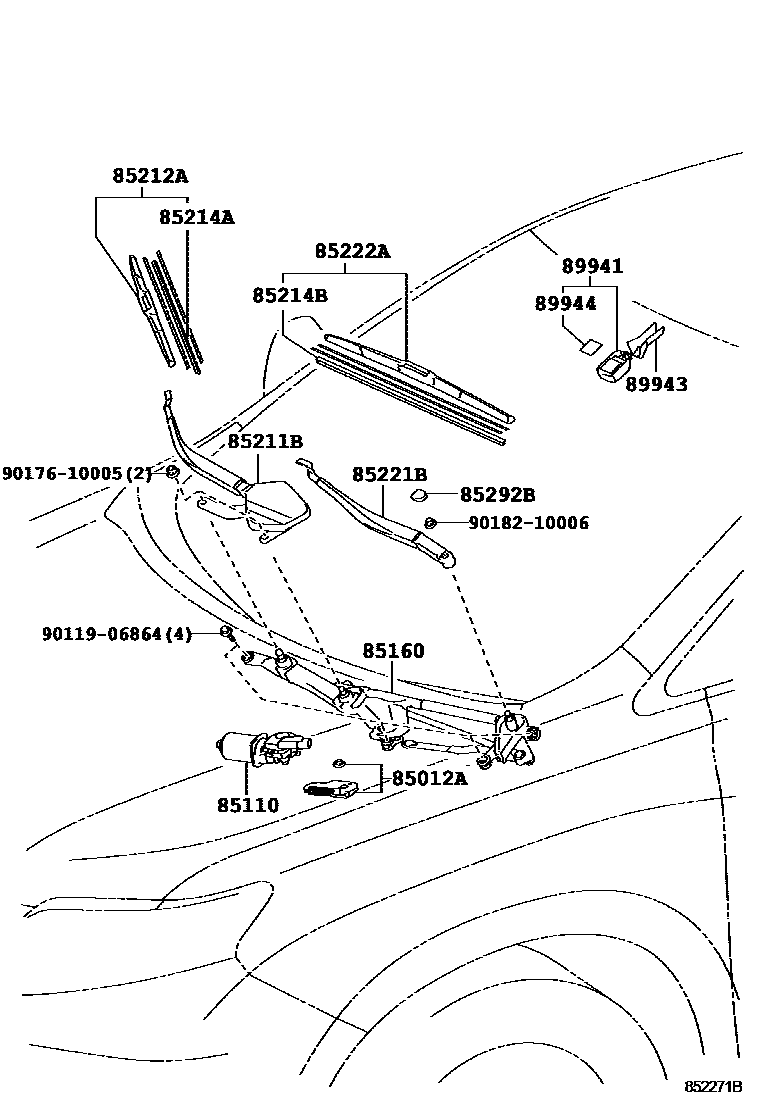

Diagram
15 parts
