Open RegionYearModelModelCode Details
Europe 2017 RX SERIES AGL25L-AWTGZW
Catalog: LEXUS202608 Engine: 2000CC 16-VALVE DOHC EFI TURBO Transmission Description: AUTOMATIC TRANSMISSION Body Description: WAGON Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Color Code: 1J7 Trim Code: LB04 Production: 201509-201908 Model Short: AGL25L-AWTGZW Region: EU Native Region: EU

Lexus RX-SERIES 2017 — Ventilation Hose

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90466-30001 CLIP(FOR VENTILATION HOSE) 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08 Spec:NO.2:REFER ILLUST.
96137-52501 CLIP(FOR VENTILATION HOSE) 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08 Spec:NO.1:REFER ILLUST.
12204-36050 VALVE SUB-ASSY, VENTILATION 1
Note:8ARFTS..AGL2# Production:2015-09 – 2018-03
12262-36070 HOSE, VENTILATION, NO.2 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
90466-16004 CLIP(FOR VENTILATION HOSE NO.2) 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
96137-41901 CLIP(FOR VENTILATION HOSE NO.2) 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
12263-36010 HOSE, VENTILATION, NO.3 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
96136-52101 CLIP(FOR VENTILATION HOSE) 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
96136-52101 CLIP(FOR VENTILATION HOSE) 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
12261-36090 HOSE, VENTILATION 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
96137-52501 CLIP OR CLAMP(FOR VENTILATION HOSE) 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
90466-30001 CLIP OR CLAMP(FOR VENTILATION HOSE) 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
12264-36020 HOSE, VENTILATION, NO.4 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08

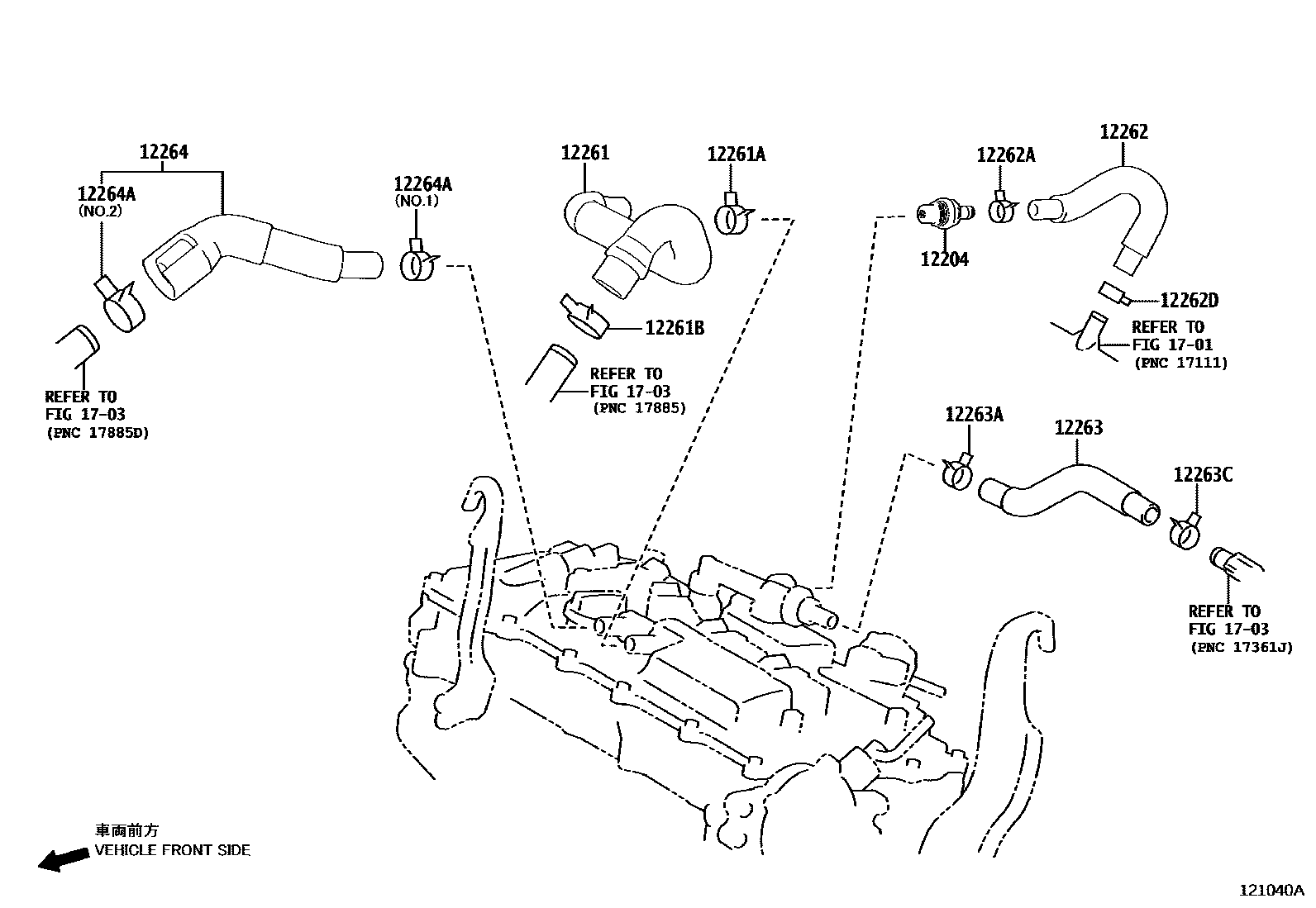

Diagram

13 parts
Lexus RX-SERIES 2017 — Ventilation Hose
