Europe 2017 RX SERIES AGL25L-AWTGZW
Catalog: LEXUS202608 Engine: 2000CC 16-VALVE DOHC EFI TURBO Transmission Description: AUTOMATIC TRANSMISSION Body Description: WAGON Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Color Code: 1J7 Trim Code: LB04 Production: 201509-201908 Model Short: AGL25L-AWTGZW Region: EU Native Region: EU

Lexus RX-SERIES 2017 — Starter

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
28120-36110 YOKE ASSY, STARTER 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
28160-36110 ARMATURE ASSY, STARTER 1
Note:8ARFTS..AGL2# Production:2017-01 – 2019-08
28140-36110 HOLDER ASSY, STARTER BRUSH 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
28100-36170 STARTER ASSY 1
Note:8ARFTS..AGL2# Production:2015-09 – 2018-11 Replacements:28100-36171 (fitment: unknown) Spec:12V 1.7KW
28249-36110 RELAY, STARTER INRUSH CURRENT REDUCTION 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
28226-31100 STARTER KIT, REPAIR SERVICE 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
28226-36170 STARTER KIT, REPAIR SERVICE, NO.2 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
90179-08204 standard —
91612-61035 standard —
94151-80800 standard —
91552-81035 standard —

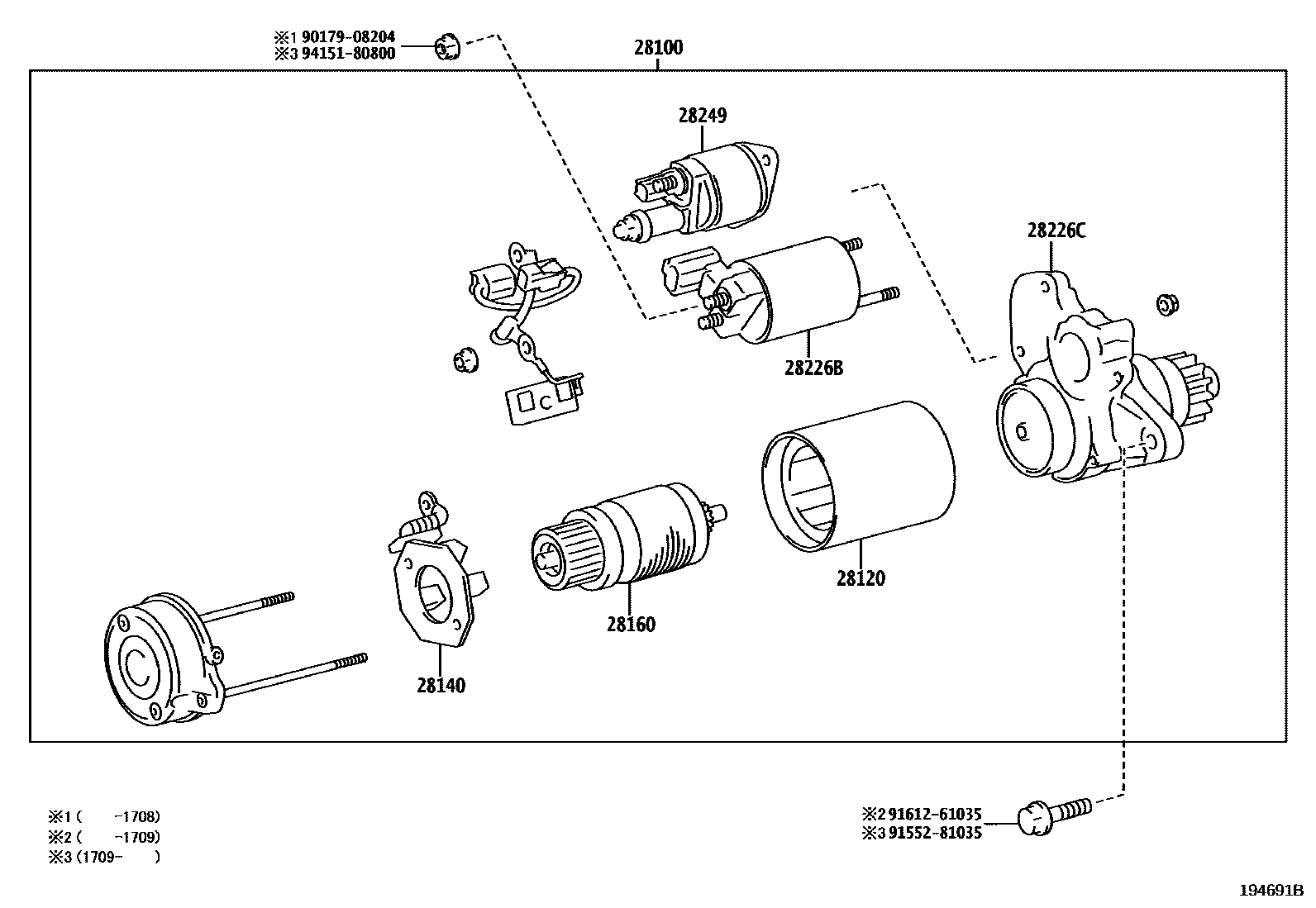

Diagram

11 parts
Lexus RX-SERIES 2017 — Starter
