Europe 2017 RX SERIES AGL25L-AWTGZW
Catalog: LEXUS202608 Engine: 2000CC 16-VALVE DOHC EFI TURBO Transmission Description: AUTOMATIC TRANSMISSION Body Description: WAGON Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Color Code: 1J7 Trim Code: LB04 Production: 201509-201908 Model Short: AGL25L-AWTGZW Region: EU Native Region: EU

Lexus RX-SERIES 2017 — Standard Tool

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
09150-26010 WRENCH, HUB NUT BOX 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
— Part does not apply to this vehicle configuration. 09120 —
09111-48021 JACK ASSY 1
Note:AGL2#,GGL25,GYL25 Production:2016-04 – 2019-08
— Part does not apply to this vehicle configuration. 09130 —
— Part does not apply to this vehicle configuration. 09135 —
— Part does not apply to this vehicle configuration. 09141 —
44890-48060 COMPRESSOR ASSY, AIR 1
Note:AGL2#,GYL25 Production:2015-09 – 2019-08 Replacements:44890-48061 (fitment: unknown)
— Part does not apply to this vehicle configuration. 42606B —
09113-33010 HANDLE, JACK 1
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08
51961-48070 HOOK ASSY, FRONT 2
Note:AGL2#,GGL25,GYL25 Production:2015-09 – 2019-08

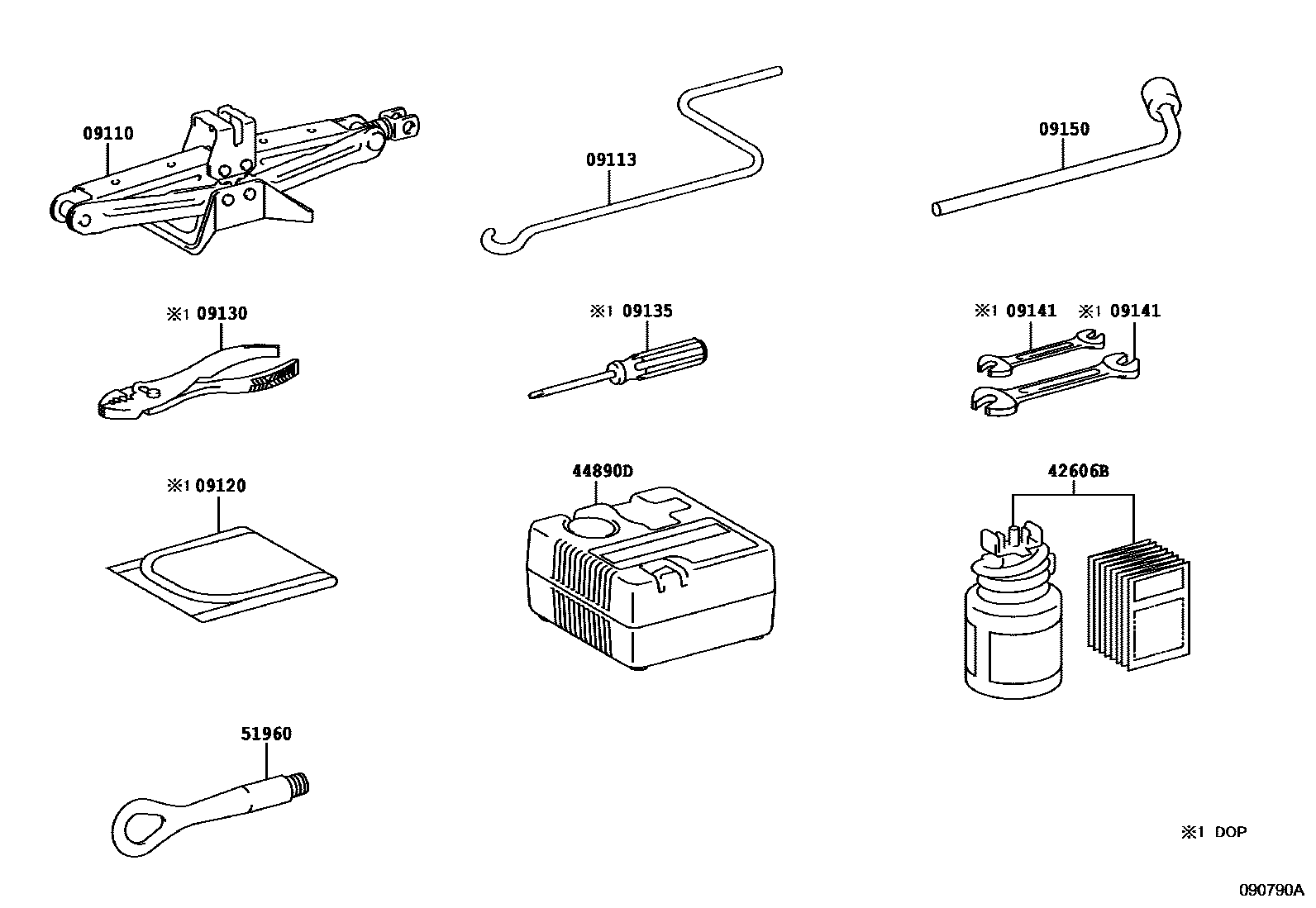

Diagram

5 parts
