Open RegionYearModelModelCode Details
Europe 2017 RX SERIES AGL25L-AWTGZW
Catalog: LEXUS202608 Engine: 2000CC 16-VALVE DOHC EFI TURBO Transmission Description: AUTOMATIC TRANSMISSION Body Description: WAGON Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Color Code: 1J7 Trim Code: LB04 Production: 201509-201908 Model Short: AGL25L-AWTGZW Region: EU Native Region: EU

Lexus RX-SERIES 2017 — Alternator

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
27039-31390 COVER, ALTERNATOR REAR END 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
27360-36180 COIL ASSY, ALTERNATOR 1
Note:8ARFTS..AGL2# Production:2015-09 – 2018-12 Replacements:27360-36181 (fitment: unknown)
27370-27060 HOLDER ASSY, ALTERNATOR BRUSH 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
27387-20130 INSULATOR, ALTERNATOR TERMINAL 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
27415-0W170 PULLEY, ALTERNATOR W/CLUTCH 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
27416-0W050 CAP, ALTERNATOR PULLEY 1
Note:8ARFTS,2GRFKS..AGL2#,GGL25 Production:2015-09 – 2019-08
27060-36100 ALTERNATOR ASSY 1
Note:8ARFTS..AGL2# Production:2015-09 – 2018-11 Replacements:27060-36101 (fitment: unknown) Spec:12V 150A
91552-81095 BOLT(FOR ALTERNATOR) 2
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
27312-72100 PLATE, RETAINER 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
27384-50030 WASHER 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
27310-36180 FRAME ASSY, DRIVE END, ALTERNATOR 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
90099-10223 BEARING(FOR ALTERNATOR DRIVE END FRAME) 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
27330-58460 ROTOR ASSY, ALTERNATOR 1
Note:8ARFTS..AGL2# Production:2015-09 – 2019-08
90099-00197 standard —
90099-04539 standard —
90099-05284 standard —
94151-80600 standard —
90099-00268 standard —

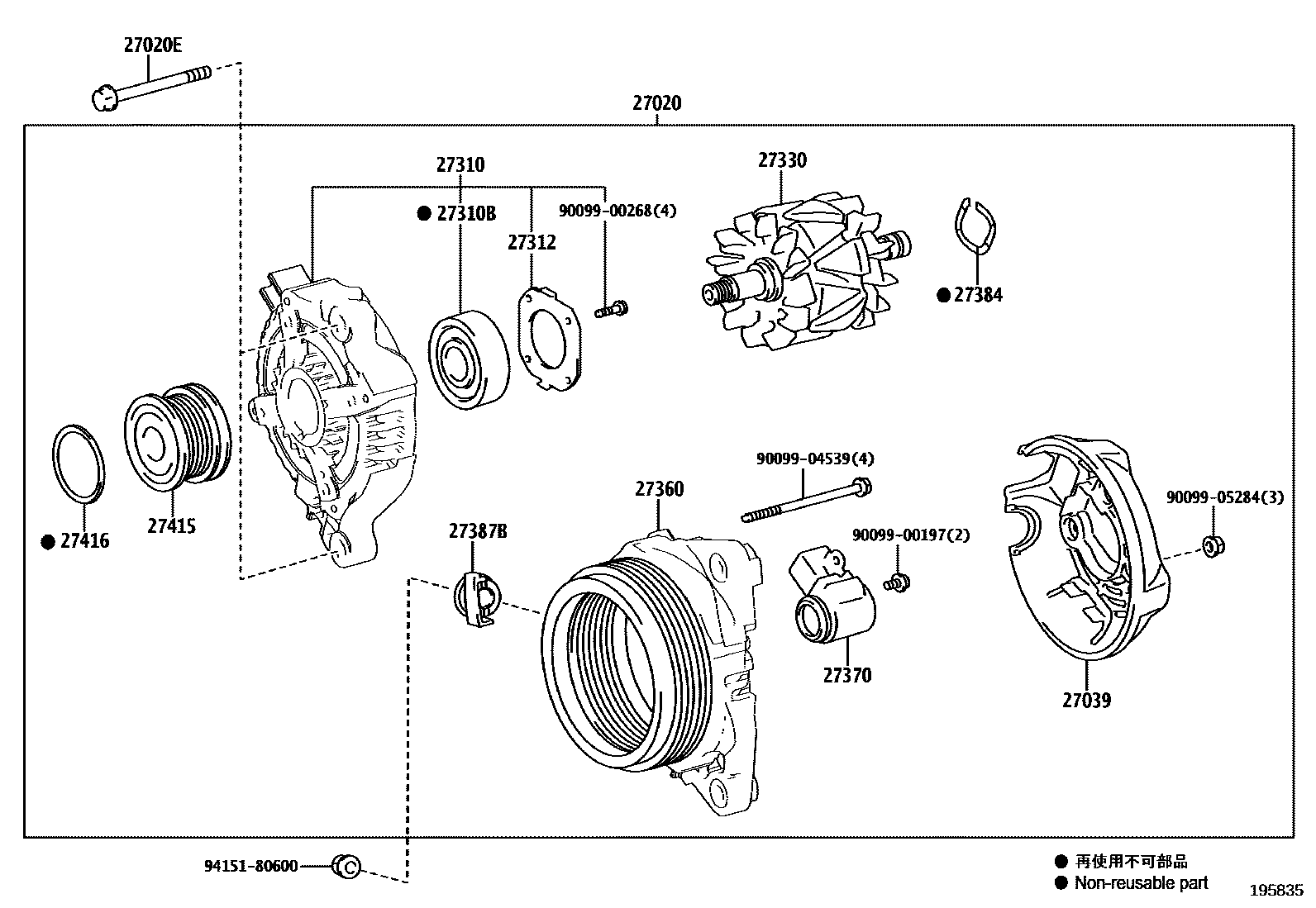

Diagram

18 parts
Lexus RX-SERIES 2017 — Alternator
