Lexus LS460-460L 2015 — ABS & Vsc
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 86652-50010 | BUZZER ASSY, SKID CONTROL | 1 | |
Note:USF4# Production:2012-09 – … | |||
| 88263-21010 | RELAY, SKID CONTROL | 1 | |
Note:USF4# Production:2012-09 – 2017-08 | |||
| 89183-48020 | SENSOR, YAWRATE | 1 | |
Note:USF4# Production:2012-09 – … | |||
| 89510-33030 | SENSOR ASSY, BRAKE PEDAL STROKE | 1 | |
Note:USF4# Production:2012-09 – … | |||
| 89516-50170 | WIRE, SKID CONTROL SENSOR | 1 | |
Note:USF40,41 Production:2012-09 – … | |||
| 89516-50150 | WIRE, SKID CONTROL SENSOR, LH | 1 | |
Note:USF4# Production:2012-09 – … | |||
| 89516-50190 | WIRE, SKID CONTROL SENSOR, RH | 1 | |
Note:USF4# Production:2012-09 – 2017-08 Spec:SUSPENSION-AIR SUSPENTION | |||
| 895B0-50021 | COMPUTER ASSY, SKID CONTROL | 1 | |
Note:USF40,41 Production:2014-10 – … Replacements:895B0-50810 (fitment: unknown) | |||
| 89545-30070 | SENSOR, SPEED, REAR RH | 1 | |
Note:USF4# Production:2012-09 – 2017-08 | |||
| 89546-30070 | SENSOR, SPEED, REAR LH | 1 | |
Note:USF4# Production:2012-09 – 2017-08 | |||
| 88269-50090 | BRACKET, SKID CONTROL COMPUTER | 1 | |
Note:USF4# Production:2012-09 – … | |||
| 89680-33010 | SUPPLY ASSY, BRAKE CONTROL POWER | 1 | |
Note:USF4# Production:2012-09 – … | |||
| 89686-50010 | BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 | 1 | |
Note:USF4# Production:2012-09 – … | |||
| 89686-50020 | BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 | 1 | |
Note:USF4# Production:2012-09 – … | |||
| F1971-50020 | COVER, BRAKE CONTROL POWER SUPPLY | 1 | |
Note:USF4# Production:2012-09 – … | |||
| 88266-50600 | CLAMP, SKID CONTROL SENSOR, NO.1 | 1 | |
Note:USF4# Production:2012-09 – … | |||
| 89516-50160 | WIRE, SKID CONTROL SENSOR | 1 | |
Note:USF40,41 Production:2012-09 – … | |||
| 90105-06298 | standard | — | |
| 90119-06779 | standard | — | |
| 90179-06274 | standard | — | |
| 91551-80610 | standard | — | |
| 91553-A0612 | standard | — | |
| 91671-80616 | standard | — | |
| 91671-80610 | standard | — | |
| 90119-06833 | standard | — | |
| 91551-A0616 | standard | — | |

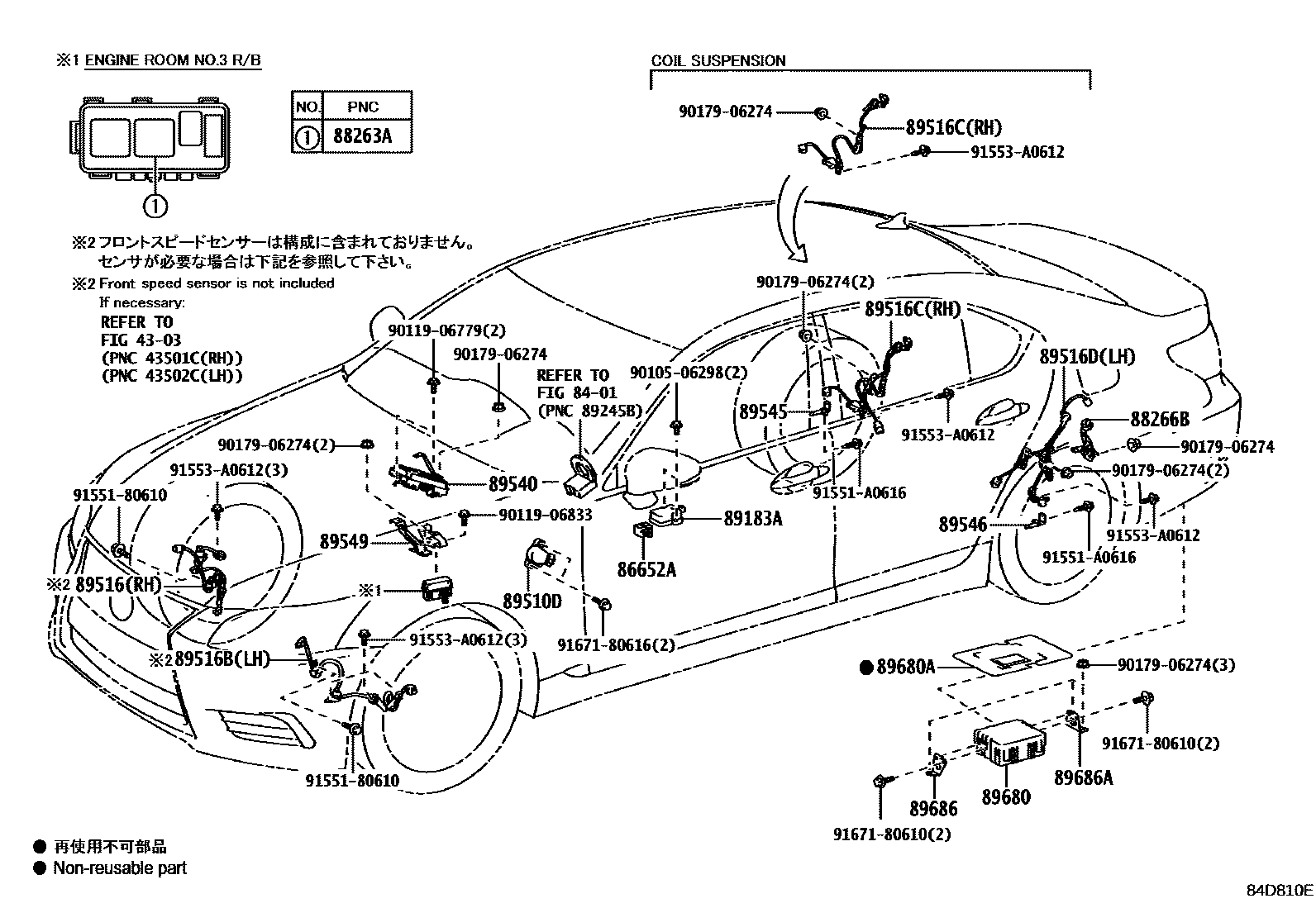

Diagram
26 parts
