Open RegionYearModelModelCode Details
USA / Canada 2013 ES350 300H GSV60L-BETGKA
Catalog: LEXUS202608 Engine: 3500CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Doors Description: 4-DOOR Color Code: 4V3 Trim Code: LB01 Production: 201206-201507 Model Short: GSV60L-BETGKA Region: NA Native Region: US

Lexus ES350-300H 2013 — Water Pump

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
16620-31040 TENSIONER ASSY, V-RIBBED BELT 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
16659-31011 PLATE, IDLER PULLEY COVER, NO.2 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
16604-31020 PULLEY SUB-ASSY, IDLER, NO.2 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07 Spec:MARK=PU107013ARMXY3
16604-31030 PULLEY SUB-ASSY, IDLER, NO.2 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07 Spec:MARK=PU107016RMXY
16649-31020 PLATE, IDLER PULLEY COVER 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
16173-31010 PULLEY, WATER PUMP 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
16271-31030 GASKET, WATER PUMP 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
16100-39456 PUMP ASSY, ENGINE WATER 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
16193-31080 BOLT(FOR WATER PUMP COVER) 2
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
91552-81070 standard —
91552-81035 standard —
91671-80816 standard —
91551-80622 standard —

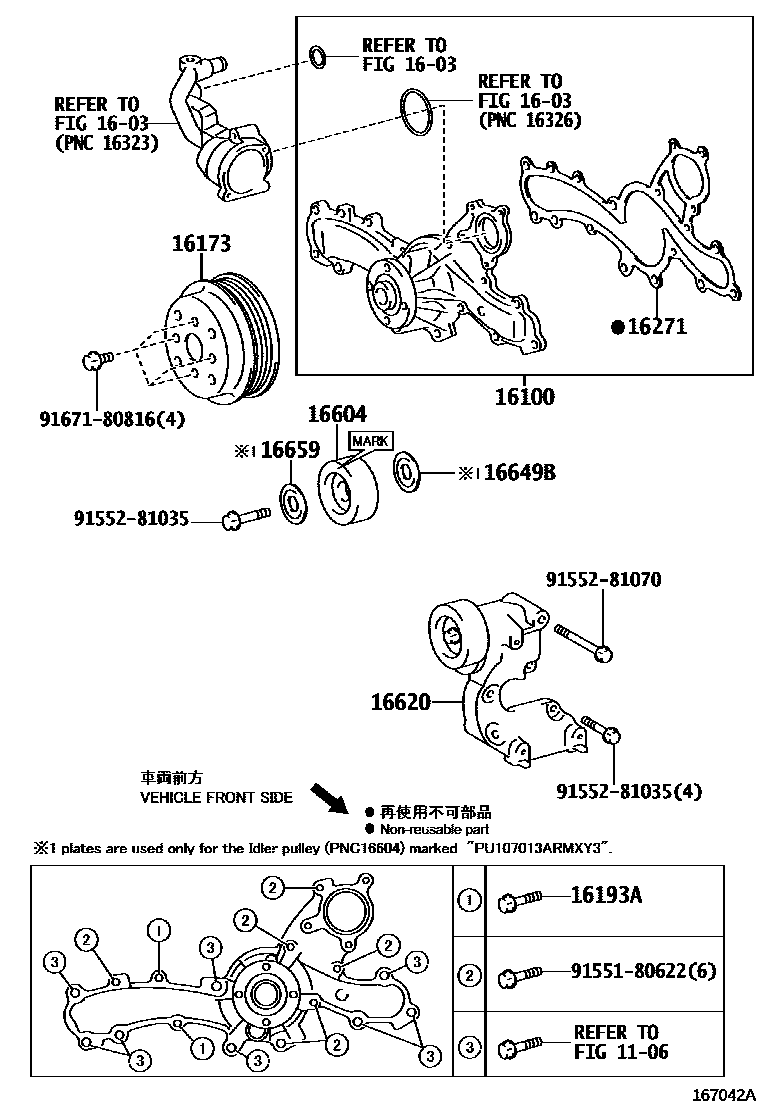

Diagram

13 parts
Lexus ES350-300H 2013 — Water Pump
