USA / Canada 2013 ES350 300H GSV60L-BETGKA
Catalog: LEXUS202608 Engine: 3500CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Doors Description: 4-DOOR Color Code: 4V3 Trim Code: LB01 Production: 201206-201507 Model Short: GSV60L-BETGKA Region: NA Native Region: US

Lexus ES350-300H 2013 — Fuel Injection System

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
23870-31010 PIPE SUB-ASSY, FUEL DELIVERY 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
90301-07033 RING, O(FOR FUEL INJECTOR) 6
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
23209-31090 INJECTOR ASSY, FUEL 6
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
23881-31020 BRACKET, FUEL HOSE 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
23901-31160 TUBE SUB-ASSY, FUEL 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
23842-31040 CLAMP, FUEL PIPE, NO.2(FOR EFI) 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
23841-31070 CLAMP, FUEL PIPE, NO.1(FOR EFI) 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
22030-0P050 BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07 Replacements:22030-31030 (fitment: unknown) Spec:(L) Spec Note:(Local made)
22030-31030 BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07 Spec:(J) Spec Note:(Japan made)
22271-31040 GASKET, THROTTLE BODY 1
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
23291-23010 INSULATOR, INJECTOR VIBRATION 6
Note:2GRFE..GSV60 Production:2012-06 – 2015-07
91551-80650 standard —
90929-01444 standard —
91621-60614 standard —
91551-80855 standard —

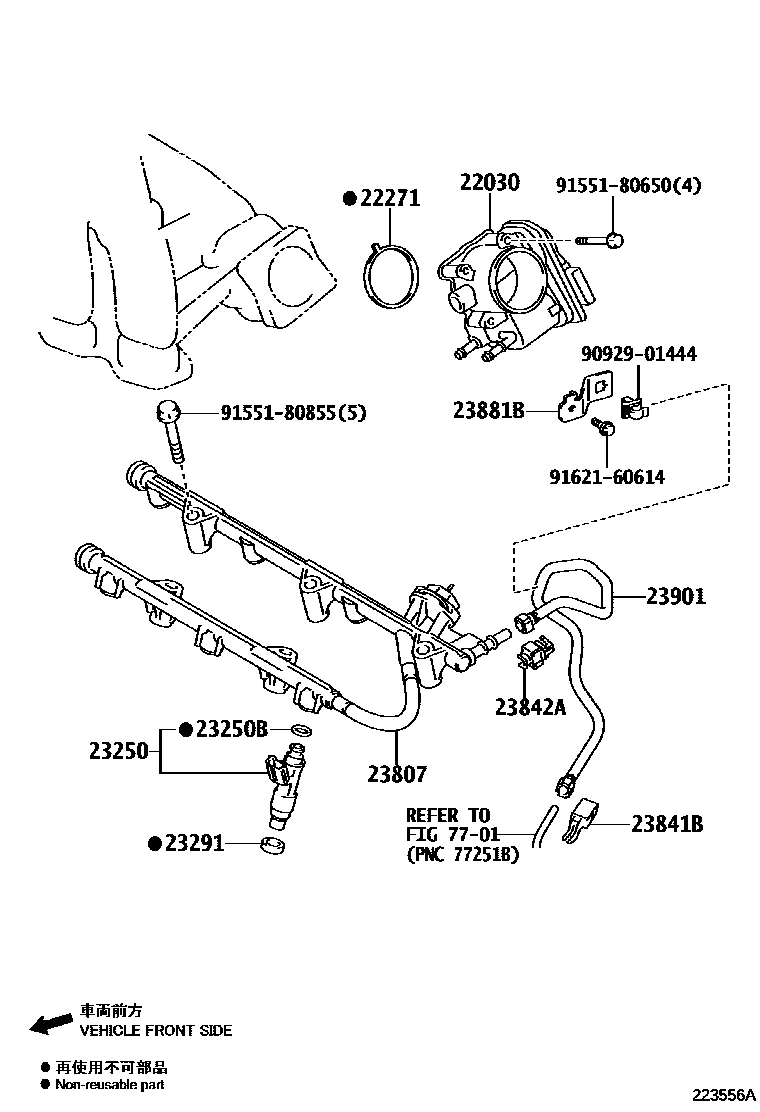

Diagram

15 parts
Lexus ES350-300H 2013 — Fuel Injection System
