Lexus ES350-300H 2013 — Front Fender Apron & Dash Panel
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 51465-33060 | BRACE, RADIATOR SUPPORT, UPPER RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 51466-33070 | BRACE, RADIATOR SUPPORT, UPPER LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 52141-33120 | ARM, FRONT BUMPER, UPPER RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 52142-33100 | ARM, FRONT BUMPER, UPPER LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53174-33010 | BRACKET, RADIATOR SUPPORT SIDE | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53201-33191 | SUPPORT SUB-ASSY, RADIATOR | 1 | |
Note:AVV60,GSV60 Production:2013-04 – 2015-07 | |||
| 53203-33160 | SUPPORT SUB-ASSY, RADIATOR, LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53202-33101 | SUPPORT SUB-ASSY, RADIATOR, RH | 1 | |
Note:AVV60,GSV60 Production:2013-04 – 2015-07 | |||
| 53208-33060 | SUPPORT SUB-ASSY, HOOD LOCK | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53211-33081 | SUPPORT, RADIATOR, RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53212-33081 | SUPPORT, RADIATOR, LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53213-33061 | SUPPORT, RADIATOR, UPPER RH | 1 | |
Note:AVV60,GSV60 Production:2013-04 – 2015-07 | |||
| 53214-33060 | SUPPORT, RADIATOR, UPPER LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53216-33150 | SUPPORT, RADIATOR, UPPER | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 90467-07217 | CLIP, RADIATOR SUPPORT TO FRAME SEAL | 9 | |
Note:AVV60,GSV60 Production:2012-09 – 2015-07 | |||
| 53293-33110 | DEFLECTOR, RADIATOR SIDE, RH | 1 | |
Note:GSV60 Production:2012-06 – 2015-07 | |||
| 53294-33110 | DEFLECTOR, RADIATOR SIDE, LH | 1 | |
Note:GSV60 Production:2012-06 – 2015-07 | |||
| 53295-33090 | SEAL, COOL AIR INTAKE DUCT | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 Spec:HEAD LAMP-DISCHARGE & *DRL | |||
| 90541-15033 | CUSHION, HOOD BUMPER | 2 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53701-33180 | APRON SUB-ASSY, FRONT FENDER, RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53702-33140 | APRON SUB-ASSY, FRONT FENDER, LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53707-33010 | EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53711-33080 | APRON, FRONT FENDER, FRONT RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53481-33050 | BRACKET, HOOD SUPPORT, RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53712-33050 | APRON, FRONT FENDER, FRONT LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53714-33030 | EXTENSION, FRONT FENDER APRON, FRONT LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-01 Replacements:53714-33031 (fitment: unknown) | |||
| 53725-33020 | REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53726-33020 | REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53482-33040 | BRACKET, HOOD SUPPORT LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53731-33090 | MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53732-33080 | MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53733-33050 | MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53734-33050 | MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53736-33040 | SEAL, FRONT FENDER APRON, RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 90467-08180 | CLIP(FOR FRONT FENDER APRON SEAL) | 2 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53737-33020 | SEAL, FRONT FENDER APRON, LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53821-33060 | BRACKET, FRONT FENDER, REAR RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53822-33050 | BRACKET, FRONT FENDER, REAR LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53823-33040 | GUSSET, FRONT FENDER, RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 53824-33040 | GUSSET, FRONT FENDER, LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| — | Part does not apply to this vehicle configuration. | 55101 | — |
| 55210-33250 | INSULATOR ASSY, DASH PANEL | 1 | |
Note:GSV60 Production:2012-06 – 2015-07 | |||
| 90467-11127 | CLIP | 2 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 90467-13079 | CLIP | 2 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 55223-33190 | INSULATOR, DASH PANEL, OUTER | 1 | |
Note:GSV60 Production:2012-06 – 2015-07 Replacements:55223-33191 (fitment: unknown) | |||
| 55239-33020 | PLATE, DASH PANEL INSULATOR, NO.3 | 2 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 57104-33061 | MEMBER SUB-ASSY, FRONT CROSS | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 Replacements:57104-33062 (fitment: unknown) | |||
| 57163-33040 | REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 57164-33040 | REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 57165-33021 | REINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 57166-33031 | REINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH | 1 | |
Note:AVV60,GSV60 Production:2012-06 – 2015-07 | |||
| 90105-06137 | standard | — | |
| 90109-06328 | standard | — | |
| 90119-06680 | standard | — | |
| 90467-06197 | standard | — | |

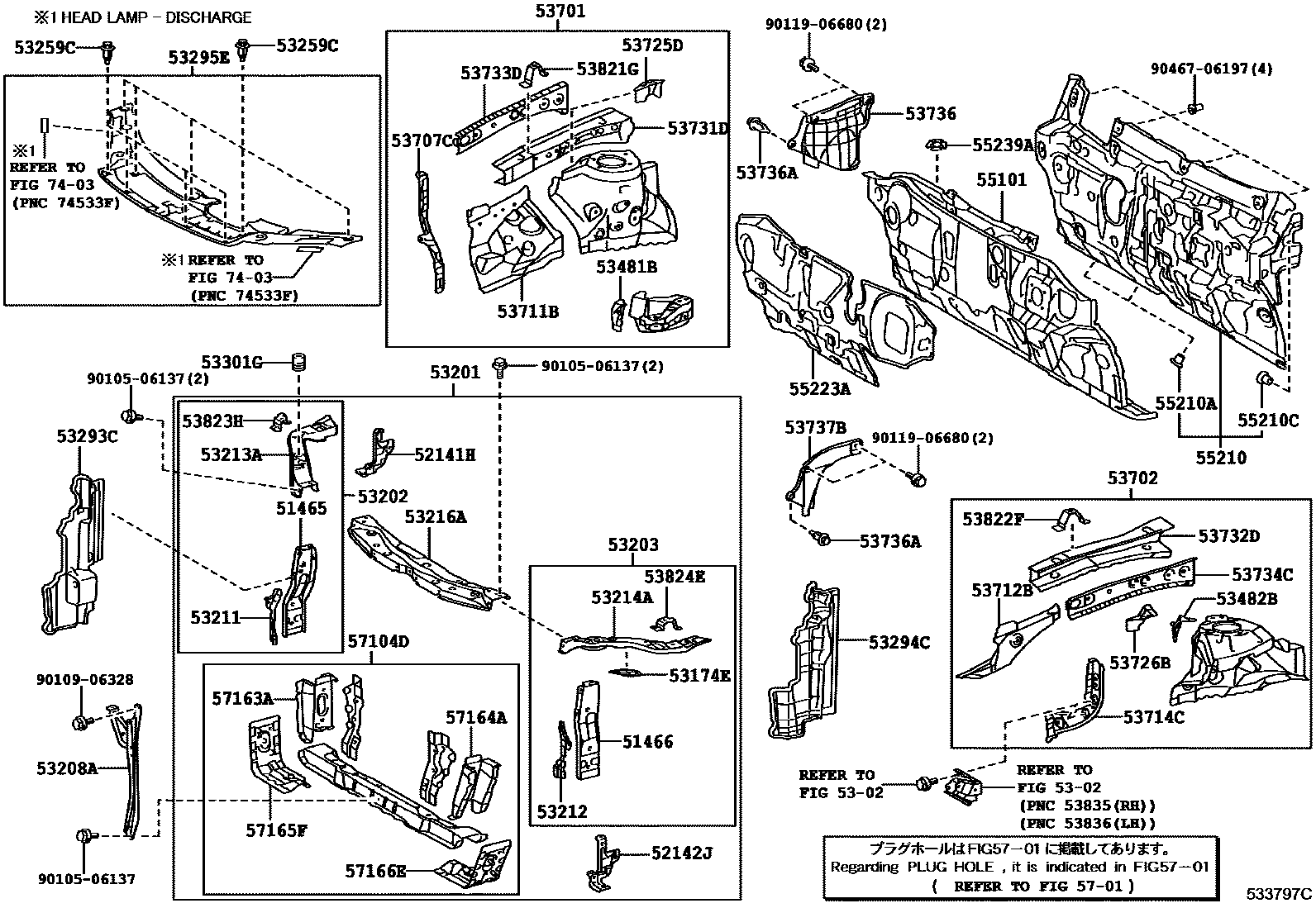

Diagram
54 parts
