Lexus IS250-300 2010 — Starter
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 28100-31081 | STARTER ASSY | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Spec:12V 1.3KW | |||
| 28114-21060 | PIN, STARTER DRIVE LEVER SET | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 28110-31040 | HOUSING ASSY, STARTER DRIVE | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 28130-31040 | FRAME ASSY, STARTER COMMUTATOR END | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – 2011-08 | |||
| 28132-28040 | COVER, STARTER COMMUTATOR END FRAME | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 28120-28080 | YOKE ASSY, STARTER | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 28160-21060 | ARMATURE ASSY, STARTER | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 28177-28040 | PLATE(FOR STARTER ARMATURE) | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 28255-28040 | GEAR, PLANET | 3 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 28226-22061 | STARTER KIT, REPAIR SERVICE | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 28021-21060 | CLUTCH SUB-ASSY, STARTER CENTER BEARING | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 94151-80800 | standard | — | |
| 91642-81065 | standard | — | |
| 90099-04561 | standard | — | |
| 90099-05178 | standard | — | |
| 90099-04572 | standard | — | |
| 90099-02228 | standard | — | |
| 90099-07068 | standard | — | |

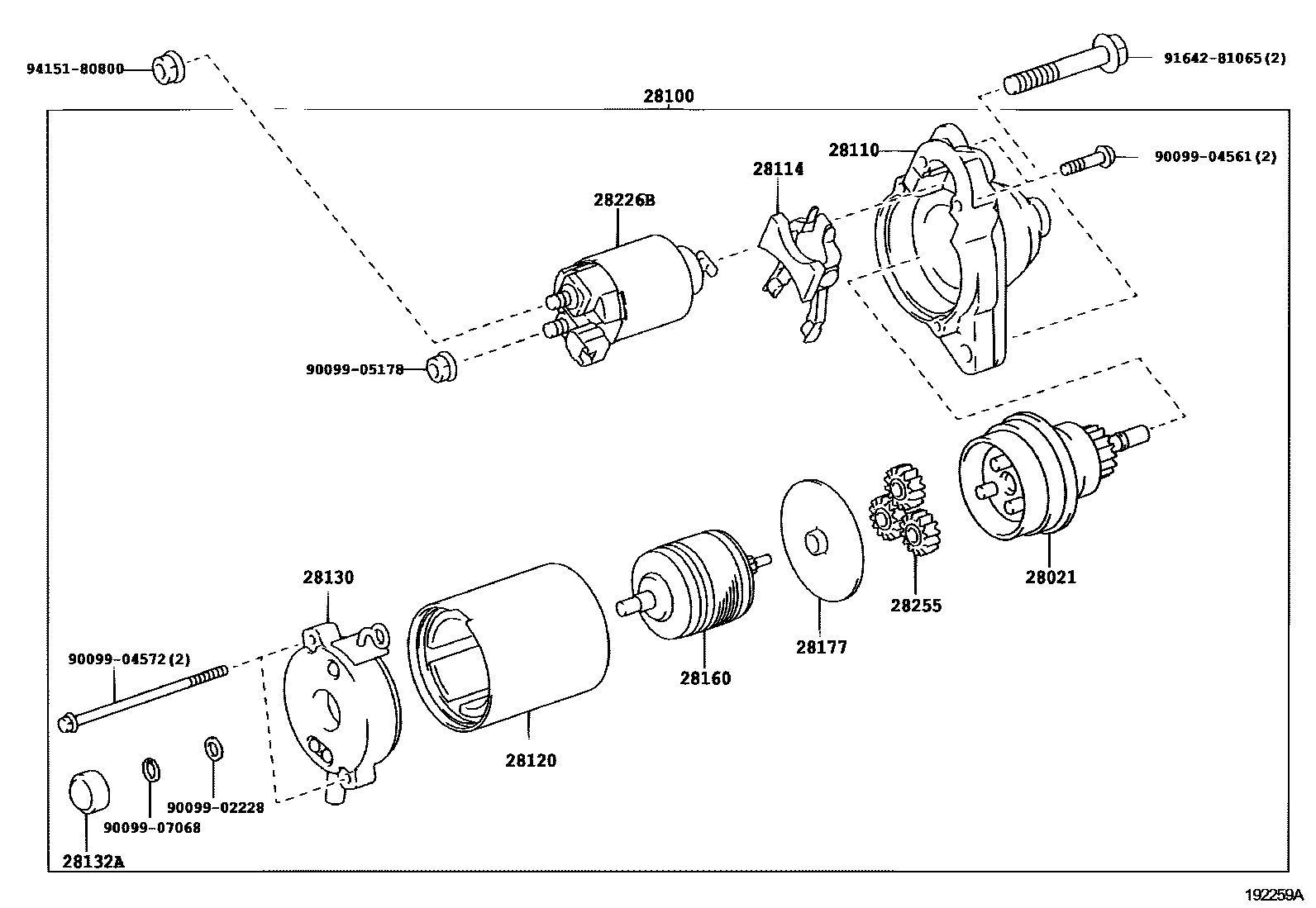

Diagram
18 parts
