Lexus IS250-300 2010 — Fuel Injection System
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 22271-31030 | GASKET, THROTTLE BODY | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 23807-31030 | PIPE SUB-ASSY, FUEL DELIVERY | 1 | |
Note:3GRFE..GSE22 Production:2010-08 – … | |||
| 23283-31010 | HOLDER, FUEL PRESSURE REGULATOR | 1 | |
Note:3GRFE..GSE22 Production:2010-08 – … | |||
| 23842-31020 | CLAMP, FUEL PIPE, NO.2(FOR EFI) | 1 | |
Note:3GRFE..GSE22 Production:2010-08 – … | |||
| 11254-31020 | BRACKET, V-BANK COVER | 2 | |
Note:3GRFE..GSE22 Production:2010-08 – … | |||
| 23841-21050 | CLAMP, FUEL PIPE, NO.1(FOR EFI) | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 90301-07033 | RING, O(FOR FUEL INJECTOR) | 6 | |
Note:3GRFE..GSE22 Production:2010-08 – … | |||
| 23291-23010 | INSULATOR, INJECTOR VIBRATION | 6 | |
Note:3GRFE..GSE22 Production:2010-08 – … | |||
| 23270-31080 | DAMPER ASSY, FUEL PRESSURE PULSATION | 1 | |
Note:3GRFE..GSE22 Production:2010-08 – 2010-12 Replacements:23270-31140 (fitment: unknown) | |||
| 22030-31050 | BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | 1 | |
Note:3GRFE..GSE22 Production:2010-08 – … | |||
| 23901-31131 | TUBE SUB-ASSY, FUEL | 1 | |
Note:3GRFE..GSE22 Production:2010-08 – 2010-12 Replacements:23901-31170 (fitment: unknown) | |||
| 90480-22024 | GROMMET(FOR FUEL TUBE) | 2 | |
Note:3GRFE..GSE22 Production:2010-08 – … | |||
| 23209-39125 | INJECTOR ASSY, FUEL | 6 | |
Note:3GRFE..GSE22 Production:2010-08 – … | |||
| 91671-00860 | standard | — | |
| 91551-80650 | standard | — | |

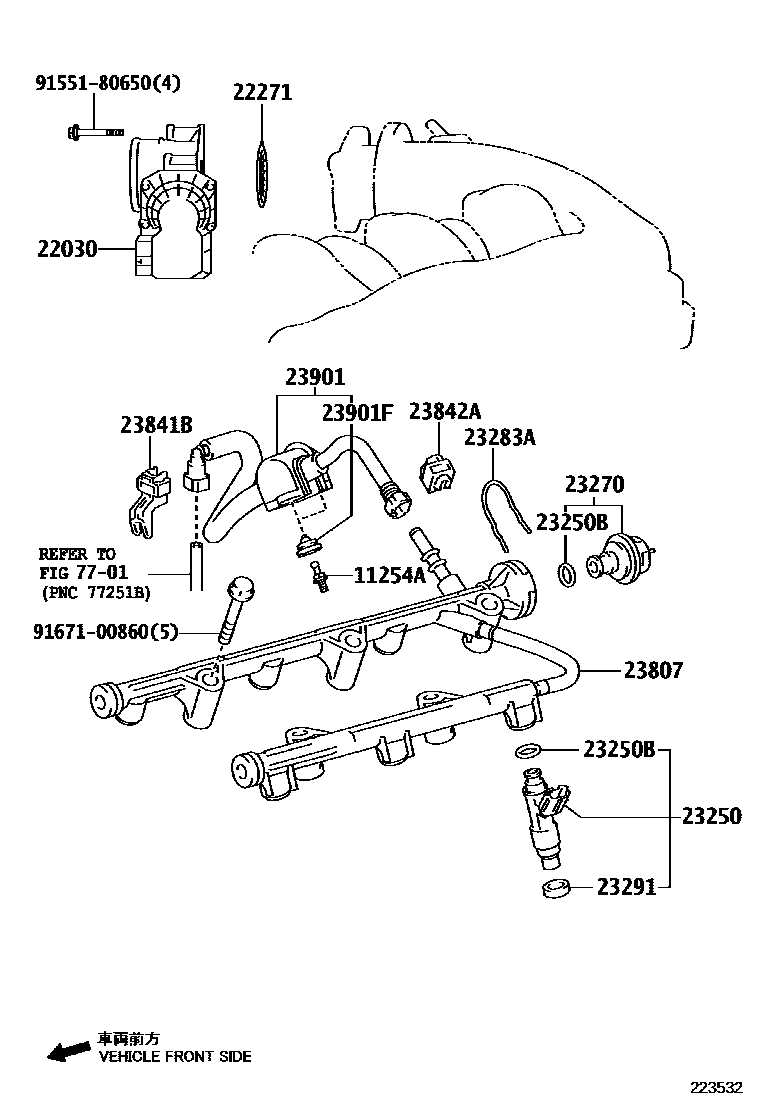

Diagram
15 parts
