Lexus IS250-300 2010 — Cylinder Block
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 12102-31030 | PAN SUB-ASSY, OIL, NO.2 | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 90430-12031 | GASKET(FOR OIL PAN DRAIN PLUG) | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 90341-12012 | PLUG(FOR OIL PAN DRAIN) | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 11452-31040 | GUIDE, OIL LEVEL GAGE | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 90301-12018 | RING, O(FOR OIL LEVEL GAGE GUIDE) | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 96721-19010 | RING, O(FOR OIL LEVEL GAGE GUIDE, NO.2) | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 12142-31010 | GUIDE, OIL LEVEL GAGE, NO.2 | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 12151-31010 | RING, O(FOR OIL PAN) | 2 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 12101-31101 | PAN SUB-ASSY, OIL | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 11363-31010 | COVER, FLYWHEEL HOUSING SIDE | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Replacements:11363-31030 (fitment: unknown) | |||
| 15301-31080 | GAGE SUB-ASSY, OIL LEVEL | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 96741-19005 | RING, O(FOR OIL LEVEL GAGE) | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 90910-09129 | COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | 2 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 90910-09087 | PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | 2 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 90919-05057 | SENSOR, CRANK POSITION | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 90126-08052 | BOLT, STUD(FOR OIL PAN) | 2 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 15708-31010 | NOZZLE SUB-ASSY, OIL, NO.1 | 3 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 90910-02154 | BOLT(FOR CRANKSHAFT BEARING CAP SET) | 9 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – 2013-04 | |||
| 90250-04097 | PIN, STRAIGHT(FOR OIL PAN) | 2 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 90250-08120 | PIN, STRAIGHT (FOR CYLINDER HEAD SET) | 4 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Spec:L=18,OD=8 | |||
| 90250-04097 | PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | 2 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Spec:L=12,OD=4.0 | |||
| 90250-10030 | PIN, RING(FOR TIMING BELT IDLER BRACKET SET) | 1 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 11445-31010 | SPACER, CYLINDER BLOCK WATER JACKET, RH | 1 | |
Note:3GRFE..GSE22 Production:2010-08 – … | |||
| 12121-31080 | PLATE, OIL PAN BAFFLE, NO.1 | 1 | |
Note:3GRFE..GSE22 Production:2010-08 – … | |||
| 11446-31010 | SPACER, CYLINDER BLOCK WATER JACKET, LH | 1 | |
Note:3GRFE..GSE22 Production:2010-08 – … | |||
| 90250-10113 | PIN, STRAIGHT(FOR END PLATE) | 2 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … | |||
| 90250-04097 | PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | 2 | |
Note:3GRFE,4GRFSE..GSE2# Production:2010-08 – … Spec:L=12,OD=4.0 | |||
| 11401-80755 | BLOCK SUB-ASSY, CYLINDER | 1 | |
Note:3GRFE..GSE22 Production:2010-08 – 2013-04 Replacements:11401-80816 (fitment: unknown) | |||
| 91551-80825 | standard | — | |
| 91551-80845 | standard | — | |
| 94151-80800 | standard | — | |
| 91551-80616 | standard | — | |
| 91671-80610 | standard | — | |
| 90126-06028 | standard | — | |
| 94151-80600 | standard | — | |
| 90119-06938 | standard | — | |
| 91671-80612 | standard | — | |
| 91671-80816 | standard | — | |
| 91551-L0830 | standard | — | |
| 91551-L0845 | standard | — | |
| 90210-07006 | standard | — | |
| 90110-06018 | standard | — | |
| 90126-08047 | standard | — | |
| 90910-02153 | standard | — | |

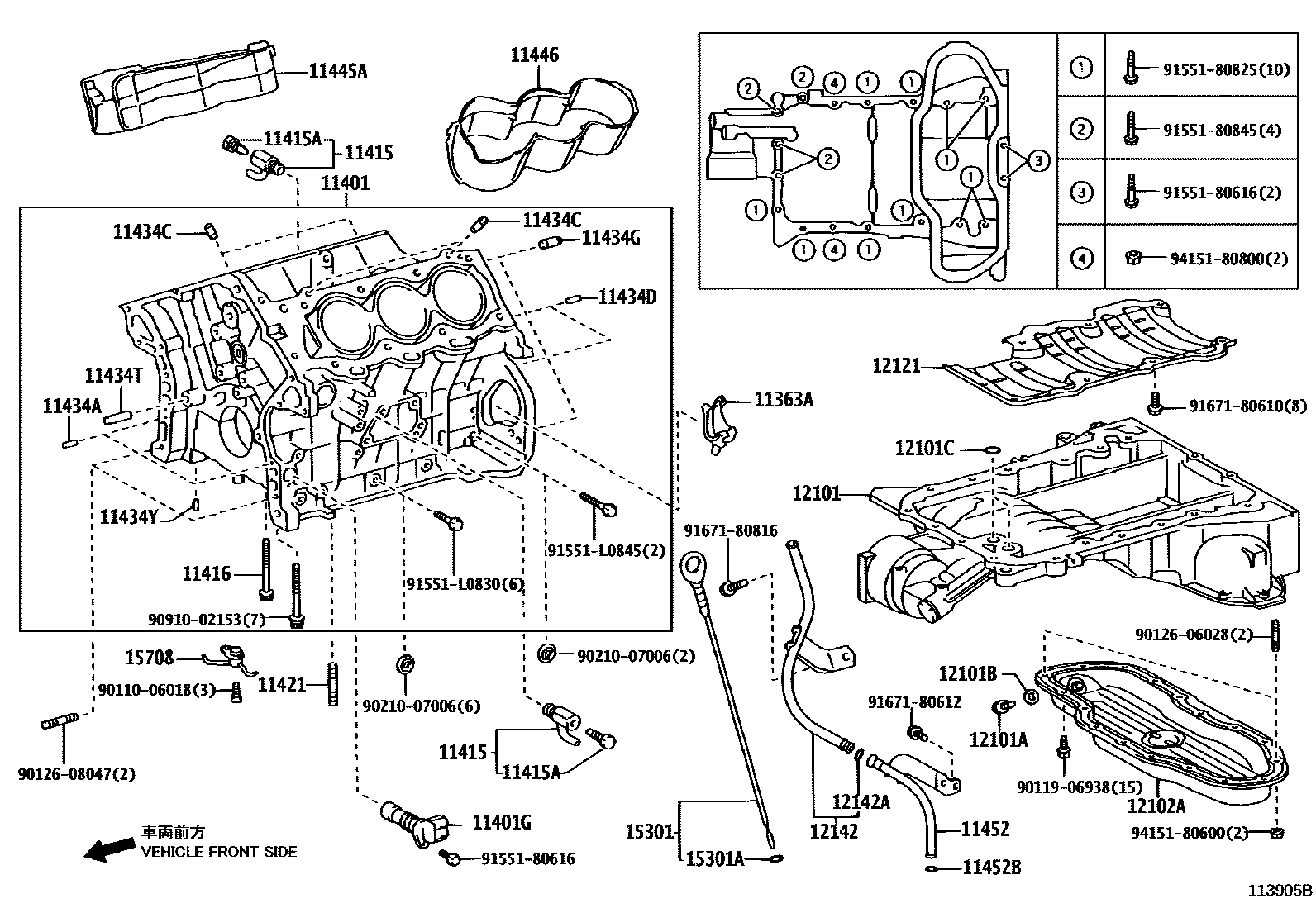

Diagram
44 parts
