Open RegionYearModelModelCode Details
General 2010 IS250 300 GSE22L-AETLKV
Catalog: LEXUS202608 Engine: 3000CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 212 Trim Code: LA00 Production: 200607-200808 Model Short: GSE22L-AETLKV Region: OTHER Native Region: GR

Lexus IS250-300 2010 — Clearance & Back Sonar

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
89343-30010 BUZZER, CLEARANCE WARNING, NO.1 1
Note:GSE2# Production:2010-08 – … Spec:CLEARANCE & BACK SONAR-WITH
89341-64010-C2 SENSOR, ULTRASONIC, NO.2 2
Note:GSE2# Production:2010-08 – 2013-04 Spec:CLEARANCE & BACK SONAR-WITH,BLACK,212
89348-64020-C1 RETAINER, ULTRASONIC SENSOR, NO.3 6
Note:GSE2# Production:2010-08 – 2011-07 Replacements:89348-30030-C0 (fitment: unknown) Spec:CLEARANCE & BACK SONAR-WITH,BLACK,212
89348-53020 CLIP, ULTRASONIC SENSOR 4
Note:GSE2# Production:2010-08 – 2013-04 Spec:CLEARANCE & BACK SONAR-WITH
89341-64010-C2 SENSOR, ULTRASONIC, NO.1 4
Note:GSE2# Production:2010-08 – 2013-04 Spec:CLEARANCE & BACK SONAR-WITH,BLACK,212
89340-53040 COMPUTER ASSY, CLEARANCE WARNING 1
Note:GSE2# Production:2010-08 – 2013-04 Spec:CLEARANCE & BACK SONAR-WITH
90179-06274 standard —

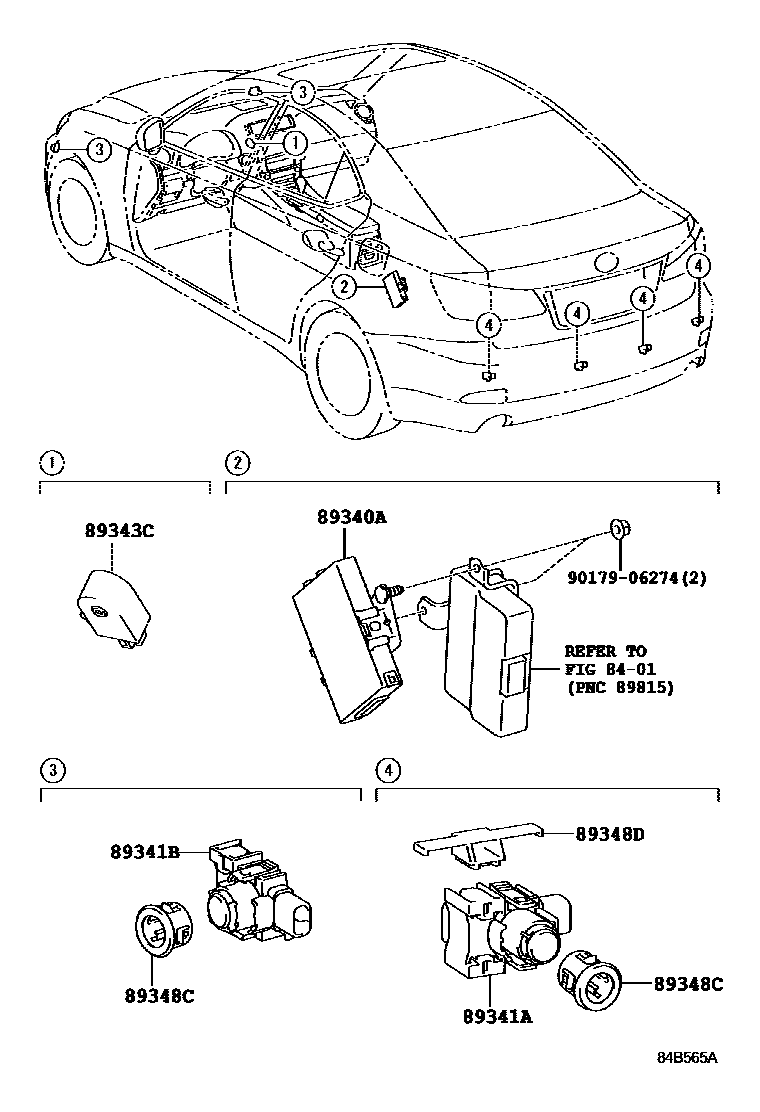

Diagram

7 parts
Lexus IS250-300 2010 — Clearance & Back Sonar
