Open RegionYearModelModelCode Details
General 2010 IS250 300 GSE22L-AETLKV
Catalog: LEXUS202608 Engine: 3000CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 212 Trim Code: LA00 Production: 200607-200808 Model Short: GSE22L-AETLKV Region: OTHER Native Region: GR

Lexus IS250-300 2010 — Air Bag

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
89173-29255 SENSOR, AIRBAG, FRONT RH 1
Note:GSE2#..GCC Production:2010-08 – 2012-08
89170-53080 SENSOR ASSY, AIRBAG 1
Note:GSE2#..GCC Production:2010-08 – 2012-08
89178-33050 SENSOR, SEAT POSITION AIRBAG 1
Note:GSE2#..GCC Production:2010-08 – …
89173-29255 SENSOR, AIRBAG, FRONT LH 1
Note:GSE2#..GCC Production:2010-08 – 2012-08
72277-33021 PROTECTOR, SEAT SLIDE POSITION SENSOR 1
Note:GSE2#..GCC Production:2010-08 – …
89831-22020 SENSOR, AIRBAG, REAR RH 1
Note:GSE2#..GCC Production:2010-08 – 2012-08
89831-22020 SENSOR, AIRBAG, REAR LH 1
Note:GSE2#..GCC Production:2010-08 – 2012-08
89831-53010 SENSOR ASSY, SIDE AIRBAG, LH 1
Note:GSE2#..GCC Production:2010-08 – 2012-08
89831-53010 SENSOR ASSY, SIDE AIRBAG, RH 1
Note:GSE2#..GCC Production:2010-08 – 2012-08
90119-08C48 standard —
Replacements:90119-08C11 (fitment: unknown)
94151-80800 standard —
91553-A0622 standard —
94151-80600 standard —
91553-80618 standard —

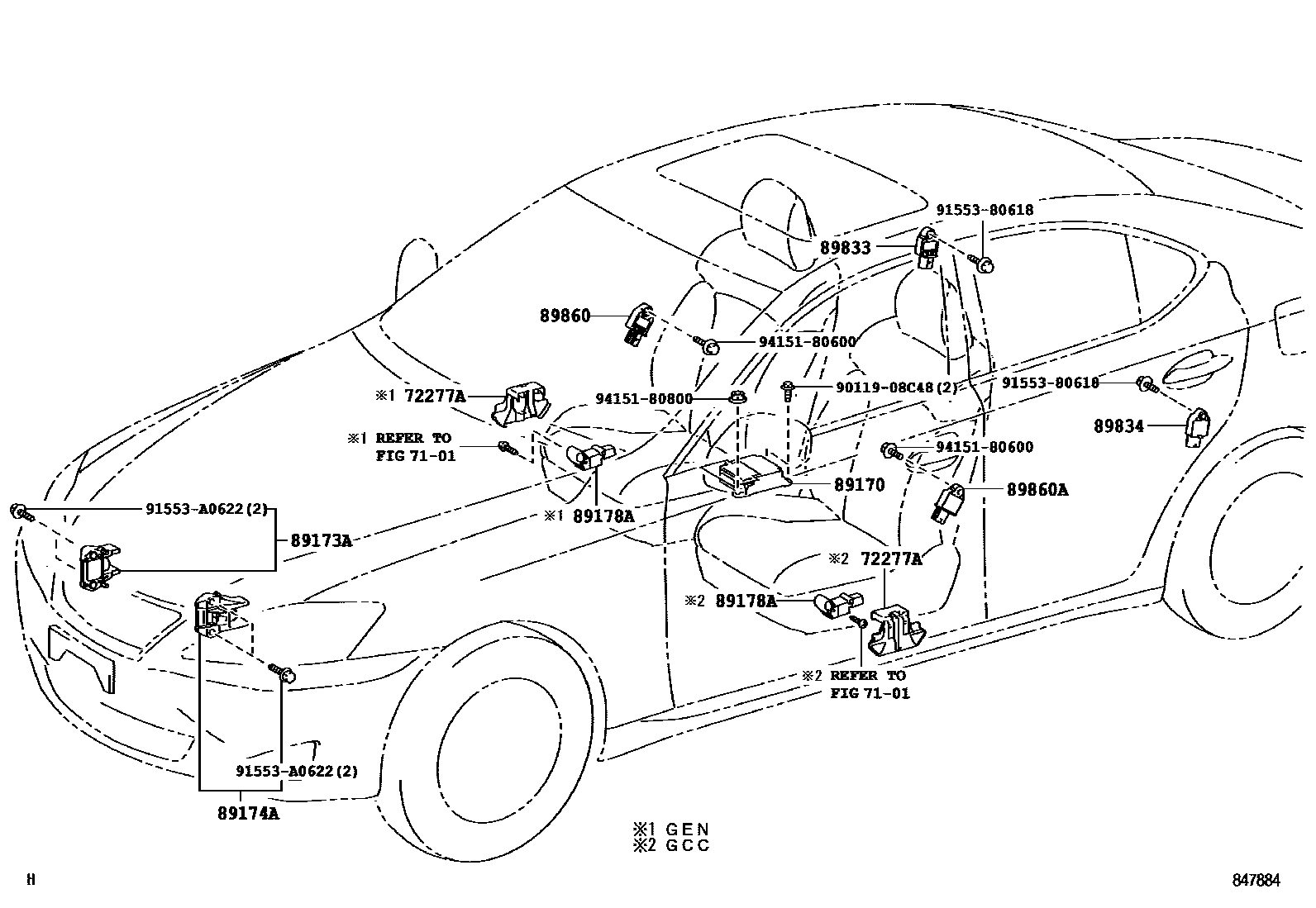

Diagram

14 parts
Lexus IS250-300 2010 — Air Bag
