Lexus IS250-300 2010 — ABS & Vsc
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89180-53030 | SENSOR, YAWRATE | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 86650K | — |
| 89516-30020 | WIRE, SKID CONTROL SENSOR | 1 | |
Note:GSE2# Production:2010-08 – 2012-03 Replacements:89516-30150 (fitment: unknown) Spec:RH | |||
| 89516-30030 | WIRE, SKID CONTROL SENSOR | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 Spec:LH | |||
| 89545-30070 | SENSOR, SPEED, REAR RH | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 89516-22020 | WIRE, SKID CONTROL SENSOR, RH | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 89516-22040 | WIRE, SKID CONTROL SENSOR, LH | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 89546-30070 | SENSOR, SPEED, REAR LH | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 90987-04004 | RELAY, STOP LAMP CONTROL | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 89542 | — |
| — | Part does not apply to this vehicle configuration. | 89543 | — |
| 91553-80812 | standard | — | |
| 91551-80610 | standard | — | |
| 90179-06264 | standard | — | |
| 91551-A0616 | standard | — | |
| 91554-A0612 | standard | — | |

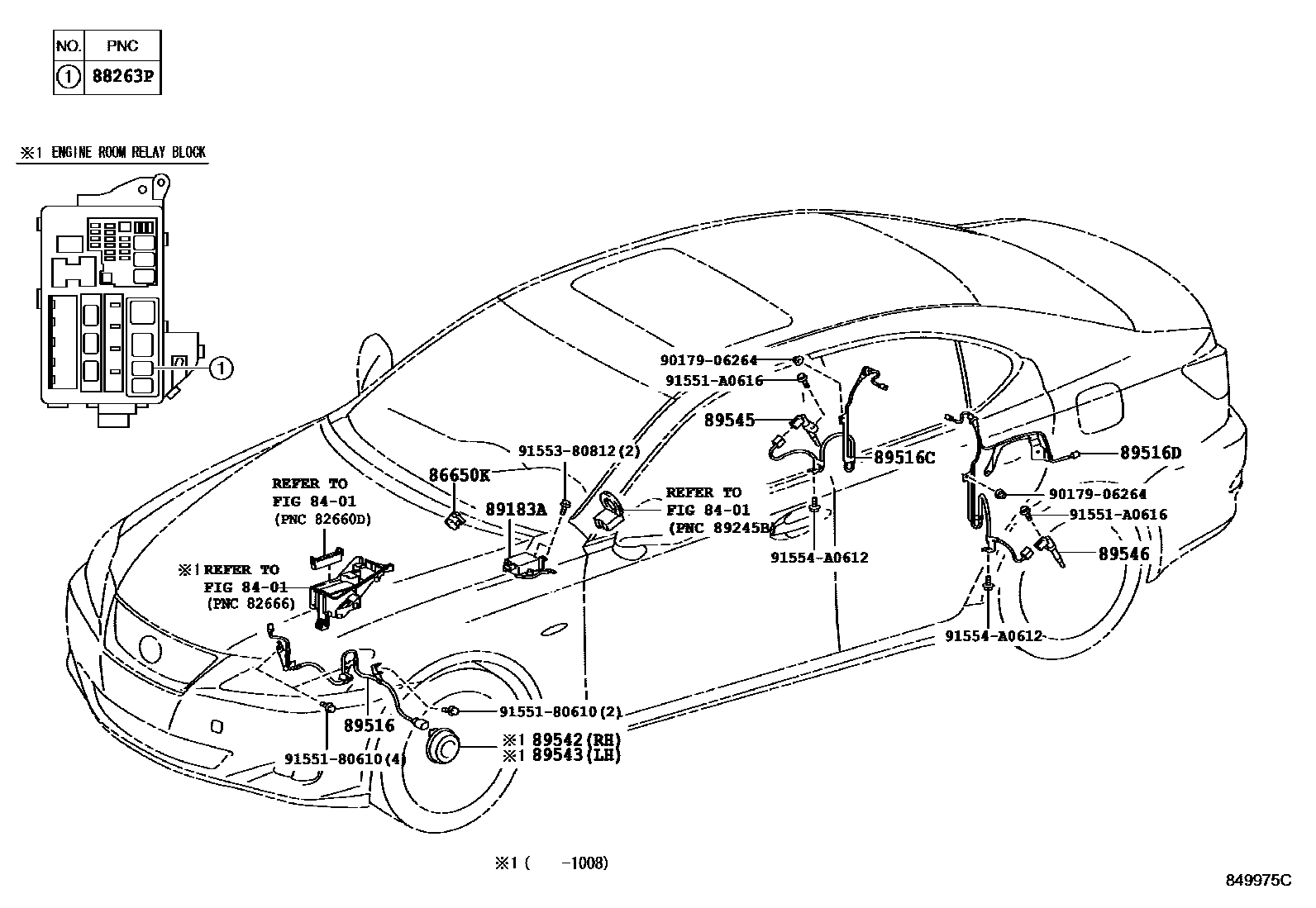

Diagram
13 parts
