Lexus IS250-300 2010 — Front Door Window Regulator & Hinge
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 68710-12151 | HINGE ASSY, FRONT DOOR, UPPER RH | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 68720-12151 | HINGE ASSY, FRONT DOOR, UPPER LH | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 68795-53010 | COVER, DOOR HINGE, NO.1 RH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 68796-53010 | COVER, DOOR HINGE, NO.1 LH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 68730-33021 | HINGE ASSY, FRONT DOOR, LOWER RH | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 68740-33021 | HINGE ASSY, FRONT DOOR, LOWER LH | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 69801-30260 | REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 69802-30260 | REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 85710-53050 | MOTOR ASSY, POWER WINDOW REGULATOR, RH | 1 | |
Note:GSE2# Production:2010-08 – 2012-09 Replacements:85710-53051 (fitment: unknown) | |||
| 85720-53050 | MOTOR ASSY, POWER WINDOW REGULATOR, LH | 1 | |
Note:GSE2# Production:2010-08 – 2012-09 Replacements:85720-53051 (fitment: unknown) | |||
| 90105-06260 | standard | — | |
| 90105-08291 | standard | — | |
| 90119-06984 | standard | — | |
| 90168-50040 | standard | — | |
| 91553-10818 | standard | — | |

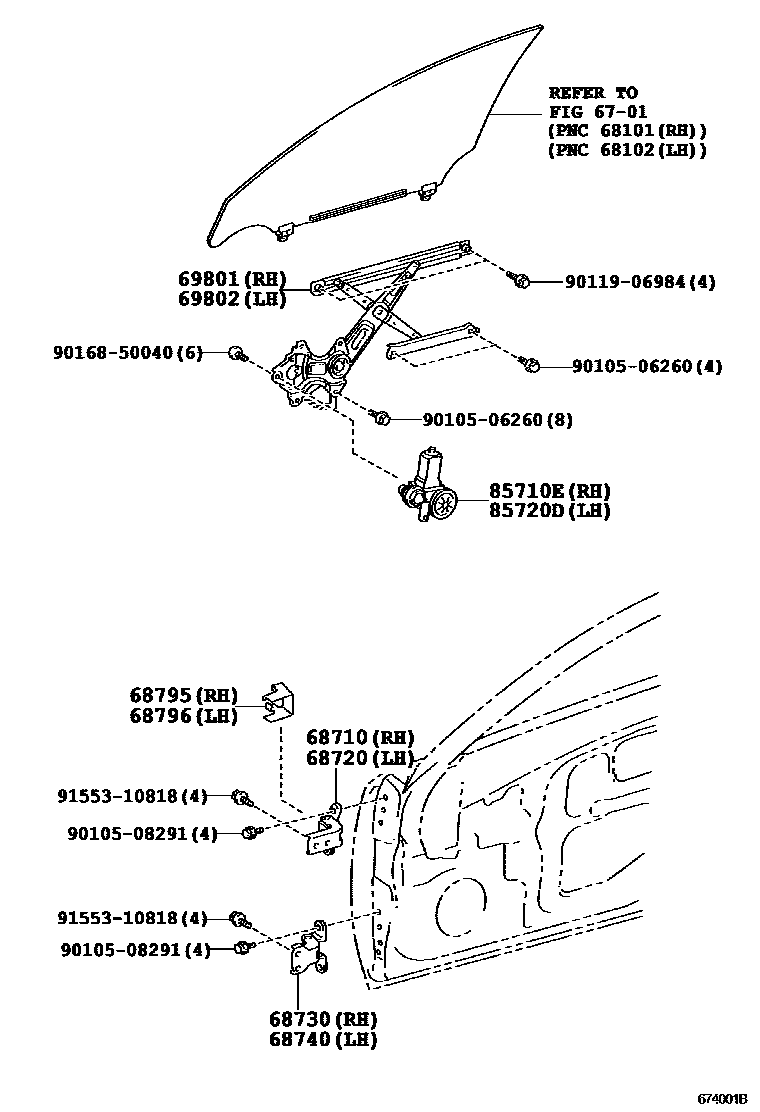

Diagram
15 parts
