Lexus IS2-3 2015 — Fuel Injection System
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 23803-31013 | PIPE SUB-ASSY, FUEL, NO.3 | 1 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23256-74010 | RING, FUEL INJECTOR BACK-UP, NO.1 | 6 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23257-74010 | RING, FUEL INJECTOR BACK-UP, NO.2 | 6 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23258-28011 | RING, FUEL PIPE, NO.3 | 3 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 90301-06018 | RING, O(FOR FUEL INJECTOR) | 6 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23695-31010 | CLAMP, NOZZLE HOLDER | 6 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23255-31010 | SEAL, FUEL INJECTOR | 12 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 20320-31010 | VALVE ASSY, FUEL RELIEF | 1 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 96137-51501 | CLAMP OR CLIP(FOR FUEL HOSE) | 2 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23209-31070 | INJECTOR ASSY, FUEL | 6 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 Spec:NO.2 | |||
| 23209-39155-A0 | INJECTOR ASSY, FUEL | 6 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 Spec:MARK YELLOW,NO.1 | |||
| 23209-39155-B0 | INJECTOR ASSY, FUEL | 6 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 Spec:MARK BLACK,NO.1 | |||
| 23209-39155-C0 | INJECTOR ASSY, FUEL | 6 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 Spec:MARK BROWN,NO.1 | |||
| 23209-39155-D0 | INJECTOR ASSY, FUEL | 6 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 Spec:MARK GREEN,NO.1 | |||
| 23808-31070 | PIPE SUB-ASSY, FUEL DELIVERY, NO.2 | 1 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 | |||
| 23258-28011 | RING, FUEL INJECTOR BACK-UP, NO.3 | 6 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23291-31011 | INSULATOR, INJECTOR VIBRATION | 6 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 22271-31020 | GASKET, THROTTLE BODY | 1 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 | |||
| 22030-31040 | BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | 1 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 | |||
| 23841-21050 | CLAMP, FUEL PIPE, NO.1(FOR EFI) | 2 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 | |||
| 23901-31310 | TUBE SUB-ASSY, FUEL | 1 | |
Note:2GRF..GSE31;4GRFSE..GSE30..GCC,GEN Production:2013-04 – 2015-08 | |||
| 23915-46011 | INSULATOR, FUEL PUMP | 1 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23273-31060 | HOSE, FUEL, NO.3 | 1 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 90301-06017 | RING, O, NO.2(FOR FUEL INJECTOR) | 6 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 | |||
| 23271-31060 | HOSE, FUEL, NO.1 | 1 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23812-31050 | PIPE, FUEL, NO.2 | 1 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23273-31050 | HOSE, FUEL, NO.2 | 1 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23207-31021 | DAMPER ASSY, FUEL PRESSURE PULSATION | 1 | |
Note:2GRF,4GRFSE..GSE3# Production:2014-05 – 2015-08 | |||
| 23802-31043 | PIPE SUB-ASSY, FUEL, NO.2 | 1 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23279-74010 | GASKET(FOR PULSATION DAMPER HOSE) | 2 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 | |||
| 23100-39645 | PUMP ASSY, FUEL (ENGINE ROOM SIDE) | 1 | |
Note:2GRF,4GRFSE..GSE3# Production:2013-04 – 2015-08 Replacements:23100-39646 (fitment: unknown) | |||
| 23807-31150 | PIPE SUB-ASSY, FUEL DELIVERY | 1 | |
Note:2GRF..GSE31 Production:2014-11 – 2015-08 | |||
| 90561-08023 | SPACER, NO.1(FOR DELIVERY PIPE) | 4 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 | |||
| 23902-31012 | TUBE SUB-ASSY, FUEL | 1 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 | |||
| 23850-31010 | PIPE ASSY, FUEL DELIVERY W/SENSOR, RH | 1 | |
Note:2GRF..GSE31 Production:2013-04 – 2015-08 | |||
| 91551-80620 | standard | — | |
| 90301-06016 | standard | — | |
| 90523-05007 | standard | — | |
| 94151-80800 | standard | — | |
| 91551-80845 | standard | — | |
| 90430-12026 | standard | — | |
| 91551-80650 | standard | — | |
| 91671-80835 | standard | — | |
| 91671-80616 | standard | — | |
| 90179-08206 | standard | — | |
| 90301-11029 | standard | — | |
| 96137-41301 | standard | — | |
| 96132-51300 | standard | — | |
| 96135-51300 | standard | — | |
| 90119-06980 | standard | — | |
| 90126-08048 | standard | — | |
| 90464-00558 | standard | — | |

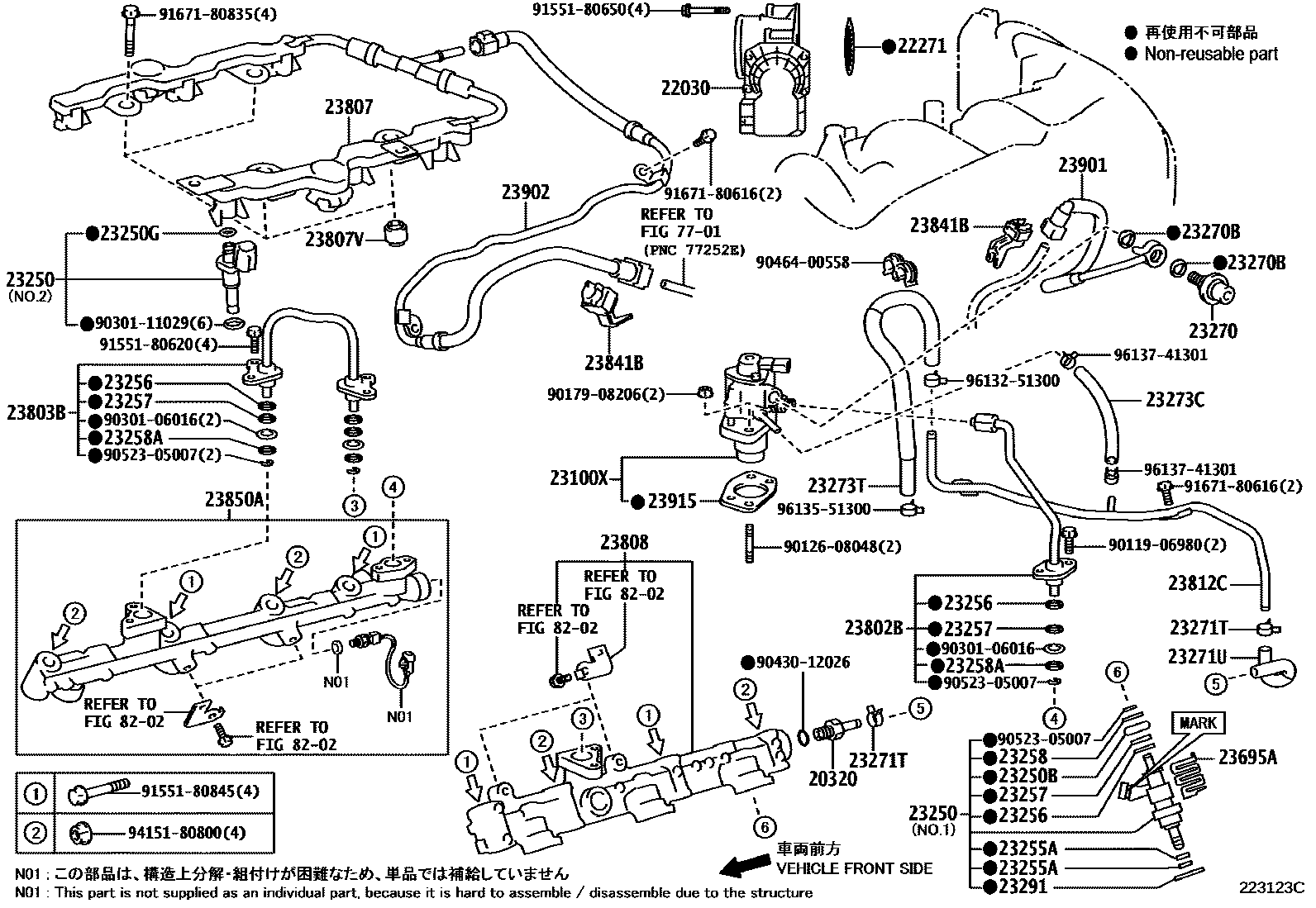

Diagram
52 parts
