Open RegionYearModelModelCode Details
Europe 2022 ES350 300H 2 AXZH10L-AEXGBW
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LC01 Production: 201807-202108 Model Short: AXZH10L-AEXGBW Region: EU Native Region: EU

Lexus ES350-300H-2 2022 — Front Door Lock & Handle

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
69415-60020 COVER, DOOR LOCK STRIKER, FRONT 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69410-33030 PLATE ASSY, FRONT DOOR LOCK STRIKER 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69318-51010 SEAL, DOOR LOCK WIRING HARNESS 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69030-48130 LOCK ASSY, FRONT DOOR W/MOTOR, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..EUR Production:2021-08 – 2025-12
69040-48110 LOCK ASSY, FRONT DOOR W/MOTOR, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..EUR Production:2021-08 – 2025-12
69035-30010 COVER SUB-ASSY, FRONT DOOR LOCK, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69036-30010 COVER SUB-ASSY, FRONT DOOR LOCK, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69311-33130 ROD, FRONT DOOR LOCK OPEN, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69312-33130 ROD, FRONT DOOR LOCK OPEN, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69710-33130 CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER) 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69710-33130 CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER) 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69750-33120 CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB) 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69750-33120 CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB) 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69275-30070 CUSHION(FOR FRONT DOOR INSIDE HANDLE) 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69270-50030 HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69280-50030 HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69217-50060 COVER, FRONT DOOR OUTSIDE HANDLE 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12 Spec:BLACK,PASSENGER SIDE ONLY
69210-33161-B3 HANDLE ASSY, FRONT DOOR, OUTSIDE RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:SONIC CHROME,1L1
69220-33071-B3 HANDLE ASSY, FRONT DOOR OUTSIDE, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:SONIC CHROME,1L1
69241-33040 PAD, FRONT DOOR OUTSIDE HANDLE, FRONT 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:RH
69242-33050 PAD, FRONT DOOR OUTSIDE HANDLE, FRONT 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:LH
69241-33050 PAD, FRONT DOOR OUTSIDE HANDLE, REAR 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:RH
69242-33060 PAD, FRONT DOOR OUTSIDE HANDLE, REAR 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:LH
69201-76040 FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH 1
Note:AXZH10..LHD..EUR;AXZH10..ARL,GCC,GEN;AXZA10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69202-33071 FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..EUR Production:2021-08 – 2025-12
69237-62010 NUT, FRONT DOOR HANDLE 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
69239-47010 BUSH, FRONT DOOR HANDLE 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90148-50006 SCREW, DOOR INSIDE HANDLE 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2022-04 – 2025-12
90148-80066 standard —
90148-60083 standard —
90164-40105 standard —
90148-50003 standard —

Diagram

32 parts

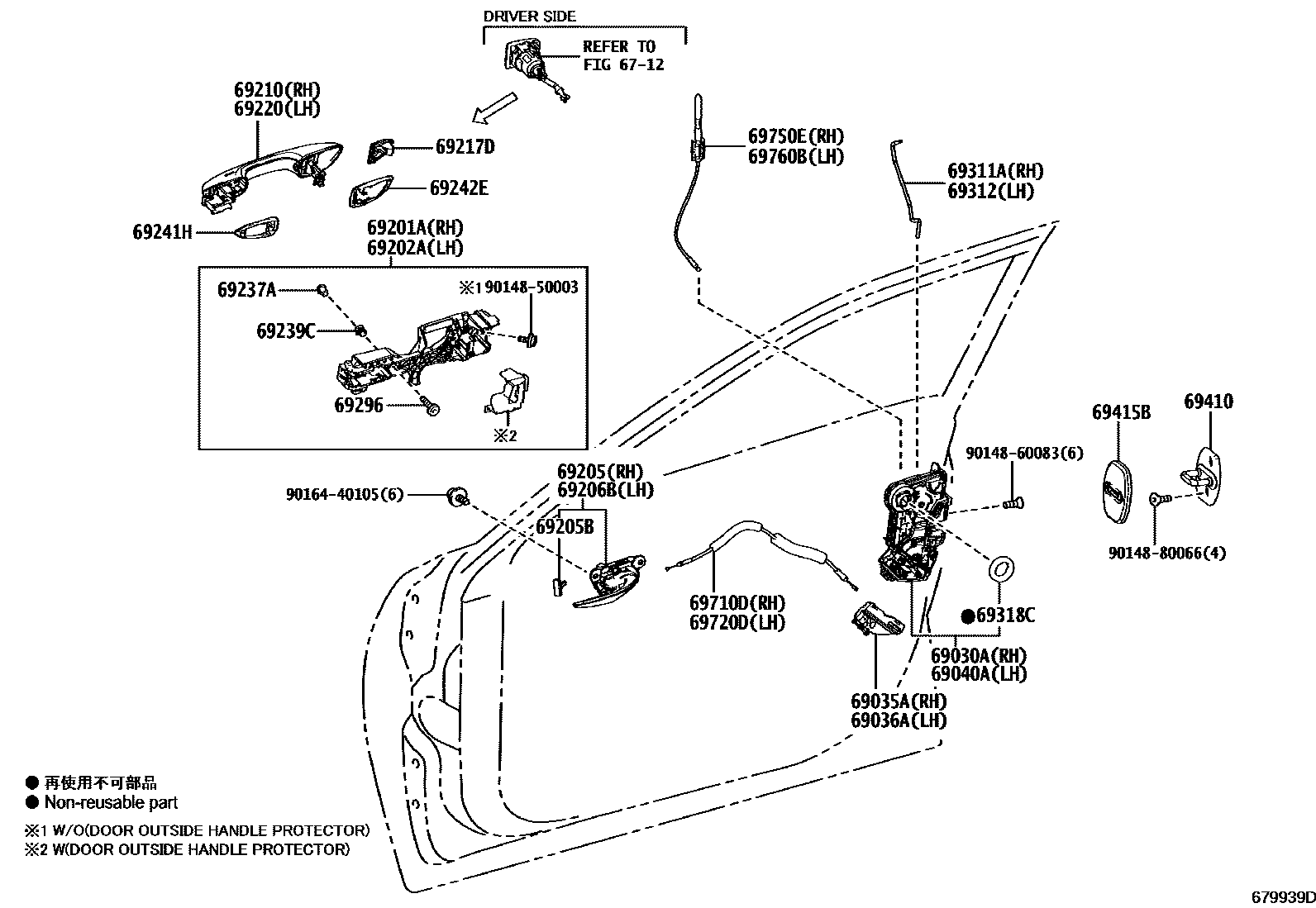

Lexus ES350-300H-2 2022 — Front Door Lock & Handle
