Open RegionYearModelModelCode Details
General 2021 ES350 300H 2 AXZH10L-AEXGBC
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Doors Description: 4-DOOR Color Code: 1J7 Trim Code: LA50 Production: 201807-202108 Model Short: AXZH10L-AEXGBC Region: OTHER Native Region: GR

Lexus ES350-300H-2 2021 — Interior Lamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
81080-33290 LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
81080-33290 LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
— Part does not apply to this vehicle configuration. 81080D —
— Part does not apply to this vehicle configuration. 81080E —
— Part does not apply to this vehicle configuration. 81080F —
— Part does not apply to this vehicle configuration. 81080G —
— Part does not apply to this vehicle configuration. 8130A —
81360-33100-E0 LAMP ASSY, SPOT 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Spec:NOBLE BROWN,TRIM5#,6#
81080-33290 LAMP ASSY, GLOVE BOX 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
81080-33290 LAMP ASSY, CONSOLE BOX ILLUMINATION 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
81080-30170 LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2019-01 – 2021-10
81080-30170 LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2019-01 – 2021-10
81340-50260 LAMP ASSY, VANITY 2
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
81330-33020 LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2021-05 – 2021-10 Replacements:81330-33021 (fitment: unknown)
81230-11030 LAMP ASSY, COURTESY 4
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
63654-33030 COVER, ROOF CONSOLE BOX, INNER 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
81208-76350-E0 LAMP SUB-ASSY, MAP 1
Note:AXZA10,AXZH10,MXZA10..CHI Production:2019-10 – 2021-08 Spec:NOBLE BROWN,TRIM5#,6#
— Part does not apply to this vehicle configuration. 81080J —
90467-09245 standard —
90467-10167 standard —
93560-54008 standard —
93560-54012 standard —

Diagram

16 parts

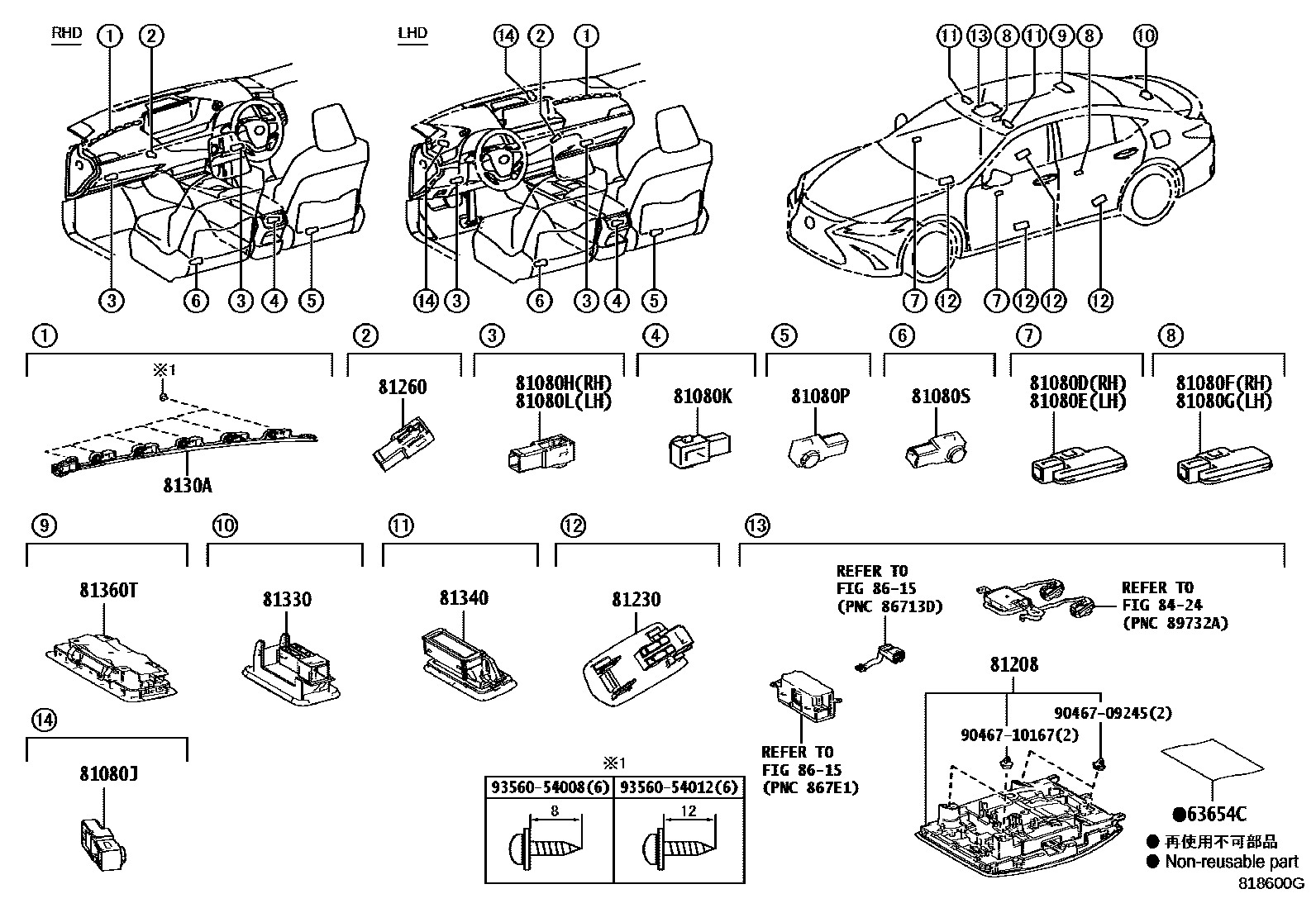

Lexus ES350-300H-2 2021 — Interior Lamp
