Open RegionYearModelModelCode Details
General 2021 ES350 300H 2 AXZH10L-AEXGBC
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Doors Description: 4-DOOR Color Code: 1J7 Trim Code: LA50 Production: 201807-202108 Model Short: AXZH10L-AEXGBC Region: OTHER Native Region: GR

Lexus ES350-300H-2 2021 — Horn

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
86570-33101 SPEAKER ASSY, VEHICLE APPROACHING 1
Note:AXZH10..CHI Production:2019-05 – 2021-08
— Part does not apply to this vehicle configuration. 86570A —
86510-33310 HORN ASSY, HIGH PITCHED 1
Note:AXZH10..CHI,GCC;AXZA10,MXZA10..LHD;ASZ10,GSZ10..EUR,GCC Production:2018-06 – 2021-08
86520-33170 HORN ASSY, LOW PITCHED 1
Note:AXZH10..CHI,GCC;AXZA10,MXZA10..LHD;ASZ10,GSZ10..EUR,GCC Production:2018-06 – 2021-08
86572-33150 CONTROLLER, VEHICLE APPROACHING SPEAKER 1
Note:AXZH10..CHI Production:2019-05 – 2021-08
86560-33060 HORN ASSY, SECURITY 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,GCC Production:2018-06 – 2021-08
90179-06274 standard —
90178-06026 standard —
90119-08718 standard —
91673-80616 standard —
90119-06A07 standard —

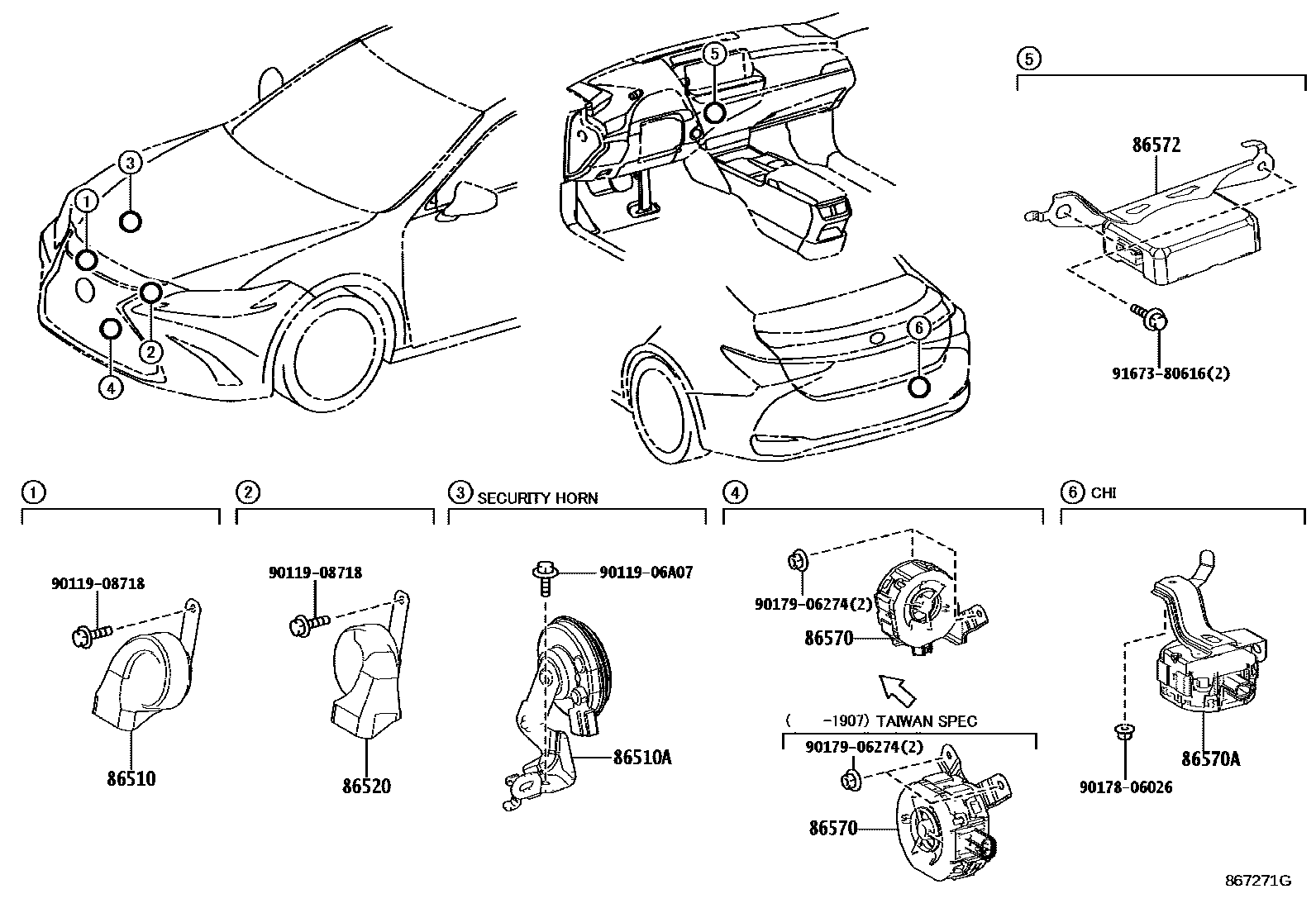

Diagram

10 parts
Lexus ES350-300H-2 2021 — Horn
