Open RegionYearModelModelCode Details
Europe 2021 ES350 300H 2 AXZH10L-AEXGBC
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Doors Description: 4-DOOR Color Code: 1J7 Trim Code: LA50 Production: 201807-202108 Model Short: AXZH10L-AEXGBC Region: EU Native Region: EU

Lexus ES350-300H-2 2021 — Clearance & Back Sonar

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
89343-48010 BUZZER, CLEARANCE WARNING, NO.1 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
89747-30040 BUZZER, CLEARANCE WARNING, NO.2 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
89340-33313 COMPUTER ASSY, CLEARANCE WARNING 1
Note:ASZ10,AXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,EUR,GEN Production:2020-08 – 2021-08
89348-58130 CLIP, ULTRASONIC SENSOR 4
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10
89341-33220-C4 SENSOR, ULTRASONIC, FRONT CENTER 2
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Spec:MAT BLACK
89341-33220-B4 SENSOR, ULTRASONIC, FRONT CORNER 2
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Spec:SONIC TITANIUM,1J7
89341-33220-B4 SENSOR, ULTRASONIC, REAR CENTER 2
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Spec:SONIC TITANIUM,1J7
89341-33220-B4 SENSOR, ULTRASONIC, REAR CORNER 2
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10 Spec:SONIC TITANIUM,1J7
89305-47010 CUSHION SET, ULTRASONIC SENSOR 1
Note:MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10 Production:2018-06 – 2021-10

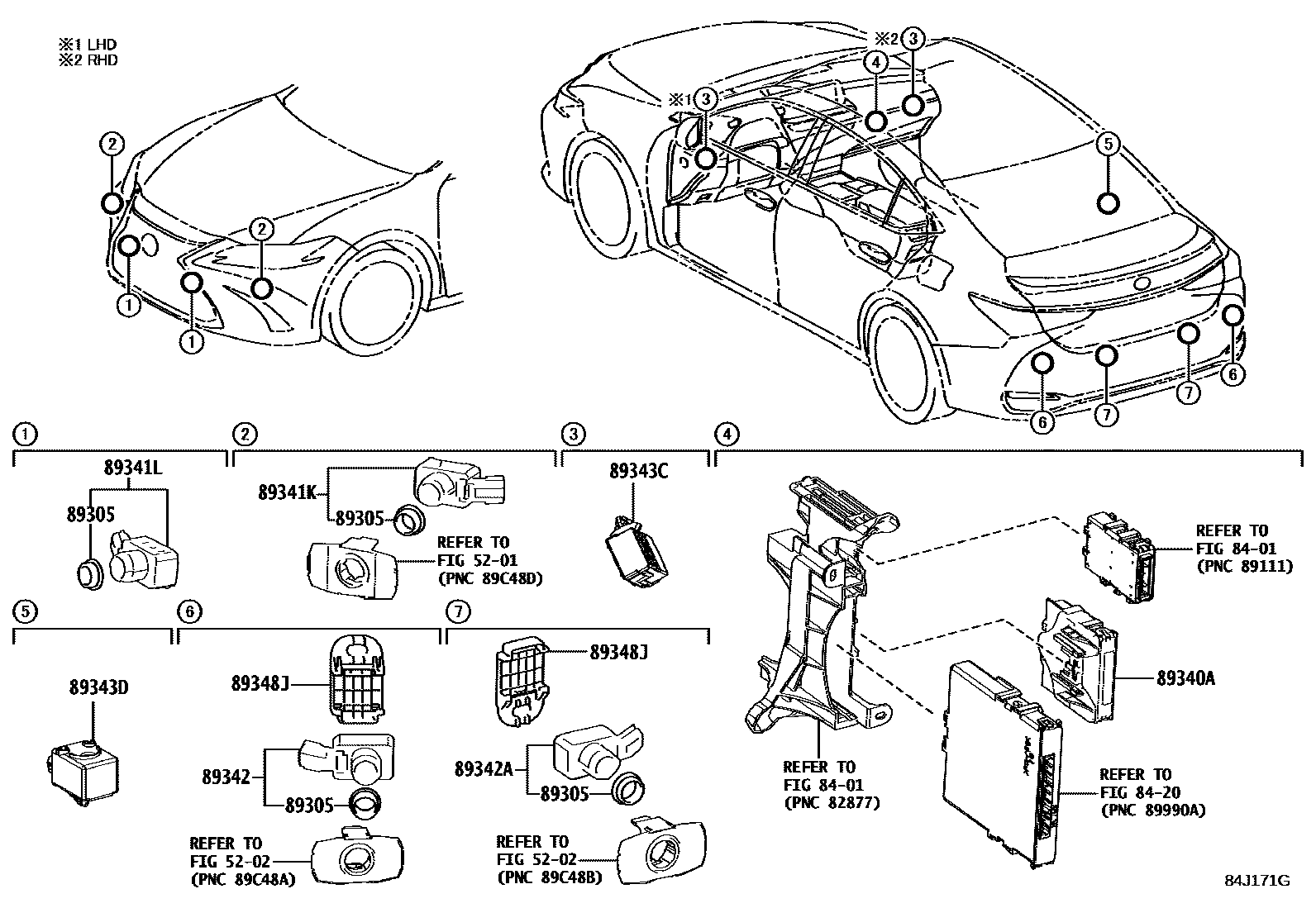

Diagram

9 parts
Lexus ES350-300H-2 2021 — Clearance & Back Sonar
