Europe 2022 ES350 300H 2 AXZH10L-AEXGBV
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LB41 Production: 201807-202108 Model Short: AXZH10L-AEXGBV Region: EU Native Region: EU

Lexus ES350-300H-2 2022 — Exhaust Pipe

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
17565-22040 SUPPORT, EXHAUST PIPE, NO.1 3
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12
17565-31040 SUPPORT, EXHAUST PIPE, NO.2 1
Note:A25AFKS,A25AFXS,M20AFKS..AXZA10,AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
17566-25010 SUPPORT, EXHAUST PIPE, NO.3 1
Note:A25AFKS,A25AFXS,M20AFKS..AXZA10,AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
17572-31150 BRACKET, EXHAUST PIPE SUPPORT, NO.2 1
Note:A25AFKS,A25AFXS,M20AFKS,2GRFKS..AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
17573-25010 BRACKET, EXHAUST PIPE SUPPORT, NO.3 1
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12
17575-31160 BRACKET, EXHAUST PIPE SUPPORT, NO.5 1
Note:A25AFXS,2GRFKS..AXZH10,GSZ10 Production:2021-08 – 2025-12
17577-31040 BRACKET, EXHAUST PIPE SUPPORT, NO.7 1
Note:A25AFXS,2GRFKS..AXZH10,GSZ10 Production:2021-08 – 2025-12
90917-06094 GASKET, EXHAUST PIPE 1
Note:A25AFKS,A25AFXS,M20AFKS..AXZA10,AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90917-06078 GASKET, EXHAUST PIPE, NO.2 1
Note:A25AFKS,A25AFXS,M20AFKS..AXZA10,AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90917-06090 GASKET, EXHAUST PIPE 1
Note:A25AFKS,A25AFXS,M20AFKS,2GRFKS..AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
17410-25191 PIPE ASSY, EXHAUST, FRONT 1
Note:A25AFXS..AXZH10..ARL,GCC,GEN Production:2021-08 – 2025-12 Spec:*114=TOYOTA/A53/Y Spec Note:*114(CATALYST MAKE/CATALYSTID/ONBOARD DIAGNOSIS:YES OR NO(THIS INDICATION COMPLIES WITH EC DIRECTIVE.))=TOYOTA/A53/Y
17420-25060 PIPE ASSY, EXHAUST, CENTER 1
Note:A25AFXS..AXZH10 Production:2021-08 – 2025-12
17440-25060 PIPE ASSY, EXHAUST, TAIL 1
Note:A25AFXS,A25BFXS..AXZH10 Production:2021-08 – 2022-08
90105-08488 standard —
90177-10005 standard —
90105-10585 standard —

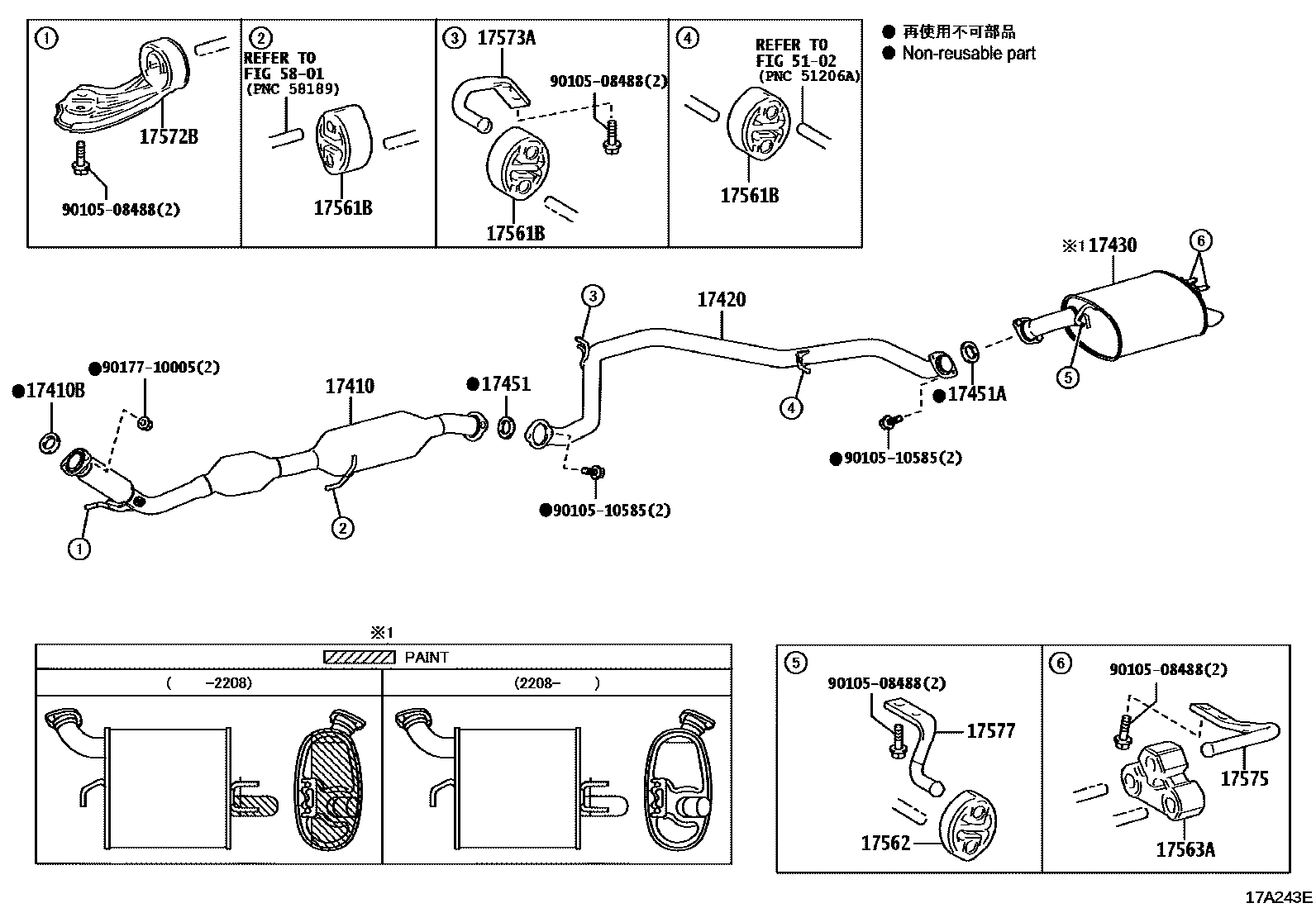

Diagram

16 parts
Lexus ES350-300H-2 2022 — Exhaust Pipe
