Lexus ES350-300H 2018 — Mirror
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 87931-33F20 | OUTER MIRROR, RH | 1 | |
Note:AXZH10 Production:2018-07 – 2019-09 Replacements:87931-33F21 (fitment: unknown) Spec:KOREA SPEC&BLIND SPOT MONITOR-WITH | |||
| 87961-33F20 | MIRROR OUTER, LH | 1 | |
Note:AXZH10 Production:2018-07 – 2019-09 Replacements:87961-33F21 (fitment: unknown) Spec:KOREA SPEC&BLIND SPOT MONITOR-WITH | |||
| 87908-33G50-E0 | RETRACTOR, OUTER MIRROR, RH | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC&BLIND SPOT MONITOR-WITH,ICE ECRU M.M.,4X8 | |||
| 87909-33G50-E0 | RETRACTOR, OUTER MIRROR, LH | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC&BLIND SPOT MONITOR-WITH,ICE ECRU M.M.,4X8 | |||
| 8791A-11020-E2 | COVER, OUTER MIRROR, RH NO.2 | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … Spec:ICE ECRU M.M.,4X8 | |||
| 8794A-11020-E2 | COVER, OUTER MIRROR, LH NO.2 | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … Spec:ICE ECRU M.M.,4X8 | |||
| 87917-50700 | SCREW, OUTER MIRROR | 8 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 87910-33F20-E0 | MIRROR ASSY, OUTER REAR VIEW, RH | 1 | |
Note:AXZH10 Production:2018-07 – 2019-08 Replacements:87910-33F21-E0 (fitment: unknown) Spec:KOREA SPEC&BLIND SPOT MONITOR-WITH,ICE ECRU M.M.,4X8 | |||
| 87940-33F20-E0 | MIRROR ASSY, OUTER REAR VIEW, LH | 1 | |
Note:AXZH10 Production:2018-07 – 2019-08 Replacements:87940-33F21-E0 (fitment: unknown) Spec:KOREA SPEC&BLIND SPOT MONITOR-WITH,ICE ECRU M.M.,4X8 | |||
| 87810-0WP60 | MIRROR ASSY, INNER REAR VIEW | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC&AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB | |||
| 90179-06146 | standard | — | |
| 87917-50830 | standard | — | |

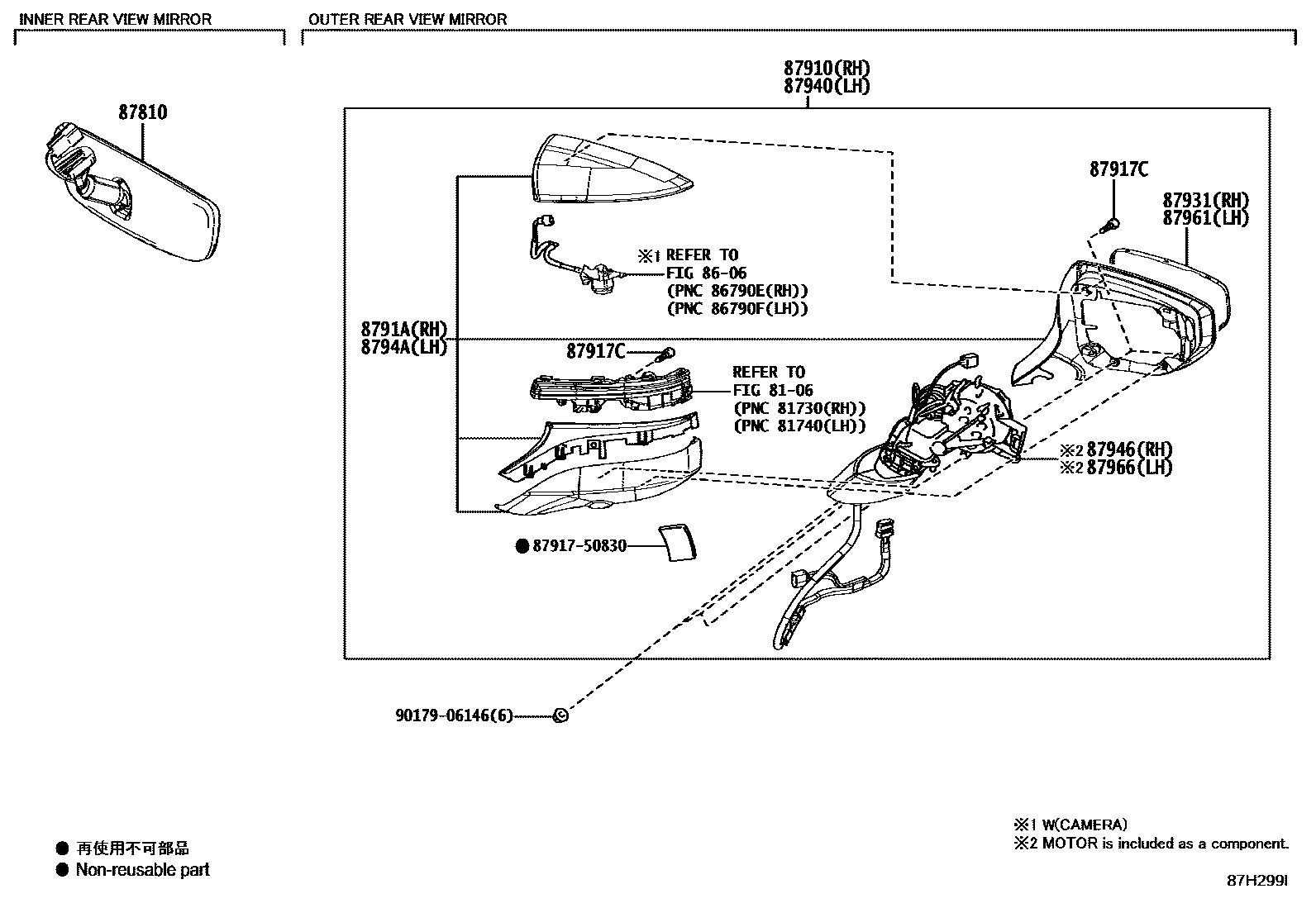

Diagram
12 parts
